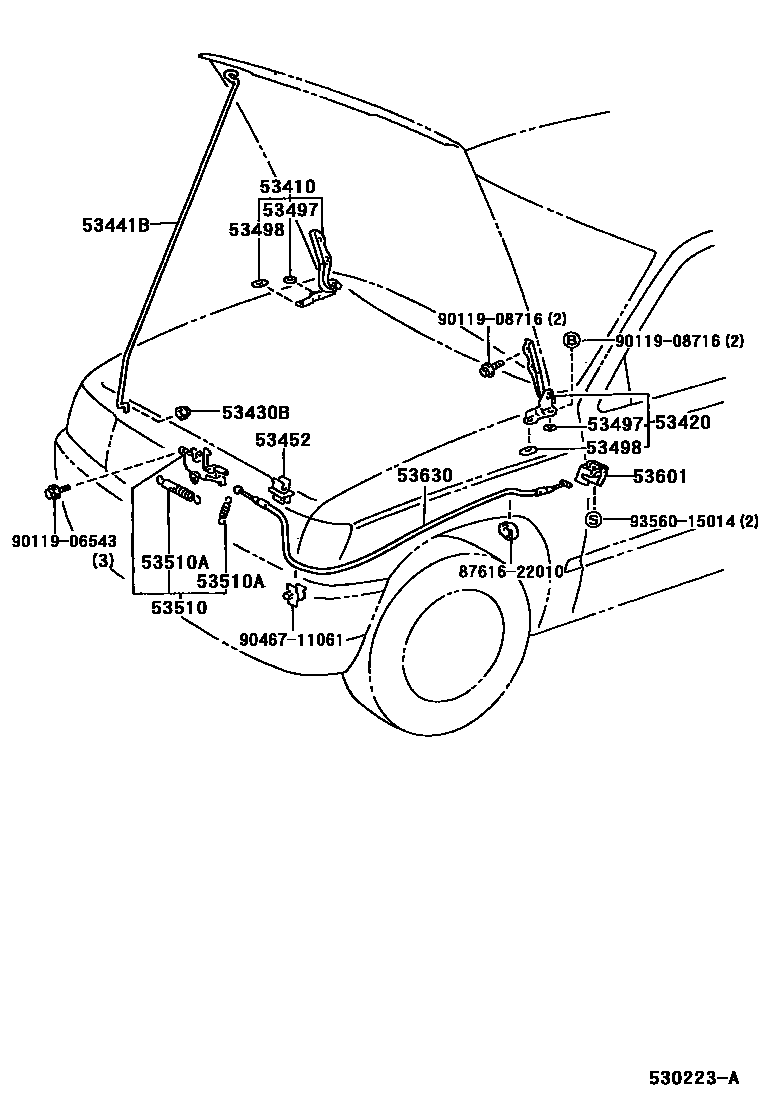

Toyota 4RUNNER — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53430BGROMMET(FOR HOOD SUPPORT)
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
53498PAD, HOOD HINGE, NO.2
53510LOCK ASSY, HOOD
W(THEFT-DETERRENT SYSTEM)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=2.0,CW=17
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
MD.MOON MIST,TRIM1#
DK.CHARCOAL,TRIM1#
OAK,TRIM4#
SANDAL WOOD,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
8761622010CLAMP, COOLING UNIT CASE
main87616-22010
9011906543
main90119-06543
9011908716
main90119-08716
9046711061
main90467-11061
9356015014
main93560-15014
16 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota 4RUNNER
This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota 4RUNNER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, GROMMET(FOR HOOD SUPPORT), SUPPORT, HOOD, HOLDER, HOOD STAY.
