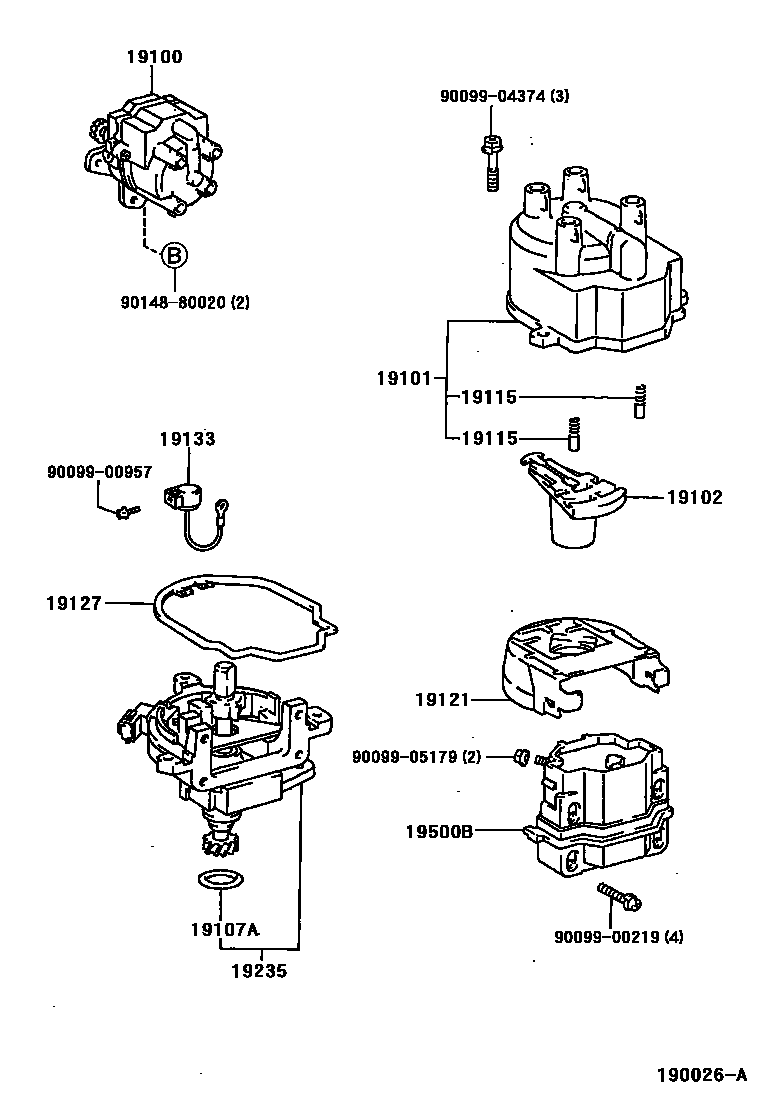

Toyota 4RUNNER — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19050-75020i3RZFE..RZN18#199511-199608

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-75010i3RZFE..RZN18#199511-199608

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16010i3RZFE..RZN18#199511-199608

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14127i3RZFE..RZN18#199511-199608

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i3RZFE..RZN18#199511-199608

19121COVER, DUST PROOF

main19121-11080i3RZFE..RZN18#199511-199608

19127PACKING, DUST PROOF

main19127-15120i3RZFE..RZN18#199511-199608

19133CONDENSER, DISTRIBUTOR

main19133-16240i3RZFE..RZN18#199511-199608

19235HOUSING, DISTRIBUTOR

main19235-75060i3RZFE..RZN18#199511-199608

19500BCOIL ASSY, IGNITION

main90919-02163i3RZFE..RZN18#199511-199608

main90919-02237×4i3RZFE..RZN18#199908-200008

9009900219

main90099-00219

9009900957

main90099-00957

9009904374

main90099-04374

9009905179

main90099-05179

9014880020

main90148-80020

15 parts on this diagram · 2 diagrams in section
