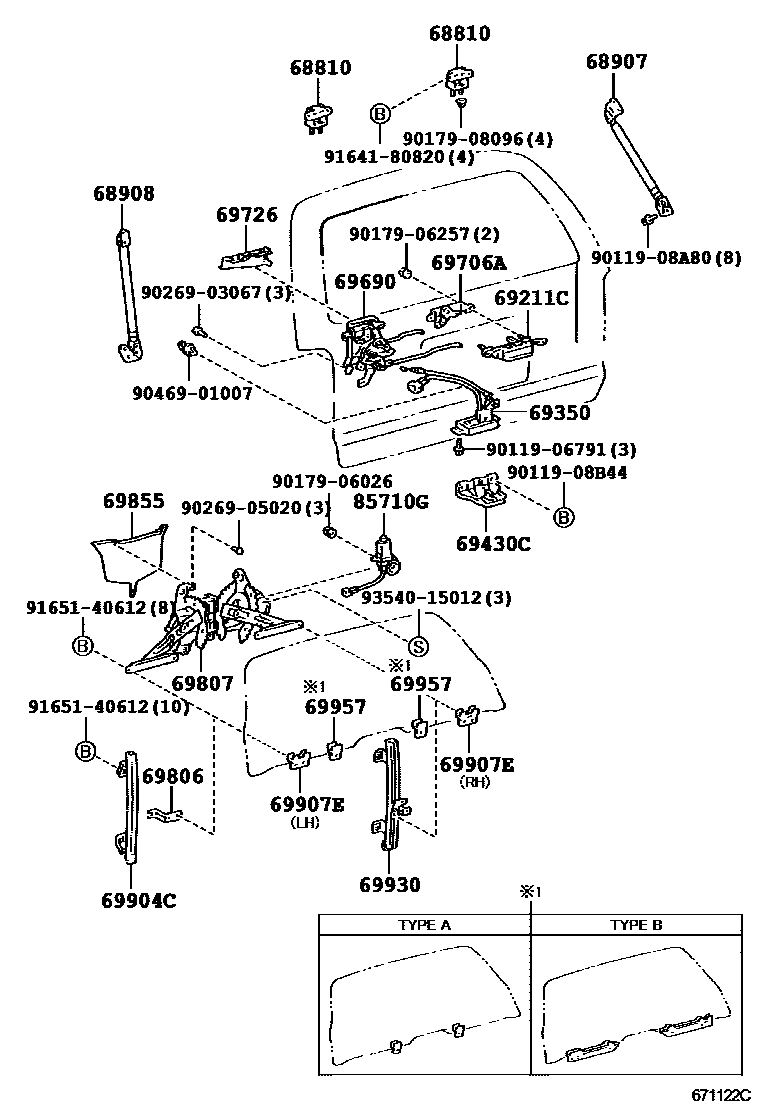

Toyota 4RUNNER — BACK DOOR LOCK & HINGE
68810HINGE ASSY, BACK DOOR, UPPER
RH
LH
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
COLD SPEC
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
LABEL COLOR=SILVER
W(BATTERY=95D31L)
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69690CONTROL ASSY, BACK DOOR REMOTE
W(THEFT-DETERRENT SYSTEM)
69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69726PROTECTOR, BACK DOOR LOCK CONTROL
69806BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE
69807REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW
69855COVER, DOOR WINDOW REGULATOR GEAR
69904CRAIL SUB-ASSY, BACK DOOR GLASS GUIDE, LH
69907ECHANNEL SUB-ASSY, BACK DOOR GLASS
L=100,RH,TYPE A:REF.ILL.
L=100,RH,TYPE A:REF.ILL.
L=295,RH,TYPE B:REF.ILL.
RH,TYPE B:REF.ILL.
L=100,LH,TYPE A:REF.ILL.
L=295,LH,TYPE B:REF.ILL.
69930RAIL ASSY, BACK DOOR GLASS GUIDE, RH
69957CHANNEL, BACK DOOR GLASS
TYPE A:REFER ILLUST.
85710GMOTOR ASSY, POWER WINDOW REGULATOR, RH
9011906791
main90119-06791
9011908A80
main90119-08A80
9011908B44
main90119-08B44
9017906026
main90179-06026
9017906257
main90179-06257
9017908096
main90179-08096
9026903067
main90269-03067
9026905020
main90269-05020
9046901007
main90469-01007
9164180820
main91641-80820
9165140612
main91651-40612
9354015012
main93540-15012
29 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HINGE for Toyota 4RUNNER
This section contains 29 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota 4RUNNER. Key components include: HINGE ASSY, BACK DOOR, UPPER, STAY SUB-ASSY, BACK DOOR DAMPER, RH, STAY SUB-ASSY, BACK DOOR DAMPER, LH, HANDLE, BACK DOOR OUTSIDE, LOCK ASSY, BACK DOOR.
