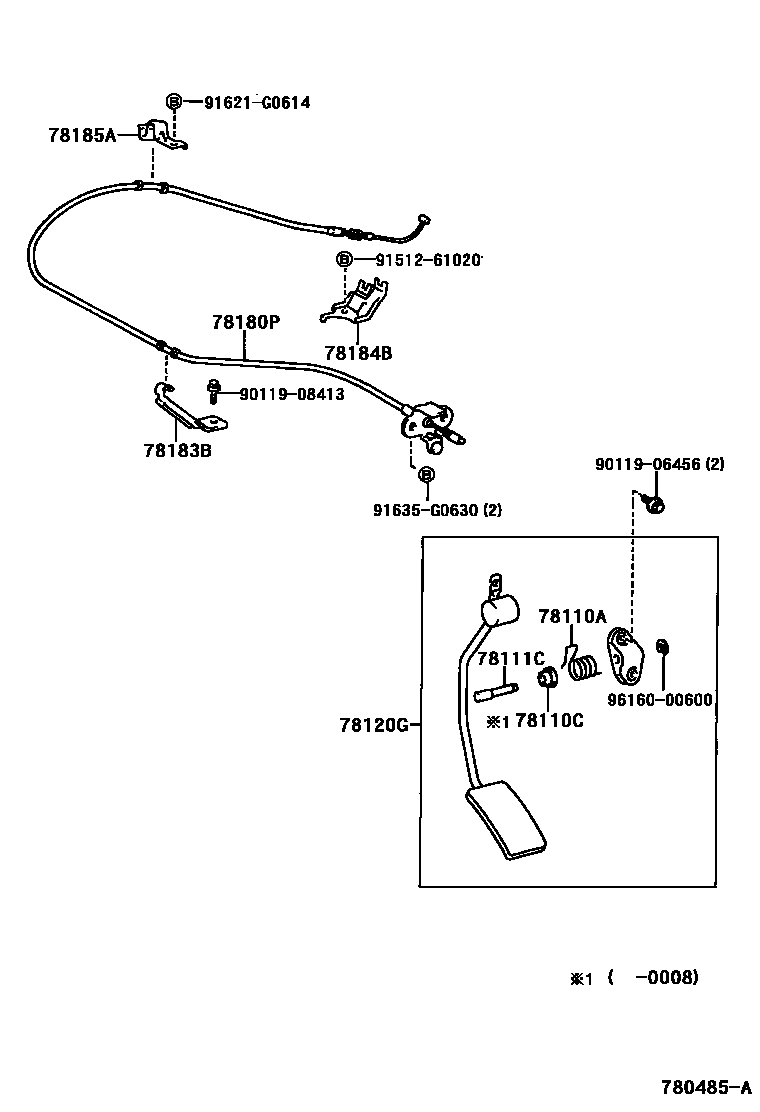

Toyota 4RUNNER — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03046iRZN18#,VZN18#..4FC199511-200008

main90959-03087iRZN18#,VZN185..5F199511-200008

main90959-03294iVZN18#200008-200208

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-12022iRZN18#,VZN18#199511-200208

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-08066iRZN18#,VZN18#199511-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78120-35240iVZN185..5F199511-200008

main78120-35260iVZN18#..4FC199511-200008

main78120-35270iRZN18#..5F199511-199807

main78120-35280iRZN18#..4FC199511-199807

main78120-35330iRZN18#..5F199807-200008

main78120-35340iRZN18#..4FC199807-200008

main78120-35400iVZN18#200008-200208

sub78120-35401

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-35240iRZN18#199511-199708

W(CRUISE CONTROL)

main78180-35250iRZN18#199511-200008

main78180-35260iVZN18#199511-200008

main78180-35410iRZN18#199708-200008

W(CRUISE CONTROL)

main78180-35470iVZN18#200008

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-35030iVZN18#199511-200008

main78183-35050iVZN18#200008

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-35080iVZN18#199511-200008

main78184-35140iVZN18#200008

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-35050iVZN18#199511

9011906456

main90119-06456

9011908413

main90119-08413

9151261020

main91512-61020

91621G0614

main91621-G0614

91635G0630

main91635-G0630

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section
