Toyota 4-RUNNER TRUCK — SEAT BELT

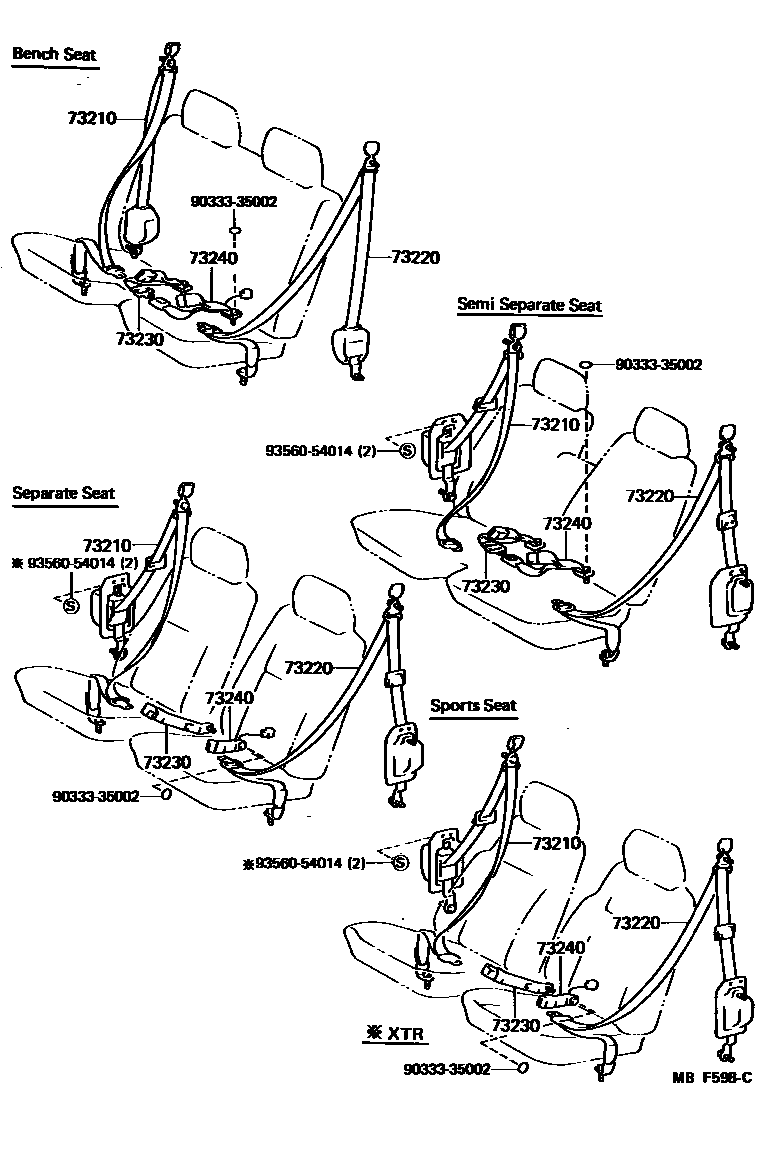

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-89132-03i198308-198508
GRAY,GRAY,TRIM1#
main73210-89132-04i198308-198508
BLUE,BLUE,TRIM8#
main73210-89132-06i198308-198508
BROWN,BROWN,TRIM4#
main73210-89133-03i198501-198508
GRAY,GRAY,TRIM1#; W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73210-89133-04i198501-198508
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73210-89133-06i198501-198508
BROWN,BROWN,TRIM4#; W/SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73210-89135-03i198403-198508
GRAY,GRAY,TRIM1#
main73210-89135-04i198403-198508
BLUE,BLUE,TRIM8#
main73210-89135-06i198403-198508
BROWN,BROWN,TRIM4#
main73210-89138-03i198501-198508
W/SEMI SEPARATE SEAT,GRAY,LIGHT GRAY,TRIM1#
main73210-89138-04i198501-198508
W/SEMI SEPARATE SEAT,BLUE,LIGHT BLUE,TRIM8#
main73210-89138-06i198501-198508
W/SEMI SEPARATE SEAT,BROWN,LIGHT BROWN,TRIM4#
main73210-89139-03i198508-198608
GRAY,GRAY,TRIM1#
main73210-89139-04i198508-198608
BLUE,BLUE,TRIM8#
main73210-89139-06i198508-198608
BROWN,BROWN,TRIM4#
main73210-89141-03i198508-198608
GRAY,GRAY,TRIM1#
main73210-89141-04i198508-198608
BLUE,BLUE,TRIM8#
main73210-89141-06i198508-198608
BROWN,BROWN,TRIM4#
main73210-89144-03i198508-198608
GRAY,GRAY,TRIM1#
main73210-89144-04i198508-198608
BLUE,BLUE,TRIM8#
main73210-89144-06i198508-198608
BROWN,BROWN,TRIM4#
main73210-89168-02i198608-198708
RED,RED,TRIM3#
main73210-89168-03i198608-198708
GRAY,GRAY,TRIM1#
main73210-89168-04i198608-198708
BLUE,BLUE,TRIM8#
main73210-89168-05i198608-198708
BEIGE,BEIGE,TRIM4#
main73210-89169-02i198608-198708
RED,RED,TRIM3#
main73210-89169-03i198608-198708
GRAY,GRAY,TRIM1#
main73210-89169-04i198608-198708
BLUE,BLUE,TRIM8#
main73210-89169-05i198608-198708
BEIGE,BEIGE,TRIM4#
main73210-89170-02i198608-198708
RED,RED,TRIM3#
main73210-89170-03i198608-198708
GRAY,GRAY,TRIM1#
main73210-89170-05i198608-198708
BEIGE,BEIGE,TRIM4#
main73210-89175-02i198708-198903
RED,RED,TRIM3#
main73210-89175-03i198708-198808
GRAY,GRAY,TRIM1#
main73210-89175-04i198708-198808
BLUE,BLUE,TRIM8#
main73210-89175-05i198708-198808
BEIGE,BEIGE,TRIM4#
main73210-89176-02i198708-198808
RED,RED,TRIM3#
main73210-89176-03i198708-198808
GRAY,GRAY,TRIM1#
main73210-89176-04i198708-198808
BLUE,BLUE,TRIM8#
main73210-89176-05i198708-198808
BEIGE,BEIGE,TRIM4#
main73210-89177-02i198708-198903
RED,RED,TRIM3#
main73210-89177-03i198708-198903
GRAY,GRAY,TRIM1#
main73210-89177-05i198708-198903
BEIGE,BEIGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-89104-03i198312-198508
GRAY,GRAY,TRIM1#
main73220-89104-04i198312-198508
BLUE,BLUE,TRIM8#
main73220-89104-06i198312-198508
BROWN,BROWN,TRIM4#
main73220-89105-03i198309-198508
GRAY,GRAY,TRIM1#
main73220-89105-04i198309-198508
BLUE,BLUE,TRIM8#
main73220-89105-06i198309-198508
BROWN,BROWN,TRIM4#
main73220-89106-03i198403-198508
GRAY,GRAY,TRIM1#
main73220-89106-04i198403-198508
BLUE,BLUE,TRIM8#
main73220-89106-06i198403-198508
BROWN,BROWN,TRIM4#
main73220-89107-03i198408-198508
W/BENCH SEAT,GRAY,GRAY,TRIM1#
main73220-89107-04i198312-198408
BLUE,BLUE,TRIM8#
main73220-89107-06i198312-198408
BROWN,BROWN,TRIM4#
main73220-89109-03i198508-198608
GRAY,GRAY,TRIM1#
main73220-89109-04i198508-198608
BLUE,BLUE,TRIM8#
main73220-89109-06i198508-198608
BROWN,BROWN,TRIM4#
main73220-89110-03i198508-198608
GRAY,GRAY,TRIM1#
main73220-89110-04i198508-198608
BLUE,BLUE,TRIM8#
main73220-89110-06i198508-198608
BROWN,BROWN,TRIM4#
main73220-89112-03i198508-198608
GRAY,GRAY,TRIM1#
main73220-89112-04i198508-198608
BLUE,BLUE,TRIM8#
main73220-89112-06i198508-198608
BROWN,BROWN,TRIM4#
main73220-89114-03i198508-198608
GRAY,GRAY,TRIM1#
main73220-89114-04i198508-198608
BLUE,BLUE,TRIM8#
main73220-89114-06i198508-198608
BROWN,BROWN,TRIM4#
main73220-89122-02i198608-198708
W/SEPARATE SEAT,RED,RED,TRIM3#
main73220-89122-03i198608-198708
GRAY,GRAY,TRIM1#; W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73220-89122-04i198608-198708
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73220-89122-05i198608-198708
BEIGE,BEIGE,TRIM4#; W/SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
main73220-89123-03i198608-198708
GRAY,GRAY,TRIM1#
main73220-89123-04i198608-198708
BLUE,BLUE,TRIM8#
main73220-89123-05i198608-198708
BEIGE,BEIGE,TRIM4#
main73220-89124-02i198608-198708
RED,RED,TRIM3#
main73220-89124-03i198608-198708
GRAY,GRAY,TRIM1#
main73220-89124-04i198608-198708
BLUE,BLUE,TRIM8#
main73220-89124-05i198608-198708
BEIGE,BEIGE,TRIM4#
main73220-89125-02i198608-198708
RED,RED,TRIM3#
main73220-89125-03i198608-198708
GRAY,GRAY,TRIM1#
main73220-89125-05i198608-198708
BEIGE,BEIGE,TRIM4#
main73220-89130-02i198708-198808
W/SEPARATE SEAT,RED,RED,TRIM3#
main73220-89130-03i198708-198808
GRAY,GRAY,TRIM1#; W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73220-89130-04i198708-198808
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73220-89130-05i198708-198808
BEIGE,BEIGE,TRIM4#; W/SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
main73220-89131-03i198708-198808
GRAY,GRAY,TRIM1#
main73220-89131-04i198608-198708
BLUE,BLUE,TRIM8#
main73220-89131-05i198708-198808
BEIGE,BEIGE,TRIM4#
main73220-89132-02i198708-198808
RED,RED,TRIM3#
main73220-89132-03i198708-198808
GRAY,GRAY,TRIM1#
main73220-89132-04i198708-198808
BLUE,BLUE,TRIM8#
main73220-89132-05i198708-198808
BEIGE,BEIGE,TRIM4#
main73220-89133-02i198708-198903
RED,RED,TRIM3#
main73220-89133-03i198708-198903
GRAY,GRAY,TRIM1#
main73220-89133-05i198708-198903
BEIGE,BEIGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-89134-03i198408-198508
W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73230-89134-04i198408-198508
W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73230-89134-06i198408-198508
W/SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73230-89134-13i198508-198608
GRAY,GRAY,TRIM1#; W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73230-89134-14i198508-198608
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73230-89134-16i198508-198608
BROWN,BROWN,TRIM4#; W/SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73230-89135-03i198308-198408
GRAY,GRAY,TRIM1#
main73230-89135-04i198408-198501
W/BENCH SEAT,BLUE,BLUE,TRIM8#
main73230-89135-06i198408-198501
W/BENCH SEAT,BROWN,BROWN,TRIM4#
main73230-89140-03i198501-198508
W/BENCH SEAT,GRAY,LIGHT GRAY,TRIM1#; W/SEMI SEPARATE SEAT,GRAY,LIGHT GRAY,TRIM1#
main73230-89140-04i198501-198508
W/BENCH SEAT,BLUE,LIGHT BLUE,TRIM8#; W/SEMI SEPARATE SEAT,BLUE,LIGHT BLUE,TRIM8#
main73230-89140-06i198501-198508
W/BENCH SEAT,BROWN,LIGHT BROWN,TRIM4#; W/SEMI SEPARATE SEAT,BROWN,LIGHT BROWN,TRIM4#
main73230-89140-13i198508-198608
GRAY,GRAY,TRIM1#; W/BENCH SEAT,GRAY,GRAY,TRIM1#; W/SEMI SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73230-89140-14i198508-198608
BLUE,BLUE,TRIM8#; W/BENCH SEAT,BLUE,BLUE,TRIM8#; W/SEMI SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73230-89140-16i198508-198608
BROWN,BROWN,TRIM4#; W/BENCH SEAT,BROWN,BROWN,TRIM4#; W/SEMI SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73230-89153-02i198608-198808
RED,RED,TRIM3#
main73230-89153-03i198608-198808
GRAY,GRAY,TRIM1#
main73230-89153-04i198708-198808
BLUE,BLUE,TRIM8#
main73230-89153-05i198708-198808
BEIGE,BEIGE,TRIM4#
main73230-89158-02i198608-198808
W/SEPARATE SEAT,RED,RED,TRIM3#
main73230-89158-03i198608-198903
GRAY,GRAY,TRIM1#
main73230-89158-04i198708-198808
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73230-89158-05i198708-198808
BEIGE,BEIGE,TRIM4#; W/SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-89126-03i198408-198508
W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73240-89126-04i198408-198508
W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73240-89126-06i198408-198508
W/SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73240-89126-13i198508-198608
GRAY,GRAY,TRIM1#; W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73240-89126-14i198508-198608
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73240-89126-16i198508-198608
BROWN,BROWN,TRIM4#; W/SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73240-89127-03i198408-198501
W/BENCH SEAT,GRAY,GRAY,TRIM1#
main73240-89127-04i198308-198408
BLUE,BLUE,TRIM8#
main73240-89127-06i198408-198501
W/BENCH SEAT,BROWN,BROWN,TRIM4#
main73240-89133-03i198501-198508
W/BENCH SEAT,GRAY,LIGHT GRAY,TRIM1#; W/SEMI SEPARATE SEAT,GRAY,LIGHT GRAY,TRIM1#
main73240-89133-04i198501-198508
W/BENCH SEAT,BLUE,LIGHT BLUE,TRIM8#; W/SEMI SEPARATE SEAT,BLUE,LIGHT BLUE,TRIM8#
main73240-89133-06i198501-198508
W/BENCH SEAT,BROWN,LIGHT BROWN,TRIM4#; W/SEMI SEPARATE SEAT,BROWN,LIGHT BROWN,TRIM4#
main73240-89133-13i198508-198608
GRAY,GRAY,TRIM1#; W/BENCH SEAT,GRAY,GRAY,TRIM1#; W/SEMI SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73240-89133-14i198508-198608
BLUE,BLUE,TRIM8#; W/BENCH SEAT,BLUE,BLUE,TRIM8#; W/SEMI SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73240-89133-16i198508-198608
BROWN,BROWN,TRIM4#; W/BENCH SEAT,BROWN,BROWN,TRIM4#; W/SEMI SEPARATE SEAT,BROWN,BROWN,TRIM4#
main73240-89144-02i198608-198808
W/SEPARATE SEAT,RED,RED,TRIM3#
main73240-89144-03i198708-198808
GRAY,GRAY,TRIM1#; W/SEPARATE SEAT,GRAY,GRAY,TRIM1#
main73240-89144-04i198708-198808
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73240-89144-05i198708-198808
BEIGE,BEIGE,TRIM4#; W/SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
main73240-89145-02i198708-198808
W/SEPARATE SEAT,RED,RED,TRIM3#
main73240-89145-03i198608-198808
GRAY,GRAY,TRIM1#
main73240-89145-04i198708-198808
BLUE,BLUE,TRIM8#; W/SEPARATE SEAT,BLUE,BLUE,TRIM8#
main73240-89145-05i198708-198808
BEIGE,BEIGE,TRIM4#; W/SEPARATE SEAT,BEIGE,BEIGE,TRIM4#
9033335002
main90333-35002
9356054014
main93560-54014

6 parts on this diagram · 2 diagrams in section

SEAT BELT for Toyota 4-RUNNER TRUCK

This section contains 13 genuine Toyota parts for the SEAT BELT system of the Toyota 4-RUNNER TRUCK. Key components include: BELT SET, REAR SEAT 3 POINT TYPE, RH, BELT SET, REAR SEAT 3 POINT TYPE, LH, BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH.
