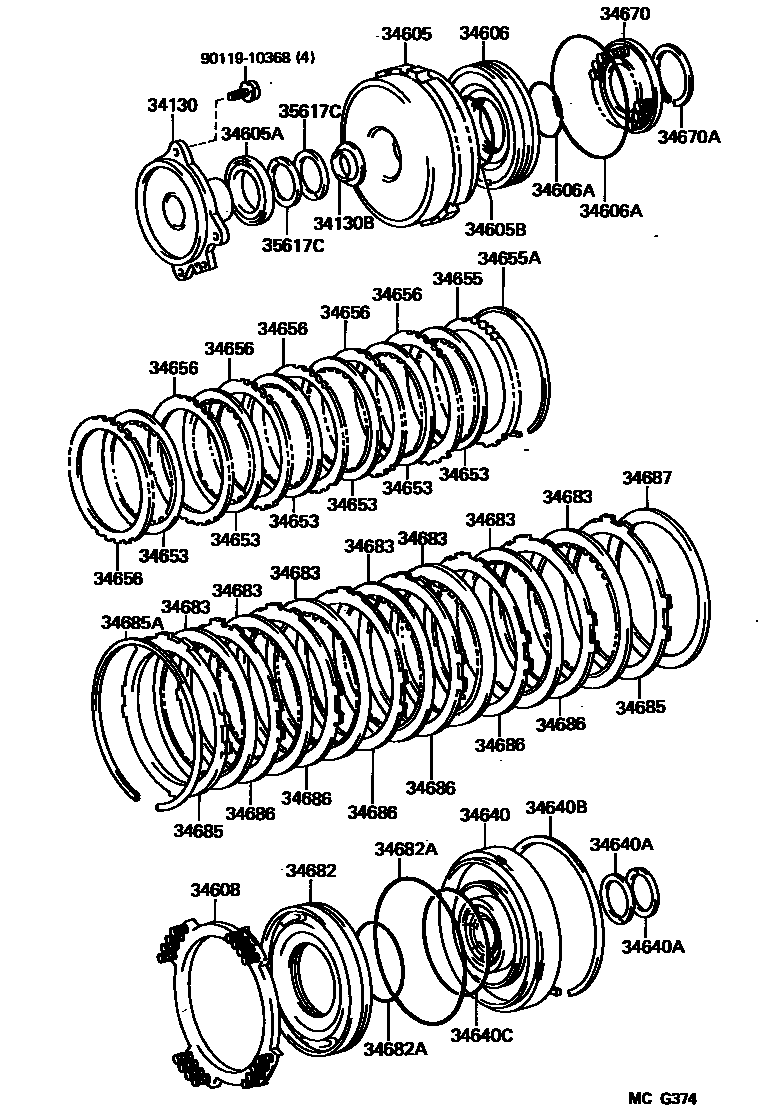

Toyota 4-RUNNER TRUCK (NAP) — TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT
34130SUPPORT ASSY, TRANSFER FRONT
34130BRACE, THRUST BEARING (FOR TRANSFER FRONT SUPPORT)
34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH
34605ABEARING, THRUST (FOR TRANSFER DIRECT CLUTCH DRUM)
34605BRING, O (FOR TRANSFER DIRECT CLUTCH DRUM)
34606PISTON SUB-ASSY, TRANSFER DIRECT CLUTCH
34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)
INNER
OUTER
34608SPRING SUB-ASSY BRAKE RETURN
34640SUPPORT ASSY, TRANSFER CENTER
34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)
34640BRING, SNAP(FOR TRANSFER CENTER SUPPORT)
34640CRING, O(FOR TRANSFER CENTER SUPPORT)
34653DISC, TRANSFER DIRECT CLUTCH
34655FLANGE, TRANSFER DIRECT CLUTCH
T=4.5
T=4.3
T=4.1
T=3.9
34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)
34656PLATE, TRANSFER DIRECT CLUTCH
T=1.8
T=2.5
34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN
34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)
34682PISTON, TRANSFER LOW SPEED BRAKE
34682ARING, O (FOR TRANSFER LOW SPEED BRAKE PISTON)
OUTER
34683DISC, TRANSFER LOW SPEED BRAKE
34685FLANGE, TRANSFER LOW SPEED BRAKE
T=4.6
T=4.4
T=4.2
T=4.0
T=3.8
34685ARING, SNAP (FOR TRANSFER LOW SPEED BRAKE FLANGE)
34686PLATE, TRANSFER LOW SPEED BRAKE
34687PLATE, TRANSFER LOW SPEED BRAKE CUSHION
35617CRING, DIRECT CLUTCH DRUM OIL SEAL
9011910368
main90119-10368
27 parts on this diagram · 1 diagram in section
