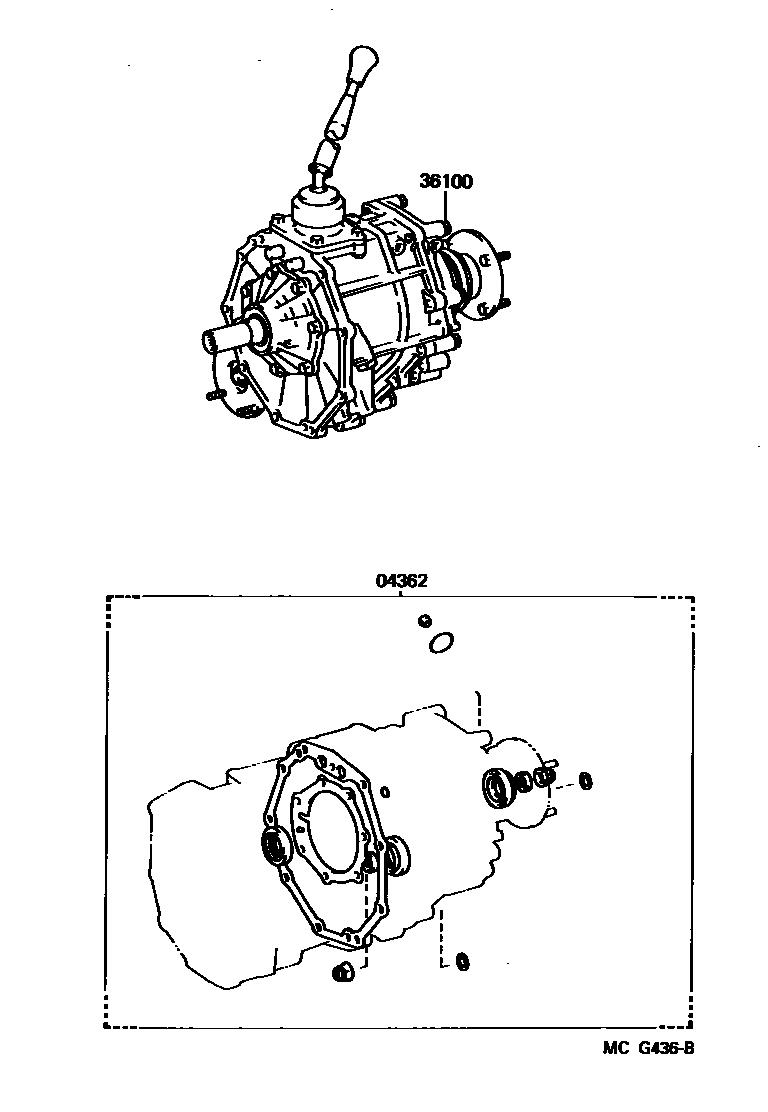

Toyota 4-RUNNER TRUCK (NAP) — TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1 0003 1

04362GASKET KIT, TRANSFER OVERHAUL

main04362-35030iVZN100,110..R199202-199501

sub04362-35031

main04362-35040iRN101,110..W199202-199401

sub04362-35041

main04362-35041iRN101,110..W199401-199501

main04362-35050iRN101..G199202-199411

sub04362-35051

36100TRANSFER ASSY

main36100-35361iRN101,110..W199202-199501

main36100-35530iVZN100,110..R199202-199501

sub36100-35531

main36100-35550iVZN100,110..R199202-199501

*ADD

sub36100-35551

main36100-35630iRN101..4FC199202-199501

sub36100-35631

main36100-35640iRN101..4FC199202-199501

*ADD

sub36100-35641

main36100-35710iRN101..G199202-199411

sub36100-35711

2 parts on this diagram · 3 diagrams in section
