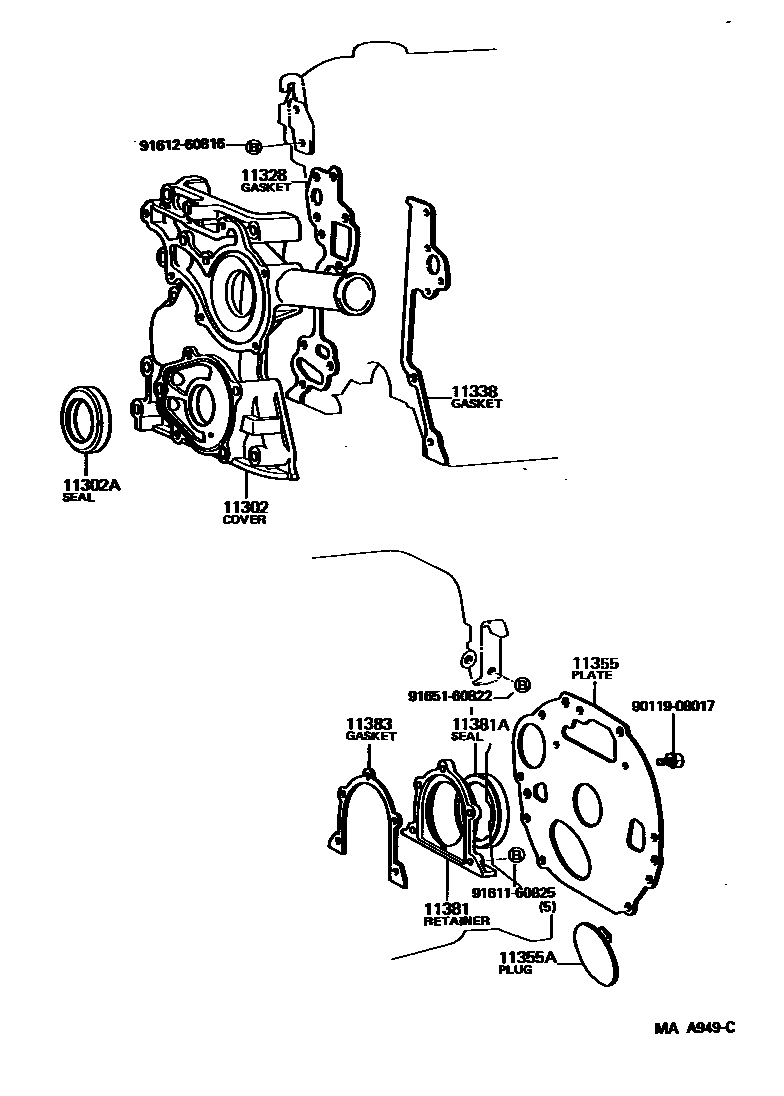

Toyota 4-RUNNER TRUCK (NAP) — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22RE..RN101,110199202-199501

main11302-65010i3VZE..VZN100,110199202-199501

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45011i22RE..RN101,110199202-199311

sub90311-45014

main90311-45014i22RE..RN101,110199311-199501

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35030i22RE..RN101,110199202-199501

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-35030i22RE..RN101,110199202-199501

11355PLATE, REAR END

main11355-35010i22RE..RN101,110..5F199202-199501

main11355-35030i22RE..RN101..4FC199202-199501

main11355-65010i3VZE..VZN100,110199202-199405

sub11355-65011

main11355-65011i3VZE..VZN100,110199405-199501

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01458i22RE..RN101..4FC199202-199501

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22RE..RN101,110199202-199501

main11381-62010i3VZE..VZN100,110199202-199501

11381ASEAL, ENGINE REAR OIL

main90311-80010i22RE..RN101,110199202-199501

main90311-92006i3VZE..VZN100,110199202-199501

sub90311-92009

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-35020i22RE..RN101,110199202-199501

9011908017

main90119-08017

9161160825

main91611-60825

9161260816

main91612-60816

9165160822

main91651-60822

13 parts on this diagram · 3 diagrams in section
