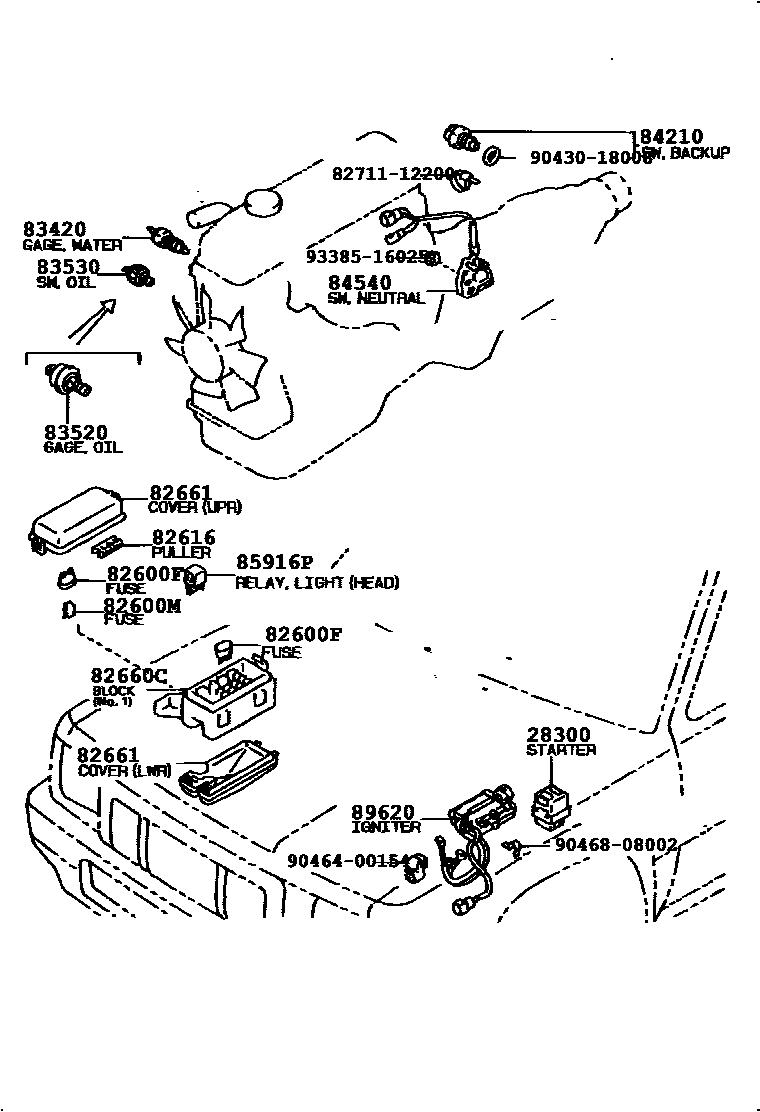

Toyota 4-RUNNER TRUCK (NAP) — SWITCH & RELAY & COMPUTER
28300RELAY ASSY, STARTER
82600FFUSE, FUSE BLOCK
10A,RED,(L)
15A,BLUE,(L)
20A,YELLOW,(L)
7.5A,BROWN,(L)
10A,(J)
15A,(J)
20A,YELLOW,(J)
7.5A,(J)
82600MFUSE, MEDIUM CURRENT
30A,PINK
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
UPR
LWR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
YAZAKI
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84540SWITCH ASSY, NEUTRAL START
MATUSITA
85916PRELAY, HEADLAMP
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9043018008
main90430-18008
9046400154
main90464-00154
9046808002
main90468-08002
9338516025
main93385-16025
18 parts on this diagram · 4 diagrams in section
