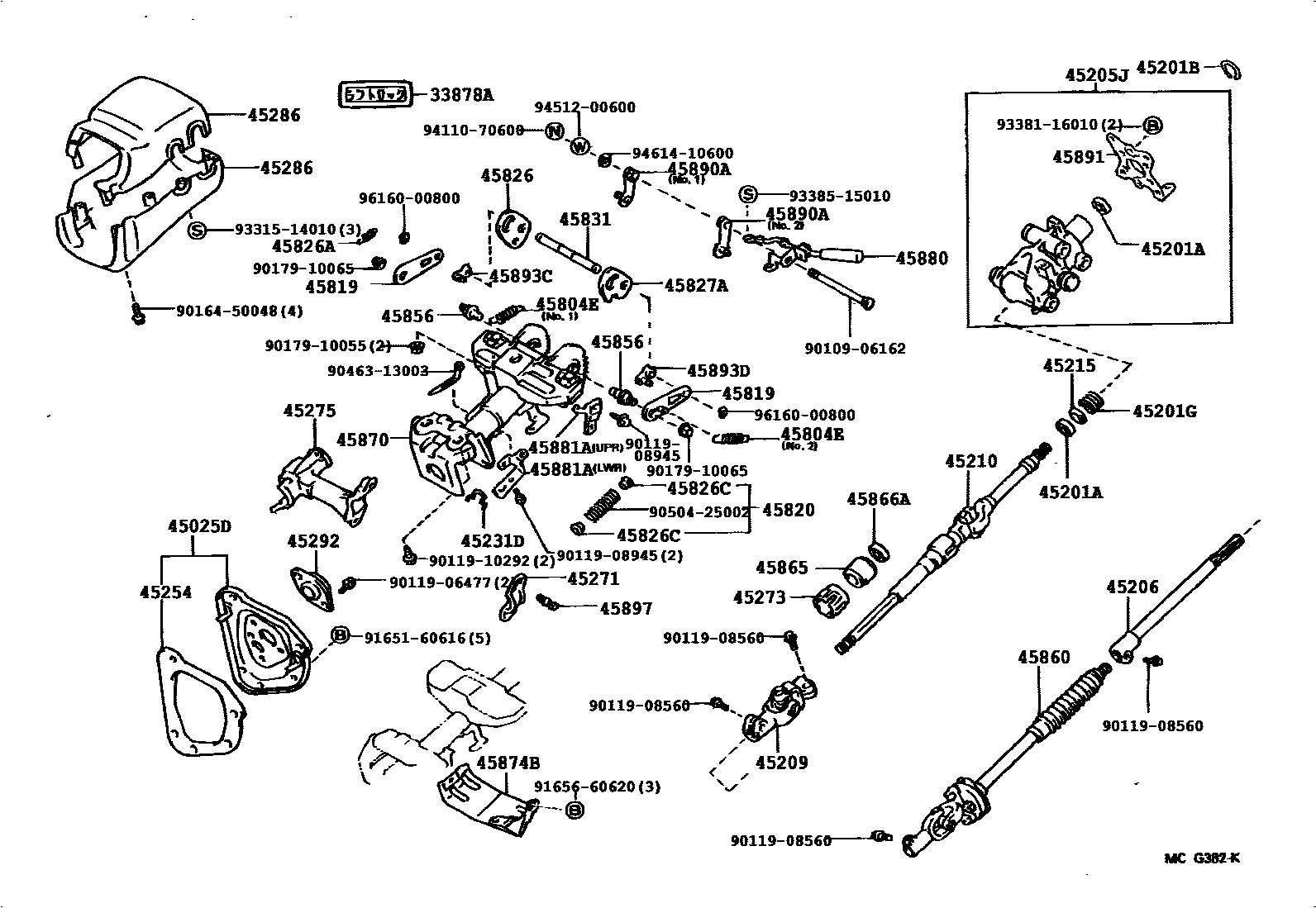

Toyota 4-RUNNER TRUCK (NAP) — STEERING COLUMN & SHAFT
33878ALABEL, SHIFT LOCK INFORMATION, NO.2
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
W(COLLAPSIBLE TILT STEERING),UPR
W(COLLAPSIBLE TILT STEERING)
W(COLLAPSIBLE TILT STEERING),LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LWR
T=1.20,W(TILT STEERING)
T=1.20,UPR
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
W(COLLAPSIBLE TILT STEERING)
45215COLLAR, MAIN SHAFT BEARING THRUST
45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
W(COLLAPSIBLE TILT STEERING)
45273BUSH, STEERING MAIN SHAFT
45275BRACKET, STEERING COLUMN, UPPER
W(COLLAPSIBLE TILT STEERING)
W(COLLAPSIBLE TILT STEERING)
45286COVER, STEERING COLUMN
MEDIUM GRAY,TRIM1#,UPR
MEDIUM BLUE,TRIM8#,UPR
W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPR
W(COLLAPSIBLE TILT STEERING),MEDIUM BLUE,TRIM8#,UPR
W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPR
sub45286-35360
W(COLLAPSIBLE TILT STEERING),MEDIUM BLUE,TRIM8#,UPR
sub45286-35360
MEDIUM GRAY,TRIM1#,LWR
MEDIUM BLUE,TRIM8#,LWR
W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LWR
W(COLLAPSIBLE TILT STEERING),MEDIUM BLUE,TRIM8#,LWR
W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LWR
sub45287-35240
W(COLLAPSIBLE TILT STEERING),MEDIUM BLUE,TRIM8#,LWR
sub45287-35240
45292SEAL, MAIN SHAFT LOWER DUST
45804ESPRING, TENSION(FOR STEERING TILT LEVER)
NO.2
NO.1
45819RETAINER, TILT LEVER
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45856BOLT, TILT STEERING, NO.2
OD=9.989-9.998
45866ASTOPPER, STEERING MAIN SHAFT BUSH
45870TUBE ASSY, STEERING COLUMN
W(COLLAPSIBLE TILT STEERING)
W(COLLAPSIBLE TILT STEERING)
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45881APROTECTOR, STEERING COLUMN, NO.2
LWR
UPR
45890APAWL ASSY, TILT STEERING
NO.1
NO.2
45891BRACKET, TURN SIGNAL
45893CSTOPPER, STEERING PAWL, RH
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
45893DSTOPPER, STEERING PAWL, LH
MARK A
MARK B
MARK C
MARK D
MARK E
45897BOLT, STEERING LOCK SET
9010906162
main90109-06162
9011906477
main90119-06477
9011908560
main90119-08560
9011908945
main90119-08945
9011910292
main90119-10292
9016450048
main90164-50048
9017910055
main90179-10055
9017910065
main90179-10065
9046313003
main90463-13003
9050425002
main90504-25002
9165160616
main91651-60616
9165660620
main91656-60620
9331514010
main93315-14010
9338116010
main93381-16010
9338515010
main93385-15010
9411070600
main94110-70600
9451200600
main94512-00600
9461410600
main94614-10600
9616000800
main96160-00800
57 parts on this diagram · 2 diagrams in section
