Toyota 4-RUNNER TRUCK (NAP) — SEAT & SEAT TRACK

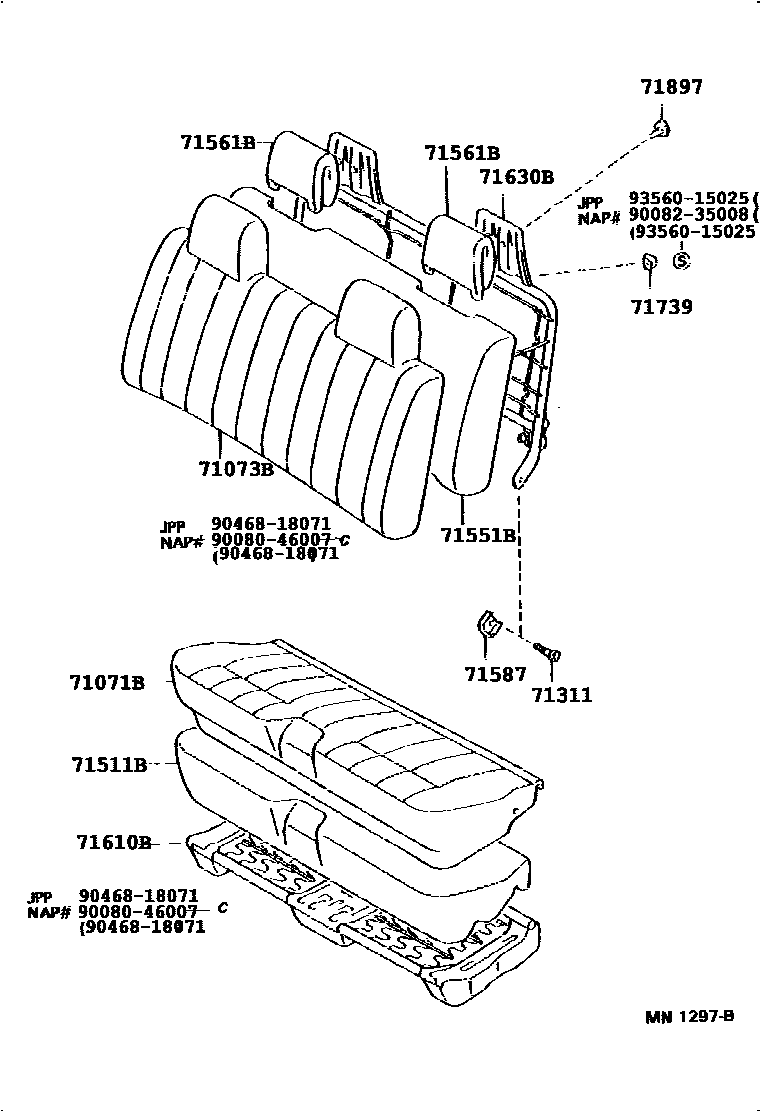

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-04100-B0i199109-199202
MEDIUM GRAY,TRIM1#
main71071-04100-J0i199109-199202
LIGHT BLUE,TRIM8#
main71071-04110-B2i199202-199501
LIGHT GRAY,TRIM1#
main71071-04110-B2i199109-199202
W(FABRIC SEAT),LIGHT GRAY,TRIM1#
main71071-04110-J2i199202-199501
LIGHT BLUE,TRIM8#
main71071-04110-J2i199109-199202
W(FABRIC SEAT),LIGHT BLUE,TRIM8#
main71071-04120-B0i199109-199501
MEDIUM GRAY,TRIM1#
main71071-04120-J0i199109-199501
LIGHT BLUE,TRIM8#
main71071-04130-B2i199202-199501
LIGHT GRAY,TRIM1#
main71071-04130-B2i199109-199501
W(FABRIC SEAT),LIGHT GRAY,TRIM1#
main71071-04130-J2i199109-199501
W(FABRIC SEAT),LIGHT BLUE,TRIM8#
main71071-04130-J2i199202-199501
LIGHT BLUE,TRIM8#
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-04070-B0i199109-199209
MEDIUM GRAY,TRIM1#
main71073-04070-J0i199109-199209
LIGHT BLUE,TRIM8#
main71073-04071-B0i199209-199501
LIGHT GRAY,TRIM1#
main71073-04071-J0i199209-199501
LIGHT BLUE,TRIM8#
main71073-04080-B2i199109-199209
W(FABRIC SEAT),LIGHT GRAY,TRIM1#
main71073-04080-B2i199202-199209
LIGHT GRAY,TRIM1#
main71073-04080-J2i199109-199209
W(FABRIC SEAT),LIGHT BLUE,TRIM8#
main71073-04080-J2i199202-199209
LIGHT BLUE,TRIM8#
main71073-04081-B2i199209-199501
LIGHT GRAY,TRIM1#
main71073-04081-B2i199209-199501
W(FABRIC SEAT),LIGHT GRAY,TRIM1#
main71073-04081-J2i199209-199501
LIGHT BLUE,TRIM8#
main71073-04081-J2i199209-199501
W(FABRIC SEAT),LIGHT BLUE,TRIM8#
71311PIN, FRONT SEAT HINGE
main71311-04010i199109-199501
71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71511-04030i199109-199501
main71511-04040i199109-199501
71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)
main71551-04030i199109-199501
71561BPAD, FRONT SEATBACK, UPPER
main71561-04050i199109-199501
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-04010i199109-199501
71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71610-04030i199109-199501
71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)
main71630-04021i199109-199501
sub71630-35020
71739CUSHION, SEAT SUPPORT
main71739-04010i199109-199201
sub71739-04020
main71739-04020i199201-199501
main71739-89113i199109-199501
W(SEPARATE SEAT)
71897HOOK, SEAT COVER SIDE
main71897-04010-B0i199109-199501
MEDIUM GRAY,TRIM1#
main71897-04010-J0i199109-199501
MEDIUM BLUE,TRIM8#
main71897-89104-B1i199303-199501
GRAY,TRIM1#
sub71897-89104
main71897-89104-J1i199303-199501
BLUE,TRIM8#
sub71897-89104
9008046007
main90080-46007
9008235008
main90082-35008
9046818071
main90468-18071
9356015025
main93560-15025

15 parts on this diagram · 6 diagrams in section
