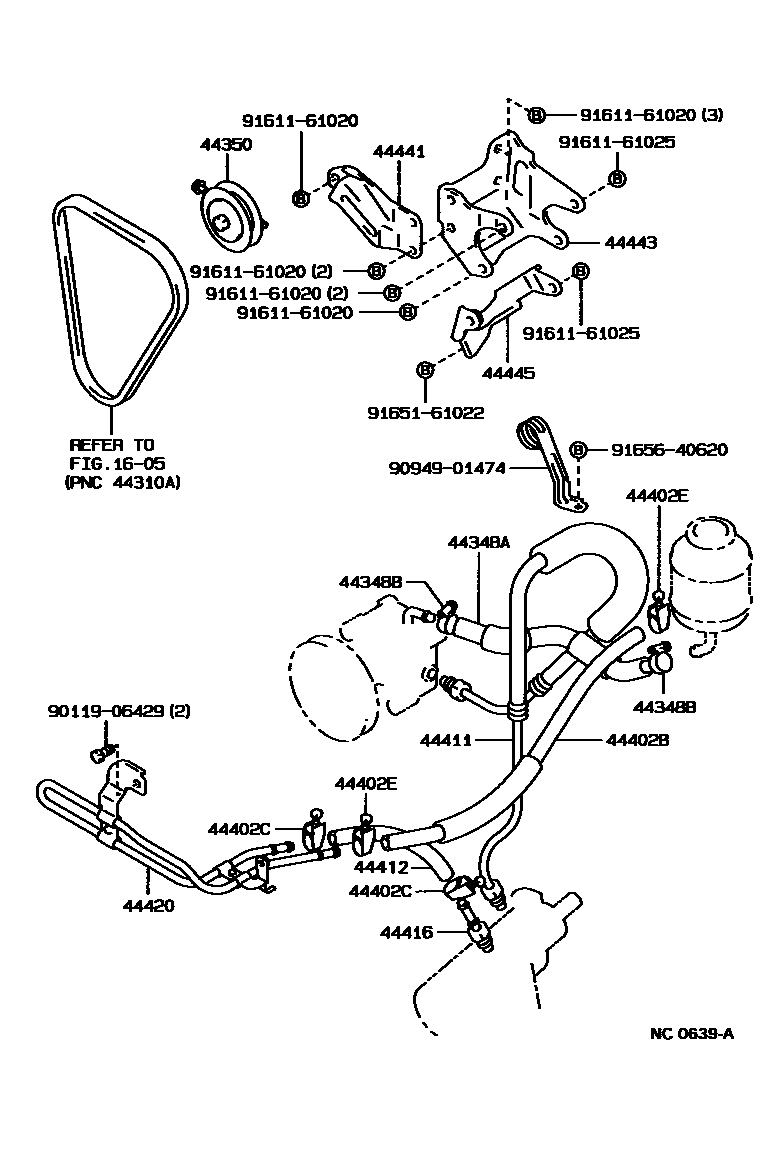

Toyota 4-RUNNER TRUCK (NAP) — POWER STEERING TUBE

0001 1 0002 1W(ANTI-LOCK BRAKING SYSTEM) 0003 1 0004 1W(ANTI-LOCK BRAKING SYSTEM)

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35100iRN101,110199202-199501

sub44348-35101

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iRN101,110199202-199404

main90467-21005iRN101,110199404-199501

sub90467-21010

44350PULLEY ASSY, POWER STEERING IDLE

main44350-35010iRN101,110199202-199501

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90447-18039iRN101,110199202-199501

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iRN101,110,VZN100,110199202-199404

main90467-16008iRN101,110,VZN100,110199404-199501

sub90467-16019

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iRN101,110,VZN100,110199202-199404

main90467-16008iRN101,110,VZN100,110199404-199501

sub90467-16019

44411HOSE, PRESSURE FEED

main44411-35290iRN101,110199202-199501

main44411-35340iVZN100,110199202-199501

44412HOSE, RETURN

main44412-35090iVZN100,110199202-199501

sub44412-35091

main44412-35130iRN101,110199202-199501

W(*66)

main90445-18138iRN101,110199202-199501

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35020iRN101,110,VZN100,110199202-199501

44420COOLER ASSY, OIL

main44420-35040iRN101,110199202-199501

44441BRACKET, PUMP, FRONT

main44441-20010iRN101,110199202-199501

main44441-35020iVZN100,110199202-199501

44443BRACKET, PUMP

main44443-35020iRN101,110199202-199501

44445BRACKET, PUMP, LOWER

main44445-35010iRN101,110199202-199501

9011906429

main90119-06429

9094901474

main90949-01474

9161161020

main91611-61020

9161161025

main91611-61025

9165161022

main91651-61022

9165640620

main91656-40620

20 parts on this diagram · 4 diagrams in section
