Toyota 4-RUNNER TRUCK (NAP) — PARKING BRAKE & CABLE

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35010iRN101,110,VZN100,110199202-199306

sub46104-35030

main46104-35030iRN101,110,VZN100,110199306-199501

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iRN101,110,VZN100,110199202-199501

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iRN101,110,VZN100,110199202-199501

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iRN101,110,VZN100,110199202-199501

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35200iRN101,110,VZN100,110199202-199501

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-25003iRN101,110,VZN100,110199202-199501

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-35030iRN101,110,VZN100,110199202-199501

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iRN101,110,VZN100,110199202-199501

46304CPIN(FOR PARKING BRAKE EQUALIZER)

main90240-08040iRN101,110,VZN100,110199202-199501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35520iVZN100199202-199501

main46410-35530iRN101199202-199501

main46410-35560iVZN110199303-199501

main46410-35570iRN110199303-199501

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35500iRN101,110,VZN100,110199202-199501

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059iRN101,110,VZN100,110199202-199501

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iRN101,110,VZN100,110199202-199501

46469LEVER, CABLE GUIDE SUPPORT

main46469-35020iRN101,110,VZN100,110199202-199501

46471PULLEY, WIRE

main46471-20010iRN101,110,VZN100,110199202-199501

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iRN101,110,VZN100,110199202-199501

46479LEVER, CABLE GUIDE SAPPORT, NO.2

main46479-35010iRN101,110,VZN100,110199202-199501

9010908102

main90109-08102

9011908667

main90119-08667

9011908744

main90119-08744

9017906161

main90179-06161

9017908146

main90179-08146

9020608016

main90206-08016

9046112339

main90461-12339

9046116012

main90461-16012

9046806063

main90468-06063

9046808001

main90468-08001

9046814004

main90468-14004

9046814024

main90468-14024

9094901101

main90949-01101

9094901471

main90949-01471

9094901492

main90949-01492

9161160614

main91611-60614

9161160818

main91611-60818

9165160618

main91651-60618

9165160818

main91651-60818

9411040600

main94110-40600

9411040800

main94110-40800

9461211001

main94612-11001

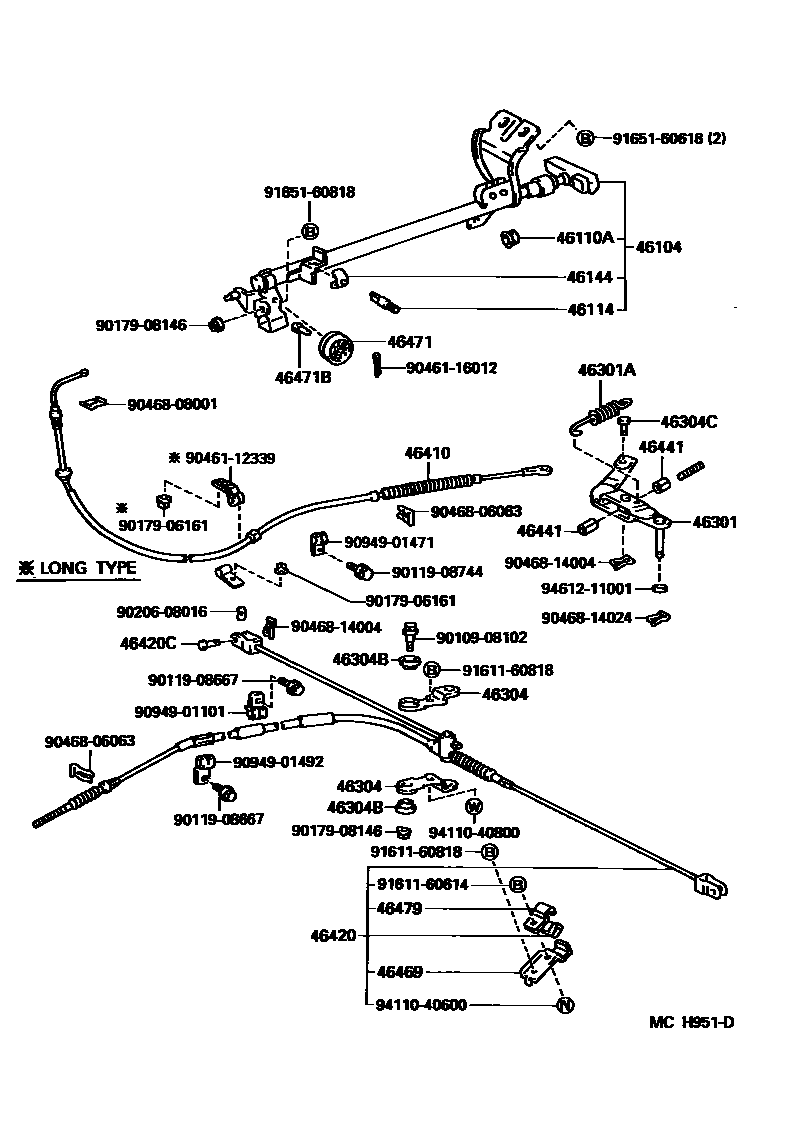

39 parts on this diagram · 1 diagram in section
