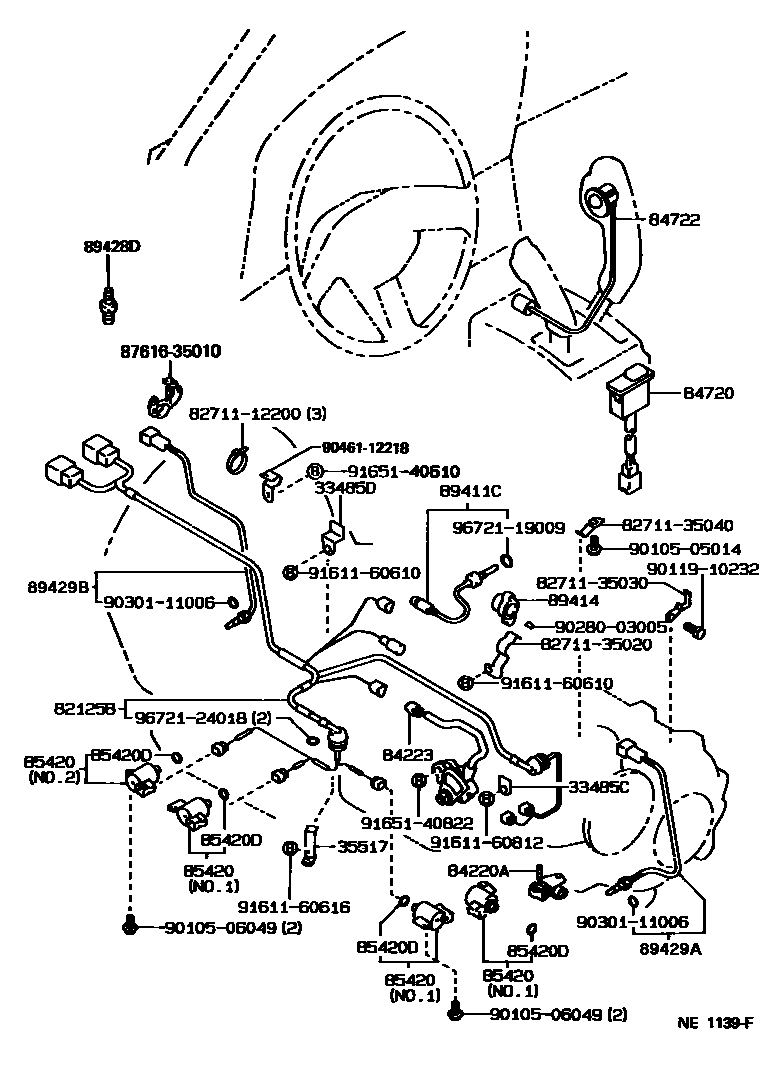

Toyota 4-RUNNER TRUCK (NAP) — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
33485CPLATE, SPEEDOMETER SLEEVE LOCK
33485DPLATE, SPEEDOMETER SLEEVE LOCK
35517PLATE, TRANSMISSION WIRE LOCK
82125BWIRE, TRANSMISSION
W(*ADD)
84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR
84223SWITCH, TRANSFER POSITION
84720SWITCH ASSY, PATTERN SELECT
84722SWITCH, TRANSMISSION CONTROL
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.2
NO.2,AISIN
NO.2,NIPPONDENSO
NO.2
85420DRING, O (FOR TRANSMISSION SOLENOID)
89414ROTOR, SENSOR
89428DSWITCH, TEMPERATURE, NO.2
89429ASENSOR, TEMPERATURE
NO.1
NO.2
89429BSENSOR, TEMPERATURE NO.2
sub89429-35042
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271135020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35020
8271135030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35030
8271135040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35040
8761635010CLAMP, COOLING UNIT CASE
main87616-35010
9010505014
main90105-05014
9010506049
main90105-06049
9011910232
main90119-10232
9028003005
main90280-03005
9030111006
main90301-11006
9046112218
main90461-12218
9161160610
main91611-60610
9161160616
main91611-60616
9161160812
main91611-60812
9165140610
main91651-40610
9165140822
main91651-40822
9672119009
main96721-19009
9672124018
main96721-24018
33 parts on this diagram · 1 diagram in section
