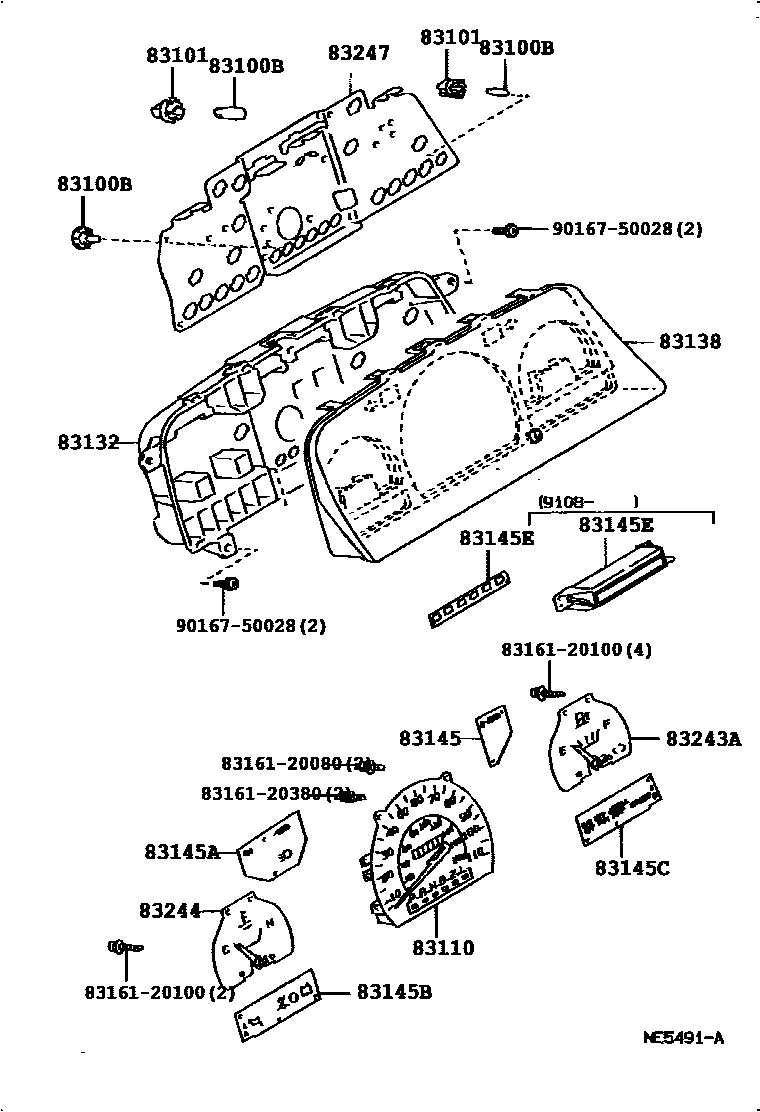

Toyota 4-RUNNER TRUCK (NAP) — METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-37020iRN80199208-199303

12V 1.7W

main83119-35020iRN80..4HC199109-199501

14V 1.4W

main83120-04010iRN80,90199208-199501

12V 3.4W,GREEN CAP

main83120-04020iRN80,90..W..DLX199208-199501

12V 3.4W W(RED CAP)

main83120-04030iRN80,90..W..DLX199208-199501

12V 1.4W W(RED CAP)

main83120-04040iRN80..4HC199208-199501

12V 3.4W,W(SOCKET),(L)

main83120-04040iRN80..4HC199208-199501

12V 3.4W,W(SOCKET)

main83120-04050iRN80,90199208-199501

12V 1.4W,W(SOCKET),(L)

main83120-04060iRN80,90199208-199501

12V 1.7W,W(SOCKET)

main90981-11018iRN80,90199109-199501

12V 1.2W W/O SOCKET,(J)

main99132-12034iRN80..4HC199208-199303

12V 3.4W

main99132-12034iRN80,90199109-199501

12V 3.4W,(J)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iRN80,90199109-199501

12V 1.4W BULB

main83101-20040iRN80,90199109-199501

12V 3.4W BULB

83110SPEEDOMETER ASSY

main83110-04010iRN80,90..W199303-199501

main83110-04010iRN80..W199109-199303

VDO YAZAKI

main83110-04020iRN80,90..W..DLX199303-199501

W(TRIP METER)

main83110-04020iRN80..W..DLX199109-199303

W(TRIP METER),VDO YAZAKI

main83110-04030iRN80..4HC199208-199303

VDO YAZAKI

main83110-04030iRN80..4HC199109-199501

main83110-04040iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER),VDO YAZAKI

main83110-04040iRN80,90..W..DLX199202-199501

W(TRIP METER & TACHOMETER)

main83110-35170iRN80..W199109-199303

YAZAKI

main83110-35180iRN80..W..DLX199109-199303

W(TRIP METER),YAZAKI

main83110-35190iRN80..4HC199109-199303

YAZAKI

main83110-35380iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER),YAZAKI

83132CASE, COMBINATION METER

main83132-04010iRN80,90199303-199501

main83132-04010iRN80199208-199303

VDO-YAZAKI

main83132-04020iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83132-35020iRN80199208-199303

YAZAKI

main83132-35020iRN80199109-199208

main83132-35040iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83138GLASS, SPEEDOMETER

main83138-04010iRN80,90199303-199501

main83138-04010iRN80199208-199303

VDO-YAZAKI

main83138-04020iRN80,90..W..DLX199303-199501

W(TRIP METER)

main83138-04020iRN80..W..DLX199208-199303

W(TRIP METER),VDO-YAZAKI

main83138-04030iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83138-89520iRN80199208-199303

YAZAKI

main83138-89520iRN80199109-199208

main83138-89522iRN80..W..DLX199109-199208

W(TRIP METER)

main83138-89522iRN80..W..DLX199208-199303

W(TRIP METER),YAZAKI

main83138-89532iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83145LENS, METER, NO.1

main83145-04010iRN80199208-199303

VDO-YAZAKI

main83145-04010iRN80,90199303-199501

main83145-04030iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83145-89504iRN80199109-199208

main83145-89504iRN80199208-199303

YAZAKI

main83145-89546iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83145ALENS, METER, NO.2

main83145-04020iRN80199208-199303

VDO-YAZAKI

main83145-04020iRN80,90199303-199501

main83145-04040iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83145-89502iRN80199208-199303

YAZAKI

main83145-89502iRN80..W199109-199208

main83145-89572iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83145BLENS, METER, NO.3

main83145-04050iRN80,90199303-199501

main83145-04050iRN80199208-199303

VDO-YAZAKI

main83145-04080iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83145-89548iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

main83145-89602iRN80199208-199303

YAZAKI

main83145-89602iRN80199109-199208

83145CLENS, METER, NO.4

main83145-04060iRN80..4HC199303-199501

main83145-04060iRN80..4HC199208-199303

VDO-YAZAKI

main83145-04090iRN80,90..W..DLX199303-199501

main83145-04090iRN80..W..DLX199208-199303

W(TRIP METER & TACHOMETER)

main83145-89508iRN80..4HC199208-199303

YAZAKI

main83145-89508iRN80..4HC199109-199208

main83145-89510iRN80..W199109-199303

sub83145-89508

main83145-89524iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83145ELENS, METER, NO.6

main81860-04010iRN80..4HC199303-199501

main81860-04010iRN80..4HC199208-199303

VDO YAZAKI

main83145-35260iRN80..4HC199208-199303

YAZAKI

main83145-35260iRN80..4HC199109-199208

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-04010iRN80,90199303-199501

main83243-04010iRN80199208-199303

VDO-YAZAKI

main83243-04020iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83243-35060iRN80199109-199208

main83243-35060iRN80199208-199303

YAZAKI

main83243-35100iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-04010iRN80..4HC199303-199501

main83244-04010iRN80..4HC199208-199303

VDO-YAZAKI

main83244-04020iRN80,90..W199303-199501

main83244-04020iRN80..W199208-199303

VDO-YAZAKI

main83244-04030iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83244-35040iRN80..4HC199208-199303

YAZAKI

main83244-35040iRN80..4HC199109-199208

main83244-35060iRN80..W199208-199303

YAZAKI

main83244-35060iRN80..W199109-199208

main83244-35140iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

83247PLATE, METER CIRCUIT

main83247-04010iRN80,90..W199303-199501

main83247-04010iRN80..W199208-199303

VDO-YAZAKI

main83247-04020iRN80..4HC199303-199501

main83247-04020iRN80..4HC199208-199303

VDO-YAZAKI

main83247-04040iRN80,90..W..DLX199208-199501

W(TRIP METER & TACHOMETER)

main83247-35180iRN80..W199208-199303

YAZAKI

main83247-35180iRN80..W199109-199208

main83247-35200iRN80..4HC199208-199303

YAZAKI

main83247-35200iRN80..4HC199109-199208

main83247-35500iRN80..W..DLX199109-199202

W(TRIP METER & TACHOMETER)

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

9016750028

main90167-50028

17 parts on this diagram · 3 diagrams in section
