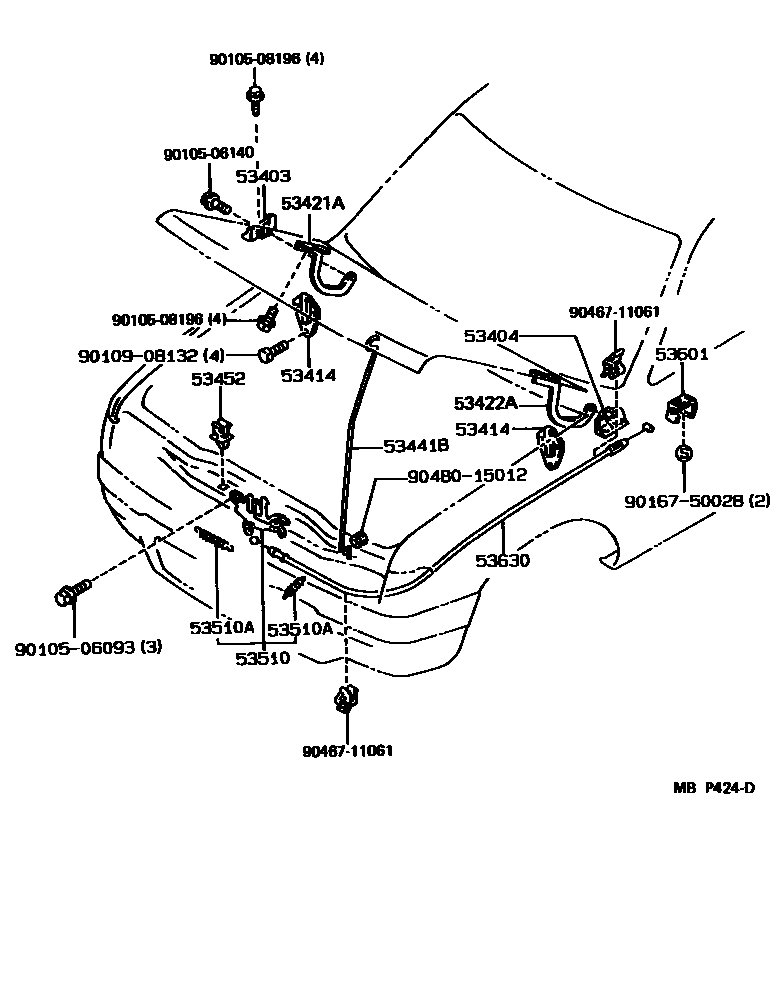

Toyota 4-RUNNER TRUCK (NAP) — HOOD LOCK & HINGE

53403BRACKET SUB-ASSY, HOOD HINGE, RH

main53403-89103iRN101,110,VZN100,110199202-199501

53404BRACKET SUB-ASSY, HOOD HINGE, LH

main53404-89103iRN101,110,VZN100,110199202-199501

53414SEAL, HOOD HINGE

main53414-89103iRN101,110,VZN100,110199202-199501

53421AARM, HOOD HINGE, RH

main53421-89104iRN101,110,VZN100,110199202-199501

53422AARM, HOOD HINGE, LH

main53422-89103iRN101,110,VZN100,110199202-199501

53441BSUPPORT, HOOD

main53441-04020iRN101,110,VZN100,110199202-199501

53452HOLDER, HOOD STAY

main53452-90351iRN101,110,VZN100,110199202-199501

53510LOCK ASSY, HOOD

main53510-35050iRN101,110,VZN100,110199202-199501

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-07021iRN101,110,VZN100,110199202-199501

WD=0.7,CW=37.25,L=41

main90506-20008iRN101,110,VZN100,110199202-199501

WD=2.0,CW=17,L=59

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-04010-B0iRN101,110,VZN100,110199303-199501

MEDIUM GRAY,TRIM1#

main53601-04010-J0iRN101,110,VZN100,110199303-199501

MEDIUM BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-04010iRN101,110,VZN100,110199202-199501

9010506093

main90105-06093

9010506140

main90105-06140

9010508196

main90105-08196

9010908132

main90109-08132

9016750028

main90167-50028

9046711061

main90467-11061

9048015012

main90480-15012

18 parts on this diagram · 1 diagram in section
