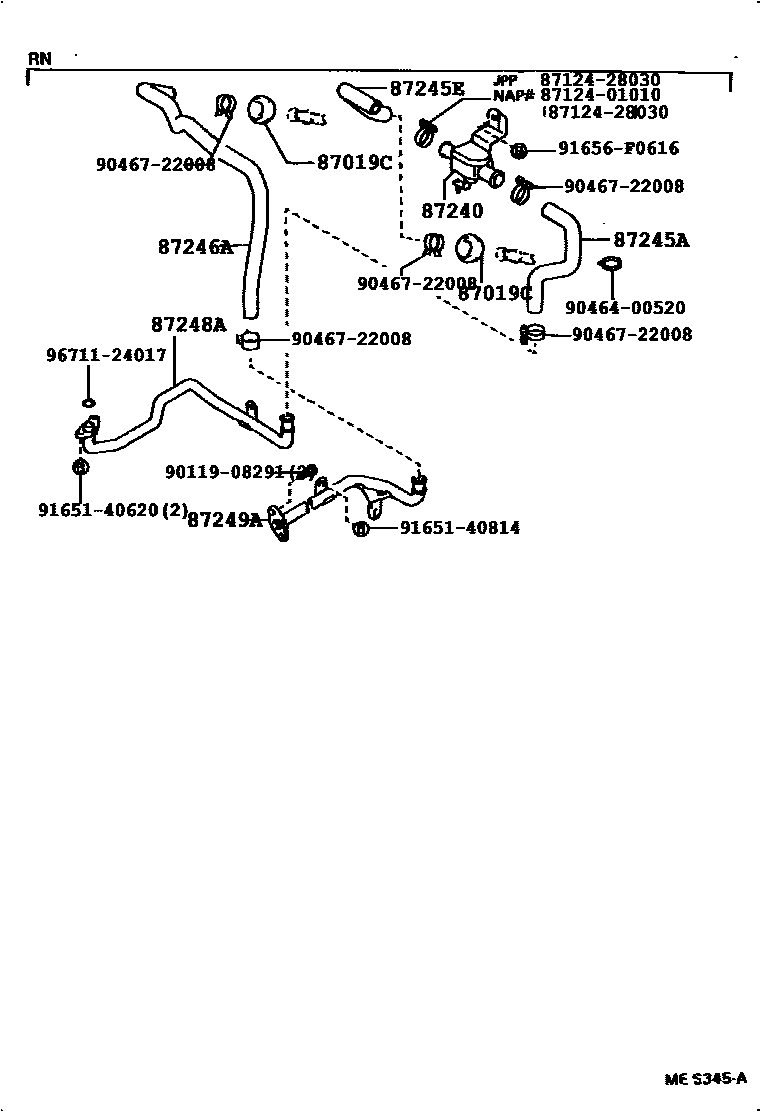

Toyota 4-RUNNER TRUCK (NAP) — HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-36005iRN80,90199109-199501

87240VALVE ASSY, HEATER WATER

main87240-04010iRN80,90199109-199501

87245AHOSE, HEATER WATER, INLET A

main87245-04080iRN80,90199109-199501

87245EHOSE, HEATER WATER, INLET E

main87245-04100iRN80,90199109-199501

87246AHOSE, HEATER WATER, OUTLET A

main87245-04090iRN80,90199109-199501

87248APIPE, HEATER WATER INLET, A

main87208-14280iRN80199109-199112

sub87208-35170

main87208-35170iRN80,90199112-199501

87249APIPE, HEATER WATER OUTLET, A

main87208-35130iRN80,90199112-199501

main87208-89121iRN80199109-199112

sub87208-35130

8712401010CLAMP, HEATER

main87124-01010

8712428030CLAMP, HEATER

main87124-28030

9011908291

main90119-08291

9046400520

main90464-00520

9046722008

main90467-22008

9165140620

main91651-40620

9165140814

main91651-40814

91656F0616

main91656-F0616

9671124017

main96711-24017

16 parts on this diagram · 1 diagram in section
