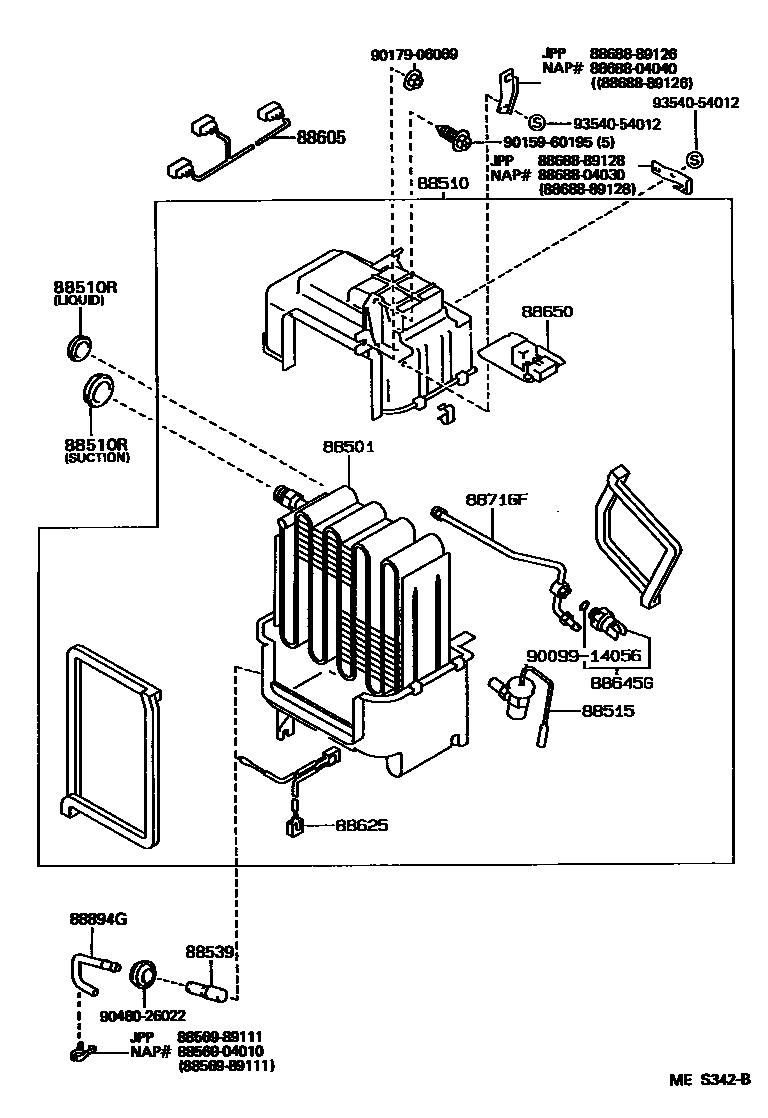

Toyota 4-RUNNER TRUCK (NAP) — HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-04010iRN80,90199109-199401

main88501-04020iRN80,90199401-199501

88510UNIT ASSY, COOLER

main88510-04020iRN80,90199109-199401

main88510-04070iRN80,90199401-199501

88510RGROMMET (FOR COOLER UNIT)

main90480-26003iRN80,90199109-199501

LIQUID

main90480-36003iRN80,90199109-199501

SUCTION

88515VALVE, COOLER EXPANSION

main88515-03010iRN80,90199109-199401

main88515-04020iRN80,90199401-199501

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-04010iRN80,90199109-199501

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-04010iRN80,90199109-199501

88625THERMISTOR, COOLER, NO.1

main88625-04010iRN80,90199109-199501

88645GSWITCH, PRESSURE

main88645-04010iRN80,90199109-199401

main88645-04040iRN80,90199401-199501

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-89106iRN80,90199109-199501

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-04010iRN80,90199109-199401

main88716-04060iRN80,90199401-199501

88894GCONNECTOR, DRAIN HOSE

main88894-04010iRN80,90199109-199501

MAKER OPTION

main88894-04020iRN80,90199109-199501

DEALER OPTION

8856904010CLAMP (FOR COOLER RELAY)

main88569-04010

8856989111CLAMP (FOR COOLER RELAY)

main88569-89111

8868804030BRACKET, COOLER DIAPHRAGM

main88688-04030

8868804040BRACKET, COOLER DIAPHRAGM

main88688-04040

8868889126BRACKET, COOLER DIAPHRAGM

main88688-89126

8868889128BRACKET, COOLER DIAPHRAGM

main88688-89128

9009914056

main90099-14056

9015960195

main90159-60195

9017906069

main90179-06069

9048026022

main90480-26022

9354054012

main93540-54012

22 parts on this diagram · 1 diagram in section
