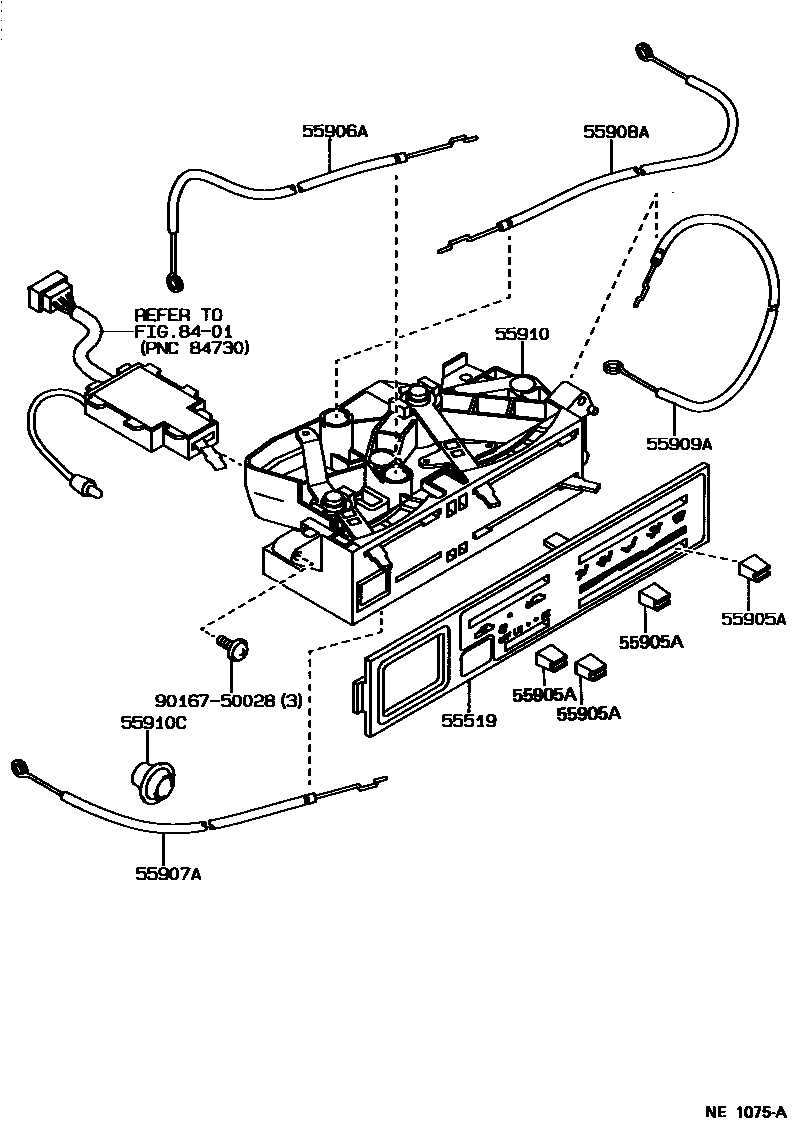

Toyota 4-RUNNER TRUCK (NAP) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1FRONT DUCT

55519PLATE, HEATER CONTROL NAME

main55519-35020iRN101,VZN100199210-199302

W(DIGITAL CLOCK & MAKER OPTION AIR CONDITIONER)

sub55519-35040

main55519-35020iRN101,VZN100199302-199303

W(CLOCK)

sub55519-35040

main55519-35040iRN101,VZN100199210-199302

MAKER OPTION *AIC

main55519-35040iRN101,110,VZN100,110199302-199501

main55519-89148iRN101,VZN100199202-199302

W(CLOCK)

sub55519-35020

main55519-89150iRN101,VZN100199202-199302

sub55519-35040

55905AKNOB, HEATER CONTROL

main55905-89115iRN101,110,VZN100,110199202-199501

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-35010iRN101,110,VZN100,110199202-199310

main55906-35040iRN101,110,VZN100,110199310-199501

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-35020iRN101,VZN100199202-199206

main55907-35030iRN101,110,VZN100,110199206-199501

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-35010iRN101,110,VZN100,110199202-199310

main55908-35030iRN101,110,VZN100,110199310-199501

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-35030iRN101,110,VZN100,110199202-199501

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-35020iRN101,110,VZN100,110199202-199310

sub55910-35090

sub55906-35040

sub55908-34020

sub55908-35030

main55910-35090iRN101,110,VZN100,110199310-199501

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-13024iRN101,110,VZN100,110199202-199501

8401

9016750028

main90167-50028

10 parts on this diagram · 2 diagrams in section
