Toyota 4-RUNNER TRUCK (NAP) — FRONT FENDER APRON & DASH PANEL

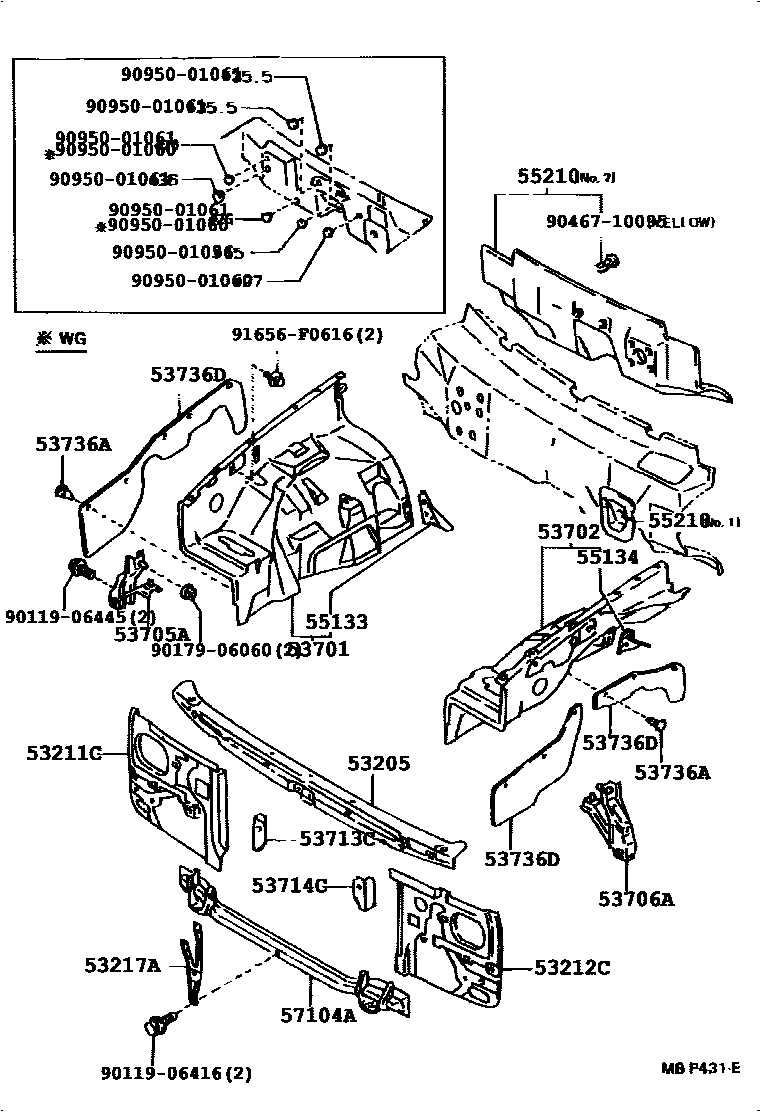

Parts diagram
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53216-89110i199109-199501
53211CSUPPORT, RADIATOR, RH
main53211-89124i199109-199501
53212CSUPPORT, RADIATOR, LH
main53212-89121i199109-199501
53217ABRACE, HOOD LOCK SUPPORT
main53217-89108i199109-199501
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-04060i199109-199501
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-04070i199109-199501
W(POWER STEERING & *CRC)
main53702-04080i199109-199501
W(POWER STEERING)
main53702-04090i199109-199501
W(*CRC)
main53702-04100i199109-199501
53705ABRACE SUB-ASSY, FENDER APRON, RH
main53705-89102i199109-199501
53706ABRACE SUB-ASSY, FENDER APRON, LH
main53706-89102i199109-199501
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-89104i199109-199501
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-89104i199109-199501
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-10107i199109-199501
OD=17
main90467-21008i199109-199501
OD=35
53736DSEAL, FENDER APRON
main53736-04010i199109-199501
TYPE A
main53736-89130i199109-199501
TYPE A
main53736-89131i199109-199501
TYPE E
sub53736-89130
55133PLATE, FRONT FENDER APRON SET, LOWER RH
main55133-89103i199109-199501
55134PLATE, FRONT FENDER APRON SET, LOWER LH
main55134-89103i199109-199501
55210INSULATOR ASSY, DASH PANEL
main55210-04020i199109-199501
NO.1,(L)
main55210-04030i199109-199501
NO.1,(L)
main55210-04040i199109-199501
NO.2,(L)
main55210-89151i199109-199207
NO.1,(J)
main55210-89152i199109-199207
NO.1,(J)
main55210-89158i199109-199203
NO.2,(J)
sub55210-35130
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-04020i199109-199501
9011906416
main90119-06416
9011906445
main90119-06445
9017906060
main90179-06060
9046710095
main90467-10095
9095001056
main90950-01056
9095001060
main90950-01060
9095001061
main90950-01061
91656F0616
main91656-F0616

24 parts on this diagram · 3 diagrams in section
