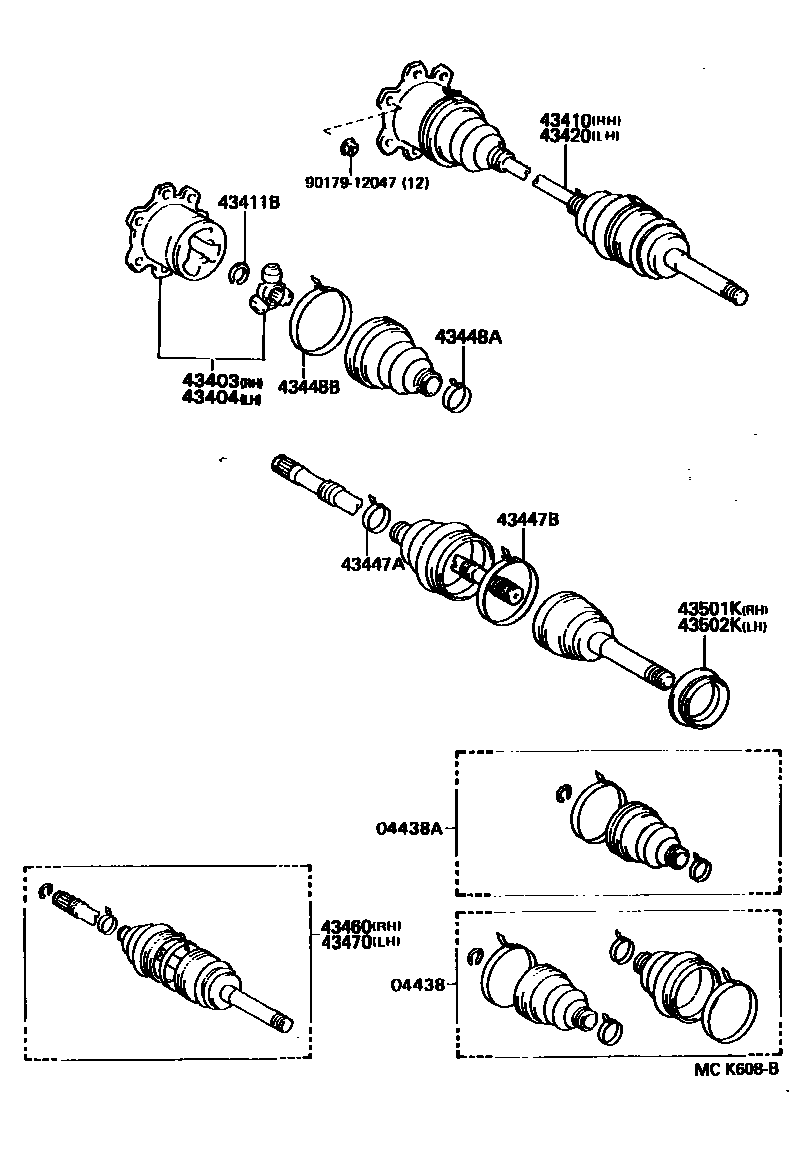

Toyota 4-RUNNER TRUCK (NAP) — FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
sub04438-35022
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
sub04438-35012
43403JOINT SET, FRONT AXLE INBOARD, RH
sub43403-35020
43404JOINT SET, FRONT AXLE INBOARD, LH
sub43403-35020
43410SHAFT ASSY, FRONT DRIVE, RH
sub43430-35012
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43420SHAFT ASSY, FRONT DRIVE, LH
sub43430-35012
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
sub43460-39027
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
sub43460-39027
43501KSEAL, DUST (FOR FRONT AXLE HUB RH)
43502KSEAL, DUST (FOR FRONT AXLE HUB LH)
9017912047
main90179-12047
16 parts on this diagram · 1 diagram in section
