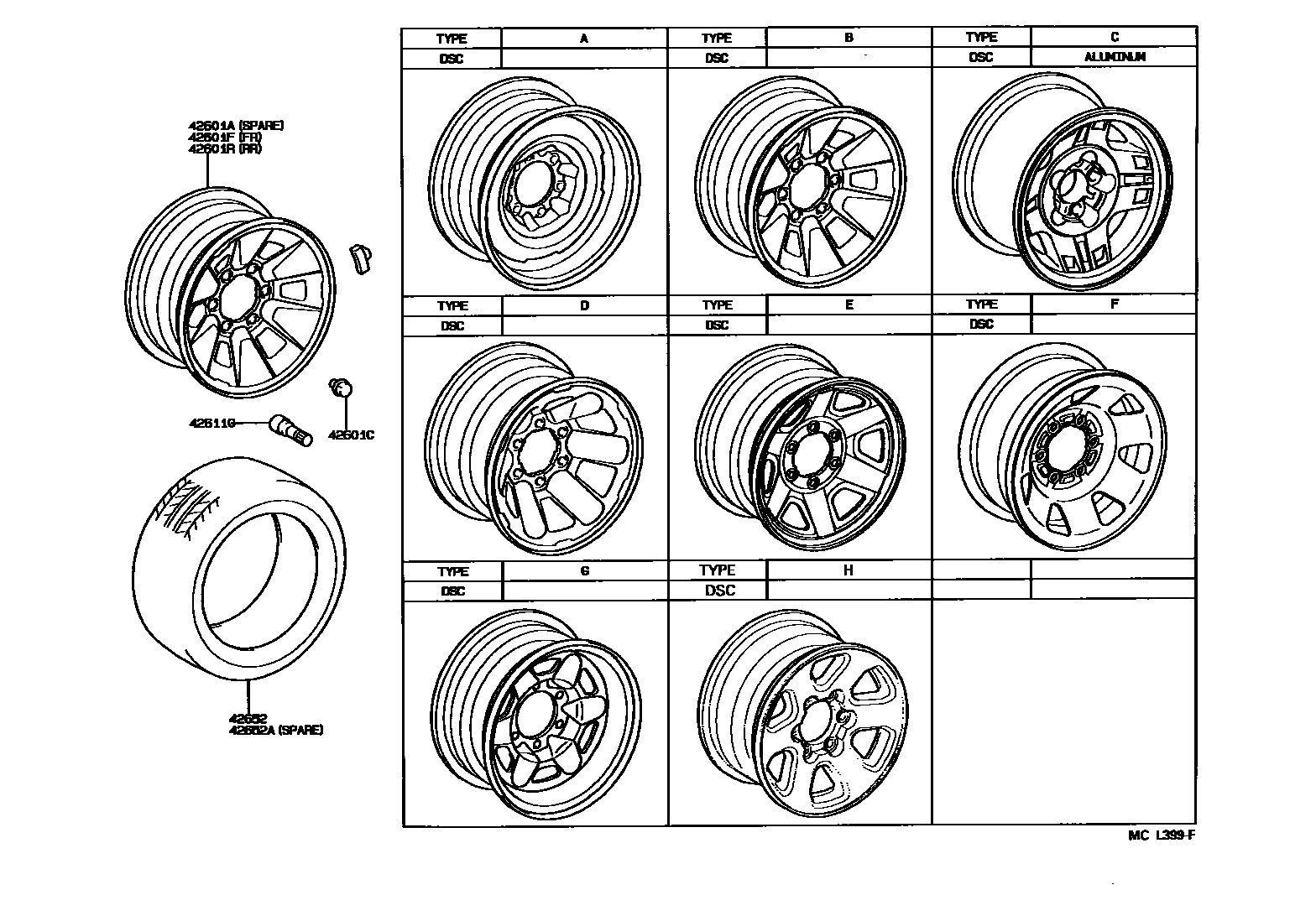

Toyota 4-RUNNER TRUCK (NAP) — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-04030iVZN100,110199202-199501

15X7JJ,TYPE G

sub42601-04020

main42601-04040iRN101,110,VZN100,110199202-199501

15X6JJ,TYPE A

42601CNUT, HUB (FOR AXLE)

main90942-01075iRN101,110,VZN100,110199202-199501

42601FWHEEL, DISC (FOR FRONT)

main42601-04030iVZN100,110199202-199501

15X7JJ,TYPE G

sub42601-04020

main42601-04050iRN101,110,VZN100,110199202-199501

15X6JJ,TYPE E

main42601-35630iRN101,110,VZN100,110199308-199501

15X6JJ,TYPE H

42601RWHEEL, DISC (FOR REAR)

main42601-04030iVZN100,110199202-199501

15X7JJ,TYPE G

sub42601-04020

main42601-04050iRN101,110,VZN100,110199202-199501

15X6JJ,TYPE E

main42601-35630iRN101,110,VZN100,110199308-199501

15X6JJ,TYPE H

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001iRN101,110,VZN100,110199403-199501

main90942-05009iRN101,110,VZN100,110199202-199403

42652TIRE

main42652-04090iRN101,110,VZN100,110199308-199501

P225/75R15,USA,*B/S

42652ATIRE (FOR SPARE)

main42652-04090iRN101,110,VZN100,110199308-199501

P225/75R15,USA,*B/S

7 parts on this diagram · 3 diagrams in section
