Toyota 4-RUNNER TRUCK (NAP) — ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78100-35061iRN80,90..DLX199109-199501

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main21905-35021iRN80,90..DLX199109-199501

78120GROD ASSY, ACCELERATOR PEDAL

main78120-89143iRN80,90..W199109-199501

main78120-89144iRN80..4HC199109-199501

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-04040iRN80,90199109-199501

main78180-35060iRN80,90..DLX199109-199501

W(*CRC)

78184BBRACKET, ACCELERATOR CONTROL CABLE

main21928-35021iRN80,90..DLX199109-199501

W(*CRC)

main78184-35040iRN80,90199109-199501

9020107008

main90201-07008

9038608063

main90386-08063

9050826077

main90508-26077

9054103005

main90541-03005

9095903026

main90959-03026

91611F0814

main91611-F0814

9161640616

main91616-40616

91656F0620

main91656-F0620

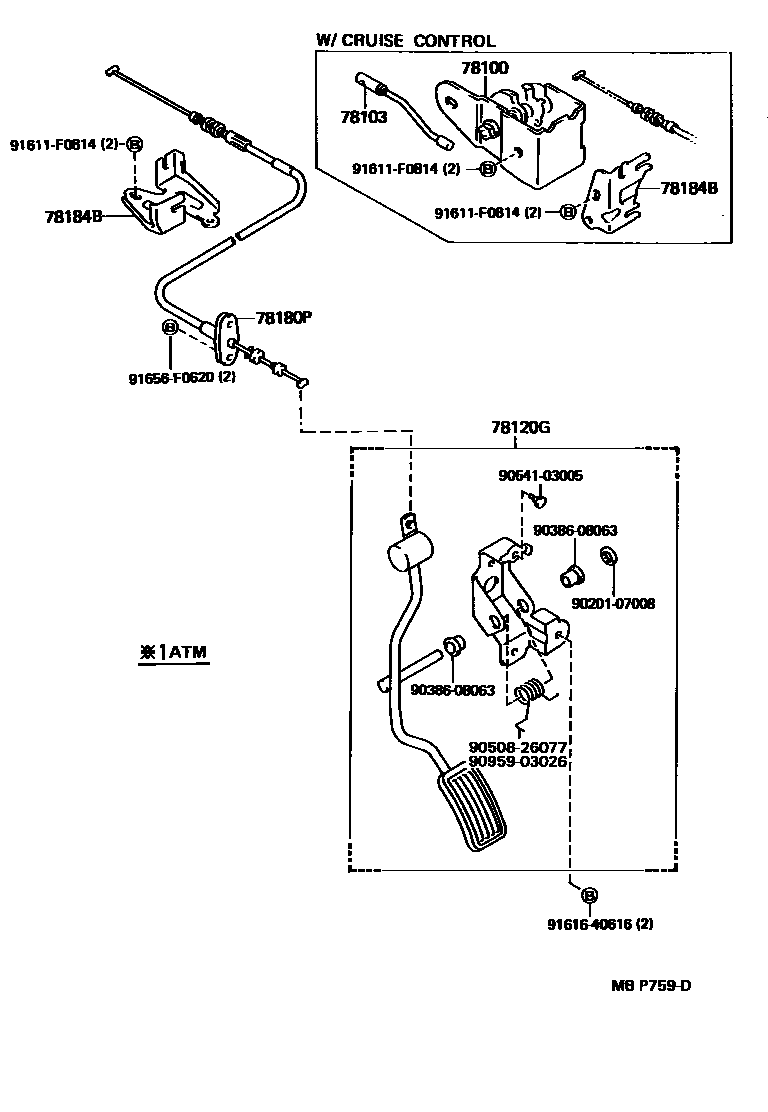

13 parts on this diagram · 1 diagram in section
