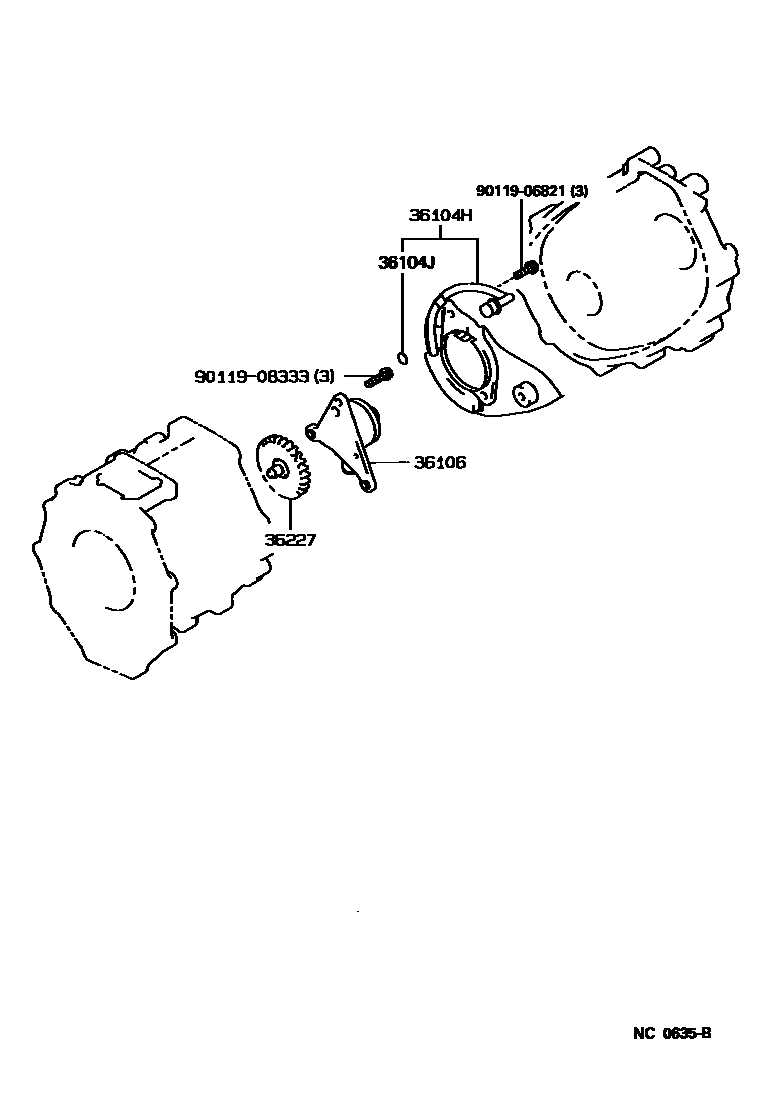

Toyota 4-RUNNER TRUCK (JPP) — TRANSFER OIL PUMP

0001 1 0002 1

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35010iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19012iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-35021iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36227GEAR, TRANSFER OIL PUMP

main36227-35010iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

9011906821

main90119-06821

9011908333

main90119-08333

6 parts on this diagram · 2 diagrams in section
