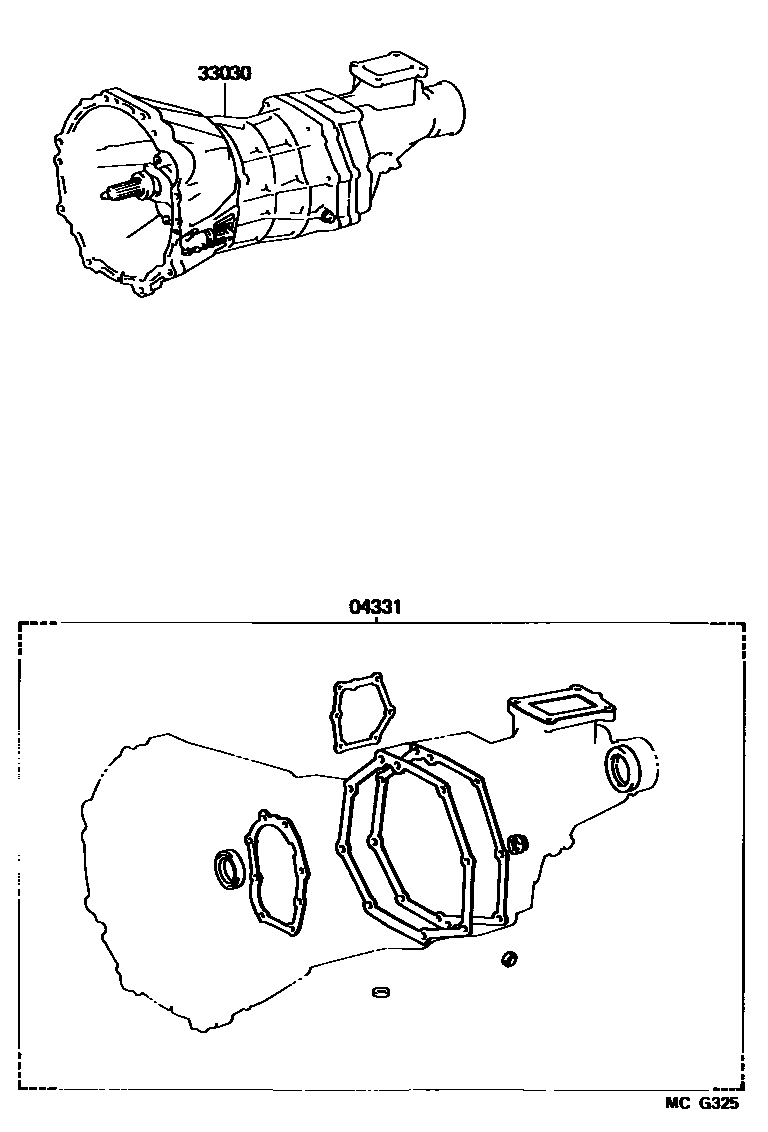

Toyota 4-RUNNER TRUCK (JPP) — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G40,57 0002 1W46,55 0003 1R150

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14040iVZN85,9#..R198808-199405

main04331-22040iRN121,8#,90..W198808-199110

main04331-35170iRN8#,90..G198808-199108

sub04331-35171

main04331-35210iRN8#,90..W199110-199501

main04331-35220iVZN90..R199405-199501

sub04331-35350

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-35810iRN8#,90..5F..CBR198808-199008

main33030-35830iRN80..W..STD198808-199008

main33030-35840iRN8#,90..5F..EFI198808-199110

main33030-3D040iRN80..G..STD..USA198808-198908

W(P195/75R14 TIRE)

main33030-3D040iRN80..STD..CBR..USA198908-199008

main33030-3D050iRN80..G..STD..USA198808-198908

main33030-3D060iVZN85,90..HLF..R..(CBU,IV3)198808-199108

sub33030-3D530

main33030-3D062iVZN90..R199108-199405

sub33030-3D460

main33030-3D070iVZN85..10T..R;VZN85,95..R..IV6198808-199108

sub33030-3D540

main33030-3D072iVZN85..R199108-199308

sub33030-3D540

sub82715-89108

main33030-3D130iRN121..W198904-199110

main33030-3D210iVZN95..R199008-199108

sub33030-3D550

sub90461-08365

main33030-3D212iVZN95..R199108-199308

sub33030-3D550

sub82715-89108

main33030-3D310iRN8#,90..W199110-199208

sub33030-3D311

main33030-3D311iRN8#,90..W199208-199501

main33030-3D460iVZN90..R199405-199501

2 parts on this diagram · 3 diagrams in section
