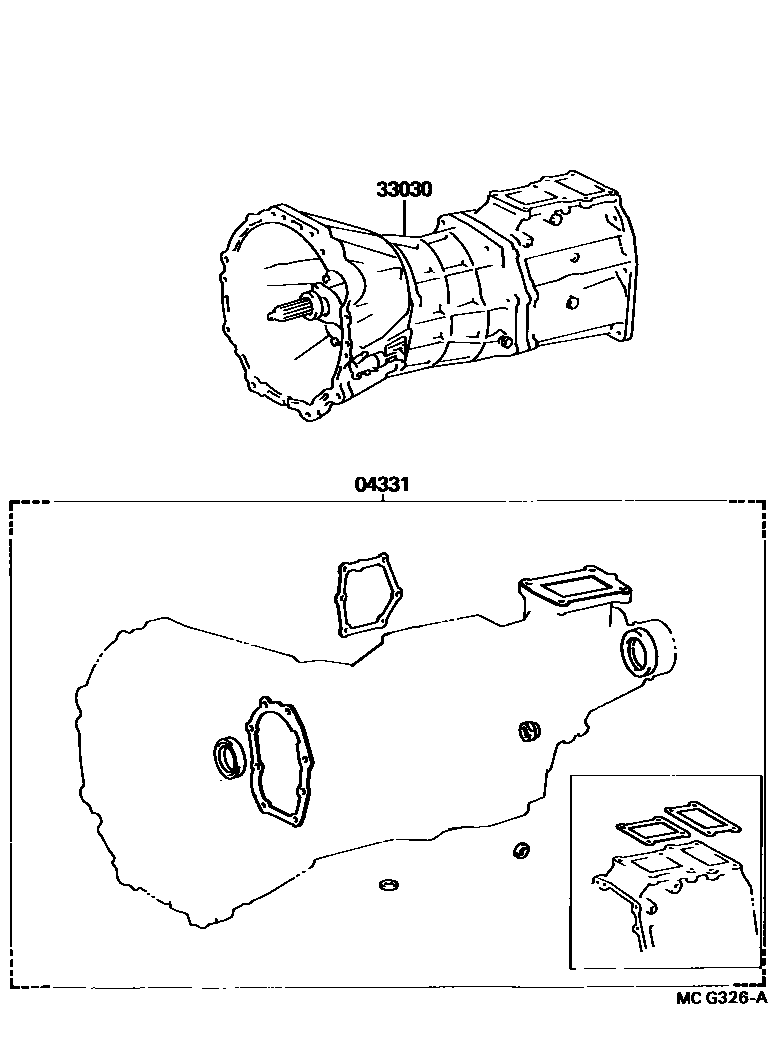

Toyota 4-RUNNER TRUCK (JPP) — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G58 0002 1W56 0003 1R150F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-22040iRN10#,110,13#..W198808-199110

main04331-34021iVZN10#,110,13#..R198808-199405

main04331-35170iRN10#,110,13#..G199108-199511

sub04331-35171

main04331-35180iRN10#,110,13#..G198808-199108

main04331-35200iRN10#,110,130..W199110-199501

main04331-35230iVZN100,110,13#..R199405-199511

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-35860iRN10#,110,13#..W198808-199110

sub33030-3D331

main33030-35880iRN10#,110,13#..G198808-199511

main33030-3D080iVZN10#,110,13#..R198808-199008

sub33030-3D081

main33030-3D081iVZN10#,110,13#..R199008-199108

sub33030-3D590

main33030-3D083iVZN10#,110,13#..R199108-199405

sub33030-3D470

main33030-3D330iRN10#,110,130..W199110-199208

sub33030-3D331

main33030-3D331iRN101,110..W199208-199501

main33030-3D470iVZN100,110,13#..R199405-199511

2 parts on this diagram · 3 diagrams in section
