Toyota 4-RUNNER TRUCK (JPP) — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

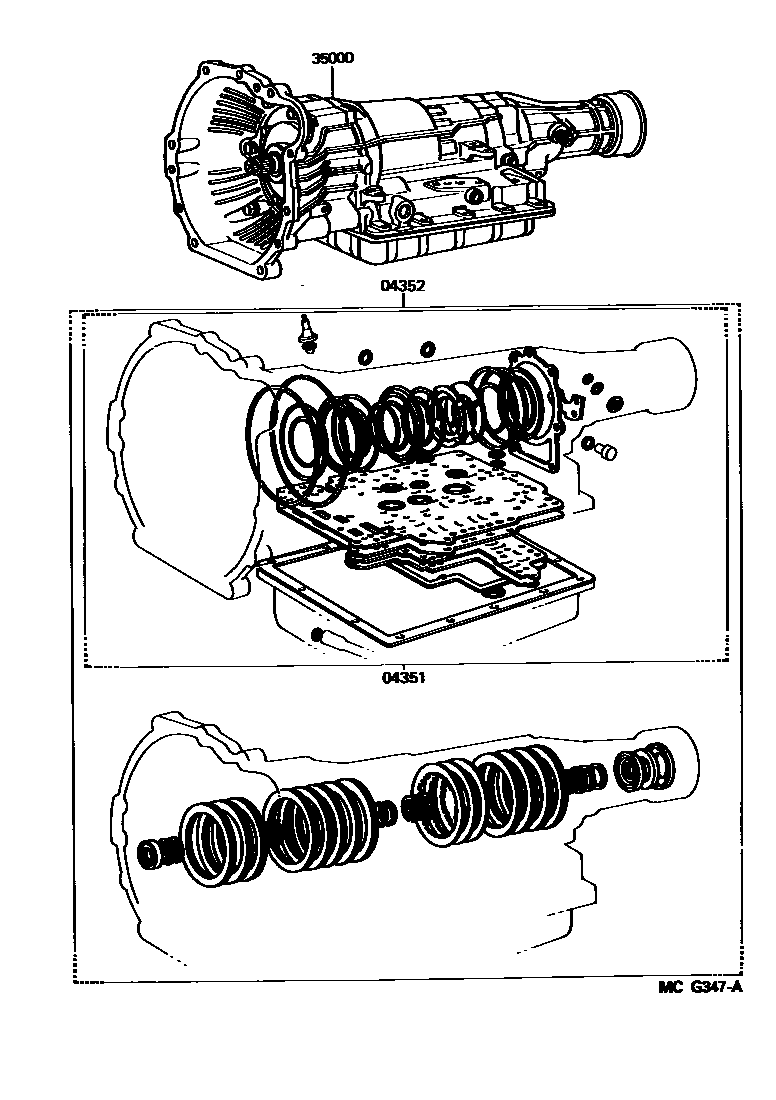

Parts diagram
04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
main04351-30093i198808-199511
main04351-30110i198808-199501
04352KIT, AUTOMATIC TRANSMISSION OVERHAUL
main04352-35042i198808-199511
main04352-35050i198808-199501
35000TRANSMISSION ASSY, AUTOMATIC
main35000-35370i198808-199010
main35000-35371i199010-199108
main35000-35380i198808-199010
W(*CRC)
main35000-35381i199010-199108
W(*CRC)
main35000-35430i198808-198811
sub35000-35431
sub32922-35201
main35000-35431i198811-199108
main35000-35440i198808-198811
sub35000-35441
sub32922-35201
main35000-35441i198811-199008
main35000-35450i198808-198811
sub35000-35451
sub32922-35201
main35000-35451i198811-199108
main35000-35460i198808-198811
sub35000-35461
sub32922-35201
main35000-35461i198811-199008
main35000-35530i198808-199010
main35000-35531i199010-199108
main35000-35540i198808-199010
W(*CRC)
main35000-35541i199010-199108
W(*CRC)
main35000-35560i198904-199108
main35000-35570i198904-199108
W(*CRC)
main35000-35580i198904-199108
main35000-35630i199008-199108
main35000-35640i199008-199108
main35000-35650i199008-199108
main35000-35730i199108-199308
main35000-35740i199108-199308
W(*CRC)
main35000-35750i199108-199308
main35000-35760i199108-199308
W(*CRC)
main35000-35810i199108-199208
main35000-35820i199108-199308
main35000-35830i199108-199308
main35000-35840i199108-199308
main35000-35850i199108-199308
main35000-35860i199108-199308
main35000-3D090i199308-199501
main35000-3D100i199308-199501
main35000-3D130i199308-199408
main35000-3D220i199308-199501
main35000-3D230i199308-199501
W(*CRC)
main35000-3D240i199308-199501
main35000-3D250i199308-199501
W(*CRC)
main35000-3D400i199408-199511

3 parts on this diagram · 2 diagrams in section
