Toyota 4-RUNNER TRUCK (JPP) — REAR BUMPER & BUMPER STAY

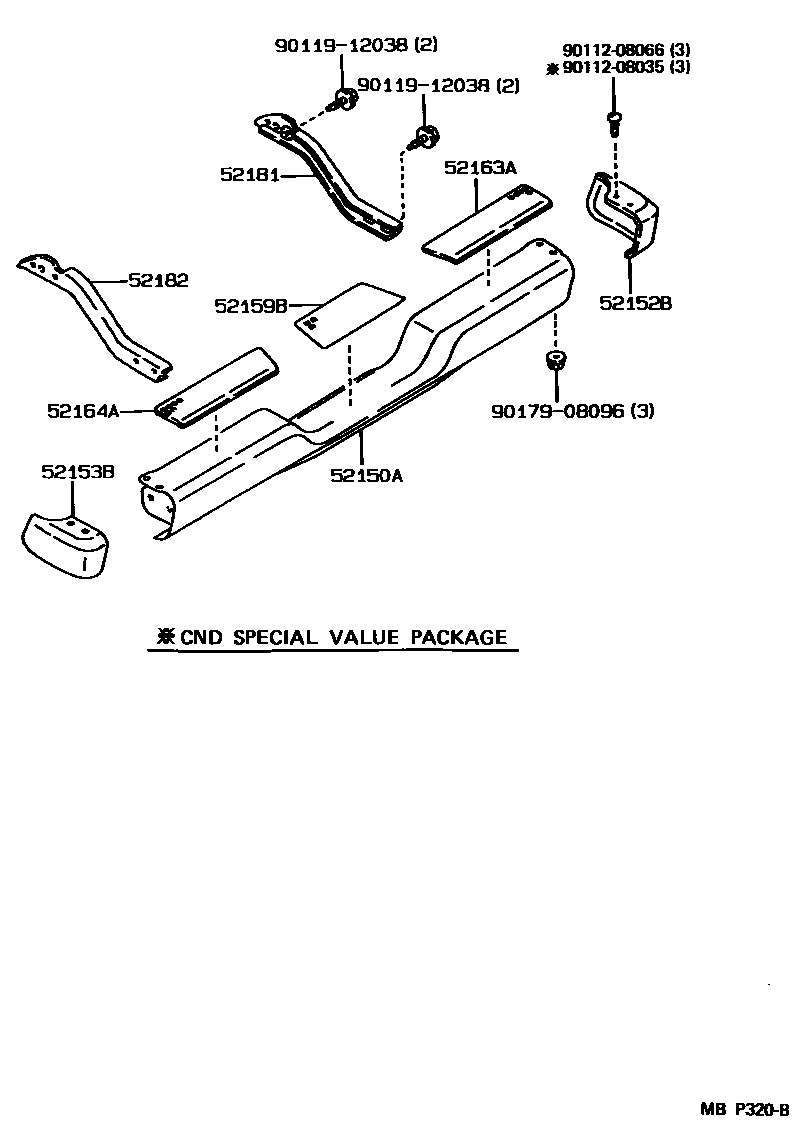

Parts diagram
52150ABUMPER ASSY, REAR
main52105-35020i199108-199511
PAINTED
sub52105-35907
main52105-35030i199108-199511
CHROME PLATED & W(SPARE TIRE:15X7J)
main52105-35050-E0i199108-199308
W(SPARE TIRE:15X7J),SILVER M.,SILVER M.,27L
main52105-35050-F0i199108-199511
W(SPARE TIRE:15X7J),BLUE GRAY M.,BLUE GRAY M.,25T
main52105-35070-E0i199108-199308
SILVER M.,27L
sub52105-35909
main52105-35070-F0i199108-199511
BLUE GRAY M.,25T
sub52105-35909
main52105-35090i199108-199511
sub52105-35911
main52105-35150i199411-199511
CHROME PLATED
main52105-89116i198904-199108
main52105-89117i199108-199411
CHROME PLATED
sub52105-35150
main52105-89117i198904-199108
CHROME PLATED PACKAGE
sub52105-35150
main52105-89120-03i198904-199108
SILVER.M,27L
main52105-89120-06i198904-199008
O.GOLD.M,29L
main52105-89120-13i198904-199108
D.GRAY.M,28L
main52150-35010i199108-199501
main52150-89113i198808-199108
52152BEXTENSION, REAR BUMPER, RH
main52106-35020i199108-199511
sub52106-35902
main52106-35030-E0i199108-199308
SILVER M.,27L
main52106-35030-F0i199108-199511
BLUE GRAY M.,25T
main52106-35030-F0i199408-199411
W(SPARE WHEEL CARRIER=WITH FRAME),BLUE GRAY M.,25T
main52106-89105i198904-199108
main52106-89106i199108-199511
PLATED
main52106-89106i199108-199511
CHROME PLATED
main52106-89106i198904-199108
CHROME PLATED PACKAGE
main52106-89107-03i198904-199108
SILVER.M,27L
main52106-89107-06i198904-199008
O.GOLD.M,29L
main52106-89107-13i198904-199108
D.GRAY.M,28L
main52152-35010i199108-199501
main52152-89112i198808-199108
52153BEXTENSION, REAR BUMPER, LH
main52107-35010i199108-199511
sub52107-35902
main52107-35020-E0i199108-199308
SILVER M.,27L
main52107-35020-F0i199408-199411
W(SPARE WHEEL CARRIER=WITH FRAME),BLUE GRAY M.,25T
main52107-35020-F0i199108-199511
BLUE GRAY M.,25T
main52107-89103i198904-199108
main52107-89104i198904-199108
CHROME PLATED PACKAGE
main52107-89104i199108-199511
CHROME PLATED
main52107-89104i199108-199511
PLATED
main52107-89105-03i198904-199108
SILVER.M,27L
main52107-89105-06i198904-199008
O.GOLD.M,29L
main52107-89105-13i198904-199108
D.GRAY.M,28L
main52153-35010i199108-199501
main52153-89112i198808-199108
52159BPLATE, REAR BUMPER
main52159-89102i198808-199501
main52159-89106i198904-199511
main52159-89107i198904-199108
W(10.5R15 7JJ TIRE)
52163APLATE, REAR BUMPER, RH
main52163-89101i198808-199501
52164APLATE, REAR BUMPER, LH
main52164-89101i198808-199501
52181ARM, REAR BUMPER, RH
main52181-89117i198808-199208
main52181-89118i198808-199501
52182ARM, REAR BUMPER, LH
main52182-89114i198808-199208
main52182-89115i198808-199501
9011208035
main90112-08035
9011208066
main90112-08066
9011912038
main90119-12038
9017908096
main90179-08096

12 parts on this diagram · 2 diagrams in section
