Toyota 4-RUNNER TRUCK (JPP) — REAR BODY ASSEMBLY TMM USA

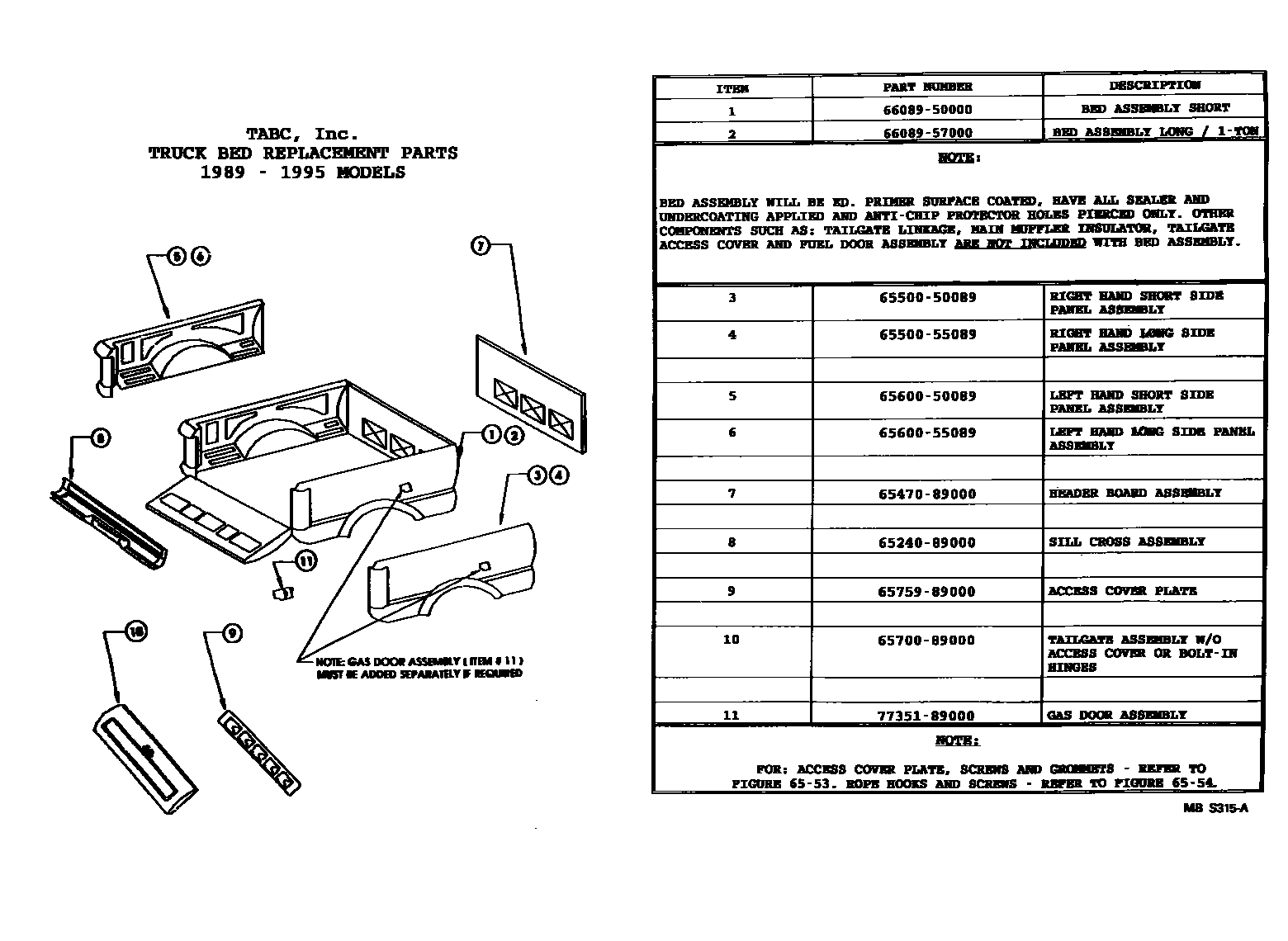

Parts diagram

6554REAR BODY SIDE PANEL

→ Go to FIG 65-54

6524089000CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-89000

6547089000BOARD ASSY, HEADER

main65470-89000

6550050089PANEL ASSY, REAR BODY SIDE, RH

main65500-50089

6550055089PANEL ASSY, REAR BODY SIDE, RH

main65500-55089

6560050089PANEL ASSY, REAR BODY SIDE, LH

main65600-50089

6560055089PANEL ASSY, REAR BODY SIDE, LH

main65600-55089

6570089000GATE ASSY, REAR BODY TAIL

main65700-89000

6575989000COVER, TAIL GATE SERVICE HOLE

main65759-89000

6608950000

main66089-50000

6608957000

main66089-57000

7735189000LID, FUEL FILLER OPENING, OUTER

main77351-89000

12 parts on this diagram · 1 diagram in section

REAR BODY ASSEMBLY TMM USA for Toyota 4-RUNNER TRUCK (JPP)

This section contains 12 genuine Toyota parts for the REAR BODY ASSEMBLY TMM USA system of the Toyota 4-RUNNER TRUCK (JPP). Key components include: REAR BODY SIDE PANEL, CROSSMEMBER, REAR BODY FLOOR, TAIL, BOARD ASSY, HEADER, PANEL ASSY, REAR BODY SIDE, RH.
