Toyota 4-RUNNER TRUCK (JPP) — PACKAGE TRAY PANEL

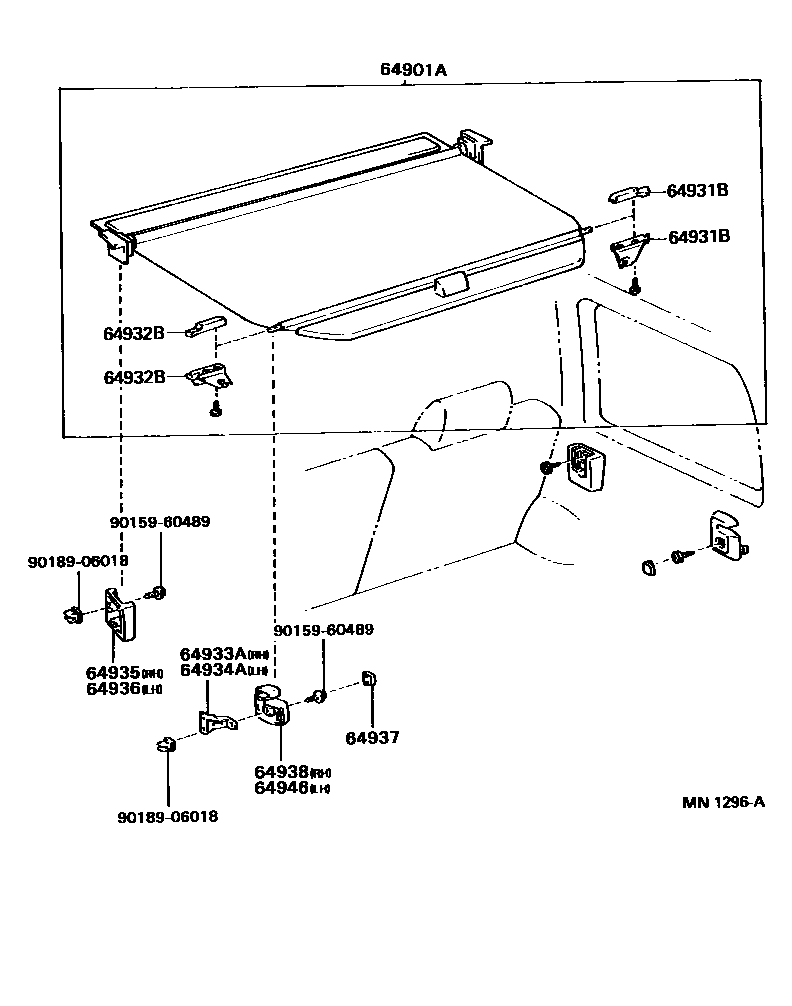

Parts diagram
64901ARETRACTOR SUB-ASSY, TONNEAU COVER
main64901-35020-B1i199108-199511
GRAY,TRIM1#
sub64901-35020
main64901-35020-E1i199108-199308
TAN,TRIM4#
sub64901-35020
main64901-35020-E3i199308-199511
OAK,TRIM4#
sub64901-35020
main64901-35020-J1i199108-199511
BLUE,TRIM8#
sub64901-35020
64931BHANGER, TONNEAU COVER, RH
main64931-35010-B0i199108-199511
GRAY,TRIM1#,UPPER
main64931-35010-E0i199108-199308
OAK,TRIM4#,UPPER
main64931-35010-E1i199308-199511
OAK,TRIM4#,UPPER
main64931-35010-J0i199108-199511
BLUE,TRIM8#,UPPER
main64951-35010-B0i199108-199511
GRAY,TRIM1#,LOWER
main64951-35010-E0i199108-199308
TAN,TRIM4#,LOWER
main64951-35010-E1i199308-199511
OAK,TRIM4#,LOWER
main64951-35010-J0i199108-199511
BLUE,TRIM8#,LOWER
64932BHANGER, TONNEAU COVER, LH
main64932-35010-B0i199108-199511
GRAY,TRIM1#,UPPER
main64932-35010-E0i199108-199308
TAN,TRIM4#,UPPER
main64932-35010-E1i199308-199511
OAK,TRIM4#,UPPER
main64932-35010-J0i199108-199511
BLUE,TRIM8#,UPPER
main64952-35010-B0i199108-199511
GRAY,TRIM1#,LOWER
main64952-35010-E0i199108-199308
OAK,TRIM4#,LOWER
main64952-35010-E1i199308-199511
OAK,TRIM4#,LOWER
main64952-35010-J0i199108-199511
BLUE,TRIM8#,LOWER
64933ABRACKET, TONNEAU COVER HOLDER, RH
main64933-35020i199108-199511
64934ABRACKET, TONNEAU COVER HOLDER, LH
main64934-35020i199108-199511
64935HOLDER, TONNEAU COVER, RH
main64935-35010-B0i199108-199511
GRAY,TRIM1#
sub64935-35010
main64935-35010-E0i199108-199308
TAN,TRIM4#
sub64935-35010
main64935-35010-E1i199308-199511
OAK,TRIM4#
sub64935-35010
main64935-35010-J0i199108-199511
BLUE,TRIM8#
sub64935-35010
64936HOLDER, TONNEAU COVER, LH
main64936-35010-B0i199108-199511
GRAY,TRIM1#
sub64936-35010
main64936-35010-E0i199108-199308
TAN,TRIM4#
sub64936-35010
main64936-35010-E1i199308-199511
OAK,TRIM4#
sub64936-35010
main64936-35010-J0i199108-199511
BLUE,TRIM8#
sub64936-35010
64937CAP, TONNEAU COVER HOLDER, NO.1
main64937-35020-B0i199108-199511
GRAY,TRIM1#
sub64937-35020
main64937-35020-E0i199108-199308
TAN,TRIM4#
sub64937-35020
main64937-35020-E1i199308-199511
OAK,TRIM4#
sub64937-35020
main64937-35020-J0i199108-199511
BLUE,TRIM8#
sub64937-35020
64938HOOK, TONNEAU COVER, A
main64938-35010-B0i199108-199511
GRAY,TRIM1#
sub64938-35010
main64938-35010-E0i199108-199308
TAN,TRIM4#
sub64938-35010
main64938-35010-E1i199308-199511
OAK,TRIM4#
sub64938-35010
main64938-35010-J0i199108-199511
BLUE,TRIM8#
sub64938-35010
64946HOOK, TONNEAU COVER, B
main64946-35010-B0i199108-199511
GRAY,TRIM1#
sub64946-35010
main64946-35010-E0i199108-199308
TAN,TRIM4#
sub64946-35010
main64946-35010-E1i199308-199511
OAK,TRIM4#
sub64946-35010
main64946-35010-J0i199108-199511
BLUE,TRIM8#
sub64946-35010
9015960489
main90159-60489
9018906018
main90189-06018

12 parts on this diagram · 1 diagram in section
