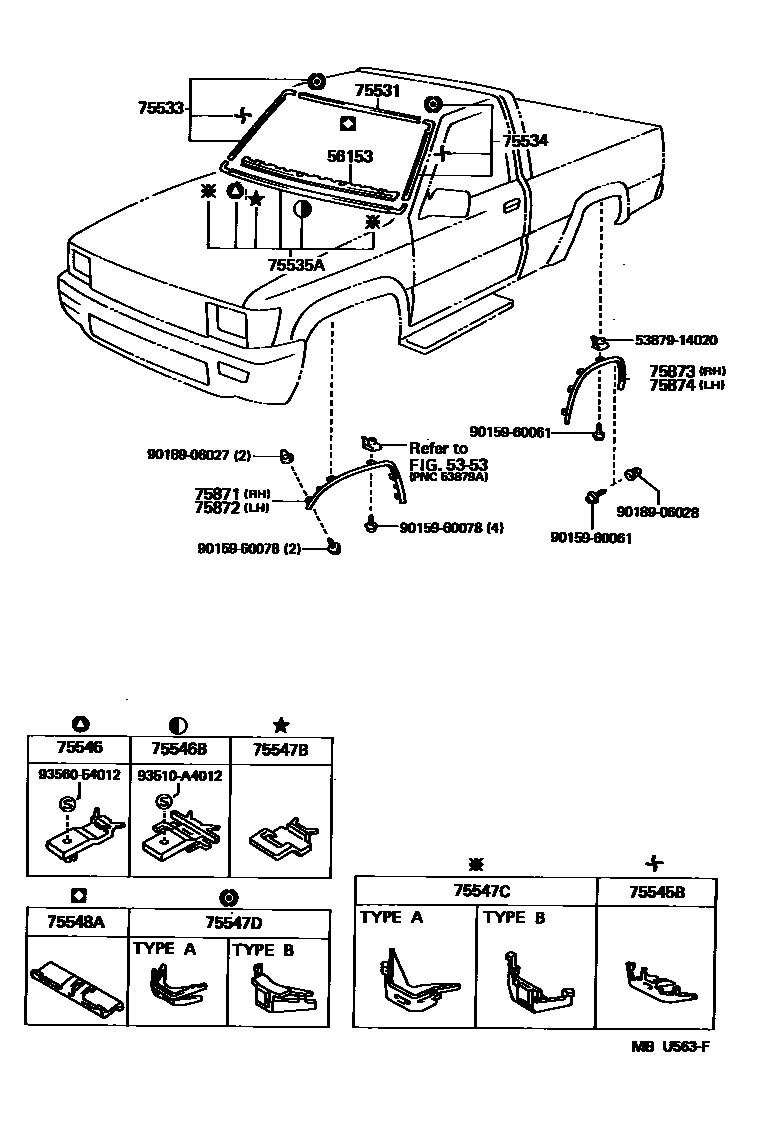

Toyota 4-RUNNER TRUCK (JPP) — MOULDING

0001 1 0002 1

5353

56153MOULDING, FRONT WINDOW, INNER CENTER

main56153-35010iRN10#,110,13#,VZN10#,110,13#199105-199511

main56153-89102iRN10#,110,13#,VZN10#,110,13#198808-198909

sub56153-89103

main56153-89103iRN10#,110,13#,VZN10#,110,13#198909-199105

sub56153-35010

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-35040iRN10#,110,13#,VZN100,110,13#199211-199308

NO PAINT REQ.,PLANT.NO.P11

sub75531-35041

main75531-35041iRN10#,110,13#,VZN100,110,13#199308-199501

NO PAINT REQ.,PLANT.NO.P11

sub75531-35042

main75531-35042iRN13#,VZN13#199501-199511

NO PAINT REQ.,PLANT.NO.P11

main75531-35070iRN10#,110,13#,VZN100,110,13#199208-199211

NO PAINT REQ.

sub75531-35071

main75531-35070iRN10#,110,13#,VZN100,110,13#199211-199308

NO PAINT REQ.,PLANT.NO.A51,A52

sub75531-35071

main75531-35071iRN10#,110,13#,VZN100,110,13#199211-199511

NO PAINT REQ.

main75531-35071iRN10#,110,13#,VZN100,110,13#199308-199511

NO PAINT REQ.,PLANT.NO.A51,A52

main75531-35100iRN10#,110,13#,VZN100,110,13#199303-199308

CHROME PLATED PACKAGE

sub75531-35101

main75531-35101iRN10#,110,13#,VZN100,110,13#199308-199501

CHROME PLATED PACKAGE

sub75531-35102

main75531-35102iRN13#,VZN13#199501-199511

CHROME PLATED PACKAGE

main75531-89105iRN10#,110,VZN10#,110198808-199108

NO PAINT REQ.,PLANT NO. P11

sub75531-35040

main75531-89105iRN10#,110,13#,VZN10#,110,13#198904-198907

NO PAINT REQ.,PLANT NO.P11

sub75531-35040

main75531-89105iRN10#,110,13#,VZN10#,110,13#199108-199211

NO PAINT REQ.,PLANT.NO.P11

sub75531-35040

main75531-89106iRN10#,110,13#,VZN10#,110,13#198808-198911

CHROME PLATED PACKAGE

sub75531-89111

main75531-89109iRN10#,110,13#,VZN10#,110,13#199108-199211

NO PAINT REQ.,PLANT.NO.A51,A52

sub75531-35070

main75531-89109iRN10#,110,13#,VZN10#,110,13#198911-199108

NO PAINT REQ.,PLANT NO. A51,A52

sub75531-35070

main75531-89109iRN10#,110,13#,VZN10#,110,13#198808-199208

NO PAINT REQ.

sub75531-35070

main75531-89111iRN10#,110,13#,VZN10#,110,13#198911-199303

CHROME PLATED PACKAGE

sub75531-35100

75533MOULDING, WINDSHIELD, OUTSIDE RH

main76503-89103iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. P11

sub76503-89105

main76503-89103iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.P11

sub76503-89105

main76503-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

CHROME PLATED PACKAGE

main76503-89105iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.A51,A52

main76503-89105iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. A51,A52

75534MOULDING, WINDSHIELD, OUTSIDE LH

main76504-89103iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.P11

sub76504-89105

main76504-89103iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. P11

sub76504-89105

main76504-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

CHROME PLATED PACKAGE

main76504-89105iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.A51,A52

main76504-89105iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. A51,A52

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75504-89103iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. P11

sub75504-89105

main75504-89103iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.P11

sub75504-89105

main75504-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

CHROME PLATED PACKAGE

main75504-89105iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.A51,A52

main75504-89105iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. A51,A52

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-89102iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. P11

main75545-89102iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.P11

main75545-89102iRN10#,110,13#,VZN10#,110,13#198808-199511

CHROME PLATED PACKAGE

main75545-89103iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. A51,A52

main75545-89103iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.A51,A52

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-89106iRN10#,110,13#,VZN10#,110,13#198808-199511

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-89103iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.P11

main75546-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

CHROME PLATED PACKAGE

main75546-89103iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. P11

main75546-89105iRN10#,110,13#,VZN10#,110,13#199108-199511

PLANT.NO.A51,A52

main75546-89105iRN10#,110,13#,VZN10#,110,13#198808-199108

PLANT NO. A51,A52

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

CHROME PLATED PACKAGE

main75547-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

RH

main75547-89108iRN10#,110,13#,VZN10#,110,13#198808-199511

LH

75547CCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-89106iRN10#,110,13#,VZN10#,110,13#199108-199511

RH,TYPE A

main75547-89106iRN10#,110,13#,VZN10#,110,13#198808-199108

CHROME PLATED PACKAGE,RH,TYPE A

main75547-89107iRN10#,110,13#,VZN10#,110,13#198808-199108

CHROME PLATED PACKAGE,LH,TYPE A

main75547-89107iRN10#,110,13#,VZN10#,110,13#199108-199511

LH,TYPE A

main75547-89111iRN10#,110,13#,VZN10#,110,13#198808-199511

RH,TYPE B

main75547-89112iRN10#,110,13#,VZN10#,110,13#198808-199511

LH,TYPE B

75547DCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-89104iRN10#,110,13#,VZN10#,110,13#198808-199108

CHROME PLATED PACKAGE,RH,TYPE A

main75547-89104iRN10#,110,13#,VZN10#,110,13#199108-199511

RH,TYPE A

main75547-89105iRN10#,110,13#,VZN10#,110,13#199108-199511

LH,TYPE A

main75547-89105iRN10#,110,13#,VZN10#,110,13#198808-199108

CHROME PLATED PACKAGE,LH,TYPE A

main75547-89109iRN10#,110,13#,VZN10#,110,13#198808-199511

RH,TYPE B

main75547-89110iRN10#,110,13#,VZN10#,110,13#198808-199511

LH,TYPE B

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-16030iRN10#,110,13#,VZN10#,110,13#198808-199511

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-89104iVZN10#,110..DLX198808-198901

TABC PRODUCTS

main75085-89104iRN10#,110;VZN100,110..SR5..CBU198808-199501

PLATING TYPE

main75085-89104iVZN100,110..SR5..IV3198901-198908

TABC PRODUCTS & PLATING TYPE

main75085-89105iVZN10#..USA199108-199501

main75085-89105iVZN110;VZN100..CND198808-199501

W(FRONT WHEEL OPENING EXTENTION)

main75085-89106iVZN13#198904-199511

PLATING TYPE

main75085-89107iVZN13#198904-199511

W(FRONT WHEEL OPENING EXTENTION)

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-89104iVZN100,110..SR5..IV3198901-198908

TABC PRODUCTS & PLATING TYPE

main75086-89104iRN10#,110198808-199501

PLATING TYPE

main75086-89104iRN10#,110;VZN100,110..SR5..CBU198808-198901

TABC PRODUCTS

main75086-89105iVZN10#,110..IV3198808-199501

W(FRONT WHEEL OPENING EXTENTION)

main75086-89105iVZN10#..USA199108-199501

main75086-89106iVZN13#198904-199511

PLATING TYPE

main75086-89107iVZN131..4D198904-199511

W(FRONT WHEEL OPENING EXTENTION)

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-89105iVZN13#..4D198904-199511

PLATING TYPE

main75087-89106iVZN130..4D198904-199511

W(REAR WHEEL OPENING EXTENTION)

main75087-89107iVZN13#..2D198904-199308

PLATING TYPE

main75087-89108iVZN13#..2D198904-199308

W(REAR WHEEL OPENING EXTENTION)

main75873-89106iVZN10#,110..DLX..CBU198808-199501

PLATING TYPE

main75873-89106iRN10#,110;VZN100,110..SR5..CBU198808-198901

TABC PRODUCTS

main75873-89106iRN10#,110;VZN100,110..SR5..CBU198808-198908

TABC PRODUCTS & PLATING TYPE

main75873-89108iVZN100,110..SR5198808-199501

W(REAR WHEEL OPENING EXTENTION)

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-89105iVZN13#..4D198904-199511

PLATING TYPE

main75088-89106iVZN130..4D198904-199511

W(REAR WHEEL OPENING EXTENTION)

main75088-89107iVZN13#..2D198904-199308

PLATING TYPE

main75088-89108iVZN13#..2D198904-199308

W(REAR WHEEL OPENING EXTENTION)

main75874-89106iVZN10#,110..DLX..IV3198808-198908

TABC PRODUCTS & PLATING TYPE

main75874-89106iRN10#,110;VZN100,110..SR5..CBU198808-199501

PLATING TYPE

main75874-89106iRN10#,110;VZN100,110..SR5..CBU198808-198901

TABC PRODUCTS

main75874-89108iVZN10#,110..CBU198808-199501

W(REAR WHEEL OPENING EXTENTION)

5387914020LINER, FRONT FENDER, LH

main53879-14020

9015960061

main90159-60061

9015960078

main90159-60078

9018906027

main90189-06027

9018906028

main90189-06028

93510A4012

main93510-A4012

9356054012

main93560-54012

24 parts on this diagram · 2 diagrams in section
