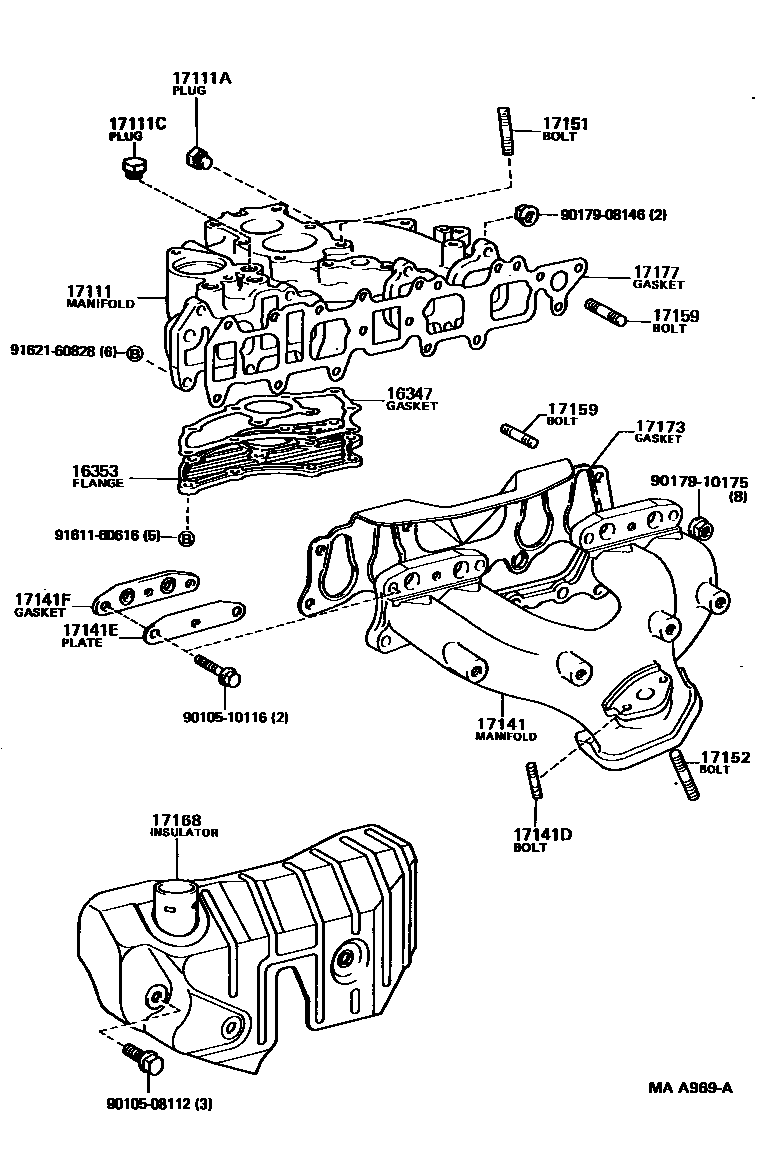

Toyota 4-RUNNER TRUCK (JPP) — MANIFOLD

0001 1 0002 1 0003 1

16347GASKET, WATER BY-PASS

main16347-35050i22R..RN8#,90198808-199008

16353FLANGE, WATER BY-PASS

main16353-35020i22R..RN8#,90198808-199008

17111MANIFOLD, INTAKE

main17101-35050i22RE..RN12#,8#,90198808-199501

main17111-35090i22R..RN8#,90198808-199008

main17111-65900i3VZE..VZN120,85,9#198808-199511

17111APLUG, NO.1

main90345-51006i22R#..RN12#,8#,90198808-199501

17111CPLUG, NO.3

main90340-16004i22R..RN8#,90198808-199008

17141MANIFOLD, EXHAUST

main17141-35080i22R..RN8#,90..G198808-198911

main17141-35100i22R..RN80..W;22RE..RN12#,8#,90198808-199501

main17141-35140i22R..RN8#,90198911-199008

main17141-65010i3VZE..VZN120,85,9#198808-199109

sub17141-65011

main17141-65011i3VZE..VZN120,85,9#199109-199511

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128i22R..RN8#,90..G198808-199008

17141EPLATE, EXHAUST MANIFOLD

main17148-35030i22R..RN8#,90..G198808-198911

17141FGASKET(FOR EXHAUST MANIFOLD PLATE)

main17378-35020i22R..RN8#,90..G198808-198911

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08051i22R..RN8#,90198808-199008

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10087i22R#..RN12#,8#,90198808-199501

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08172i22R#..RN12#,8#,90198808-199501

INTAKE TO HEAD

main90116-08262i3VZE..VZN120,85,9#198808-199511

INTAKE MANIFOLD

main90116-10064i22R#..RN12#,8#,90198808-199501

EXHAUST MANIFOLD LWR

main90116-10067i22R#..RN12#,8#,90198808-199501

EXHAUST MANIFOLD UPR

main90116-10150i3VZE..VZN120,85,9#198808-199511

EXHAUST MANIFOLD

main92122-60825i22RE..RN12#,8#,90198808-199501

INTAKE TO SURGE TANK

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17167-35160i22R..RN8#,90198808-199008

main17167-35180i22RE..RN12#,8#,90198808-199501

main17168-65010i3VZE..VZN120,85,9#198808-198908

sub17168-65020

main17168-65020i3VZE..VZN120,85,9#198908-199008

main17168-65030i3VZE..VZN120,85,9#199008-199511

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-35120i22R#..RN12#,8#,90198808-199501

main17173-65020i3VZE..VZN120,85,9#198808-199011

sub17173-65031

main17173-65031i3VZE..VZN120,85,9#199011-199511

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-35030i22RE..RN12#,8#,90198808-199003

sub17177-35050

main17177-35050i22R..RN8#,90198808-199501

main17177-65010i3VZE..VZN120,85,9#198808-199511

9010508112

main90105-08112

9010510116

main90105-10116

9017908146

main90179-08146

9017910175

main90179-10175

9161160616

main91611-60616

9162160828

main91621-60828

21 parts on this diagram · 3 diagrams in section
