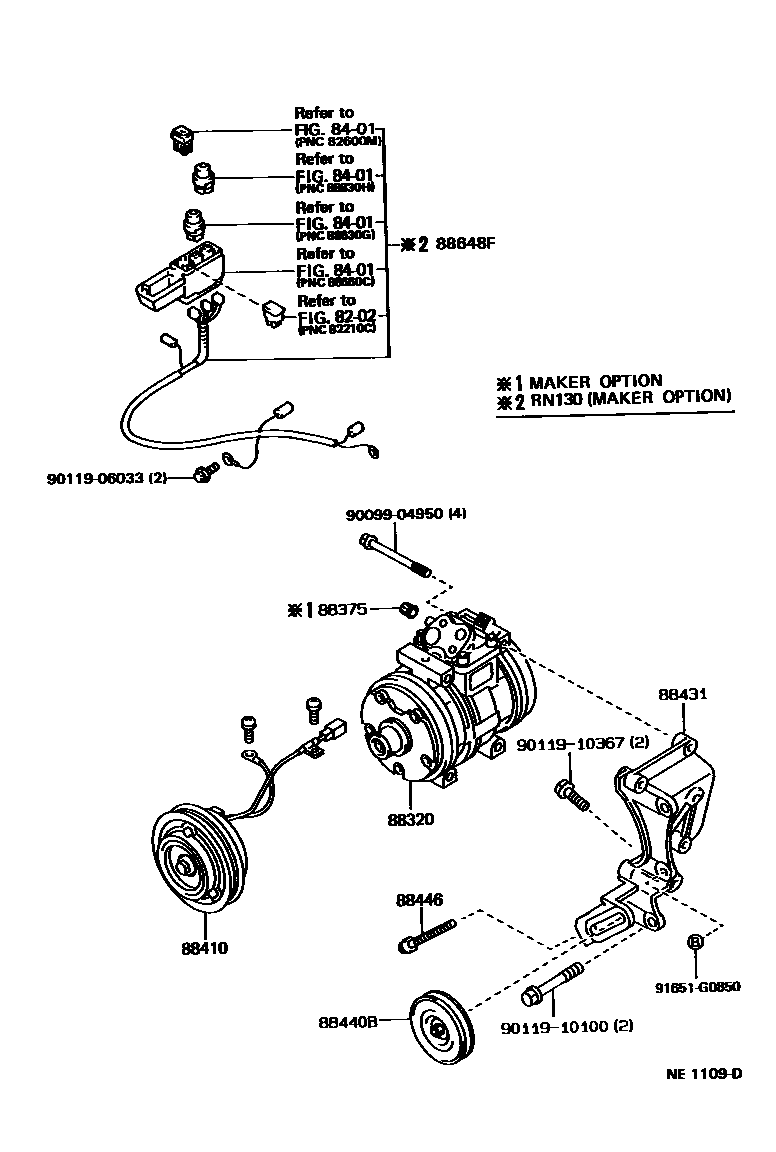

Toyota 4-RUNNER TRUCK (JPP) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

8202

8401

88320COMPRESSOR ASSY, COOLER

main88320-34010iVZN100,110199401-199501

sub88320-35H92

main88320-35270iRN10#,110198808-199401

sub88320-35H91

main88320-35300iVZN10#,110198808-199401

sub88320-35H91

main88320-35340iRN13#198904-199108

sub88320-35341

main88320-35341iRN13#199108-199308

sub88320-22H91

main88320-35341iRN130199308-199511

MAKER OPTION

sub88320-22H91

main88320-35350iVZN130198904-198908

sub88320-35351

main88320-35350iVZN130198908-199104

MAKER OPTION

sub88320-35351

main88320-35351iVZN13#199104-199308

sub88320-22H91

main88320-35351iVZN131198908-199104

DEALER OPTION

sub88320-22H91

main88320-35440iRN131199308-199511

DEALER OPTION

sub88320-26H91

main88320-35450iVZN13#199308-199511

sub88320-26H91

main88320-35530iRN10#,110199401-199501

sub88320-35H92

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-20010iRN130198904-199108

88410CLUTCH ASSY, MAGNET

main88410-34010iVZN100,110199401-199501

main88410-35080iVZN10#,110..USA198808-198908

main88410-35080iVZN10#,110..USA198908-199108

MAKER OPTION

main88410-35110iVZN10#,110..USA198908-199108

DEALER OPTION

main88410-35110iVZN10#,110,13#198904-199401

main88410-35120iRN10#,110198808-199401

main88410-35150iRN130199308-199511

MAKER OPTION

main88410-35150iRN13#198904-199308

main88410-35270iRN131199308-199511

DEALER OPTION

main88410-35280iVZN13#199308-199511

main88410-60310iRN10#,110199401-199501

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-35121iVZN130198904-198909

main88431-35122iVZN130198908-199511

main88431-35150iRN10#,110,13#198808-199511

main88431-35180iVZN10#,110..USA198808-198909

main88431-35181iVZN10#,110..USA198908-199501

88440BPULLEY ASSY, IDLE

main88440-35030iRN10#,110,13#198808-199511

main88440-35040iVZN10#,110,130198808-199511

sub88440-35020

88446BOLT, IDLE PULLEY

main88446-35030iRN10#,110,13#,VZN10#,110,130198808-199511

88648FWIRE, MAGNET CLUTCH

main88648-35030iRN13#,VZN13#199108-199308

main88648-35130iRN13#,VZN13#199308-199511

main88648-89130iRN13#,VZN130198904-198908

sub88648-89139

main88648-89139iRN13#,VZN13#198908-199108

9009904950

main90099-04950

9011906033

main90119-06033

9011910100

main90119-10100

9011910367

main90119-10367

91651G0850

main91651-G0850

14 parts on this diagram · 4 diagrams in section
