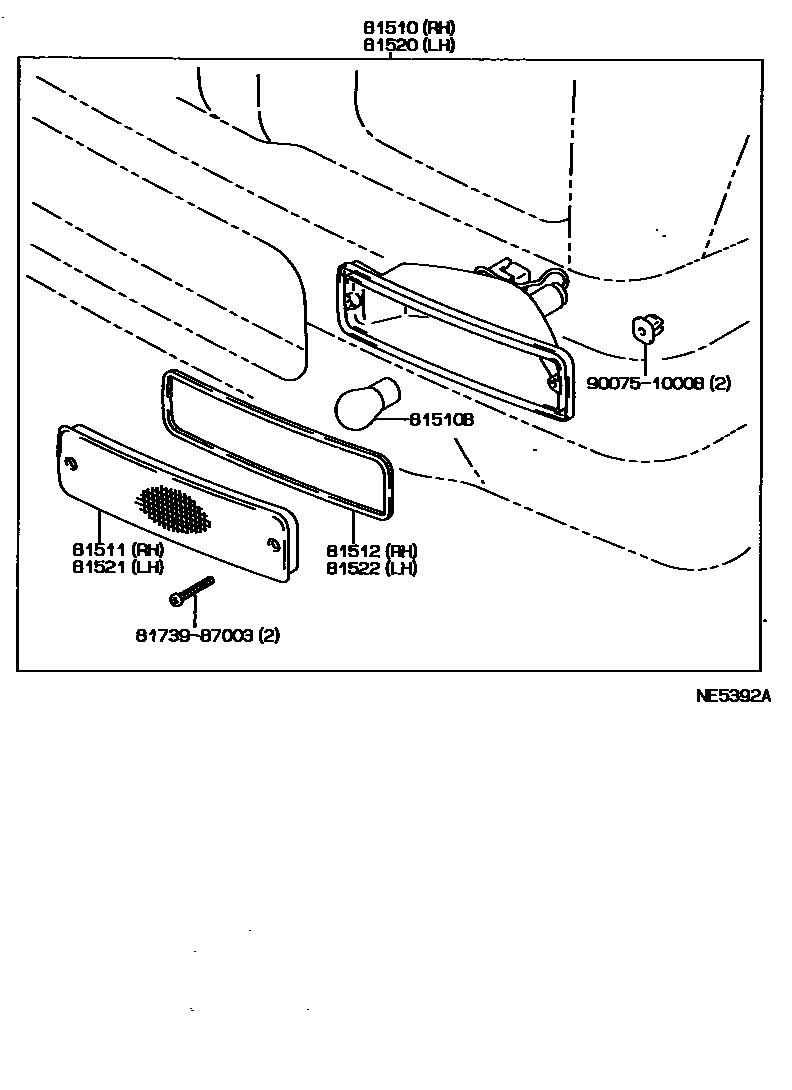

Toyota 4-RUNNER TRUCK (JPP) — FRONT TURN SIGNAL LAMP

0001 1 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-35080iVZN120199108-199511

main81510-89134iRN8#,90,VZN85,9#198808-199501

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270iRN12#,8#,90,VZN120,85,9#198808-199511

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-35070iVZN120199108-199511

main81511-35090iRN8#,90,VZN85,9#199208-199501

main81511-89133iRN8#,90,VZN85,9#198808-199208

sub81511-35090

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-89133iRN12#,8#,90,VZN120,85,9#198808-199501

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-35080iVZN120199108-199511

main81520-89134iRN8#,90,VZN85,9#198808-199501

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-35070iVZN120199108-199511

main81521-35090iRN8#,90,VZN85,9#199208-199501

main81521-89133iRN8#,90,VZN85,9#198808-199208

sub81521-35090

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-89133iRN12#,8#,90,VZN120,85,9#198808-199501

8173987003

main81739-87003

9007510008

main90075-10008

9 parts on this diagram · 2 diagrams in section
