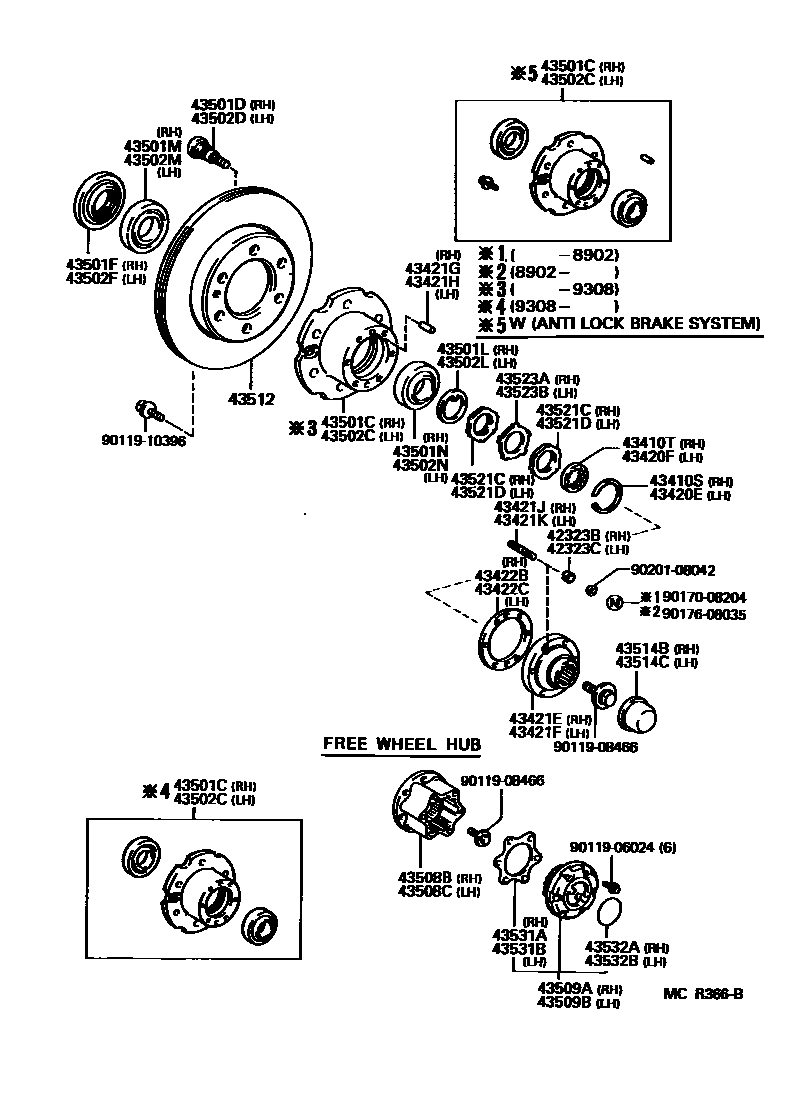

Toyota 4-RUNNER TRUCK (JPP) — FRONT AXLE HUB

42323BWASHER, CONE (FOR FRONT AXLE SHAFT RH)

main42323-60010iRN10#,110,13#,VZN10#,110,13#198808-199511

42323CWASHER, CONE (FOR FRONT AXLE SHAFT LH)

main42323-60010iRN10#,110,13#,VZN10#,110,13#198808-199511

43410SRING, SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-27023iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.5

43410TSPACER (FOR FRONT DRIVE SHAFT RH)

main90560-27005iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.0

main90560-27010iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.8,T=1.8

main90560-27011iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.25,T=2.25

43420ERING, SNAP (FOR FRONT DRIVE SHAFT LH)

main90520-27023iRN10#,110,13#,VZN10#,110,13#198808-199511

T=1.5

43420FSPACER (FOR FRONT DRIVE SHAFT LH)

main90560-27005iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.0

main90560-27010iRN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#198808-199511

T=1.8,T=1.8

main90560-27011iRN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#198808-199511

T=2.25,T=2.25

43421EFLANGE, FRONT AXLE OUTER SHAFT, RH

main43421-35010iRN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13#198808-199511

43421FFLANGE, FRONT AXLE OUTER SHAFT, LH

main43421-35010iRN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5198808-199511

43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90250-07057iRN10#,110,13#,VZN10#,110,13#198808-199511

43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90250-07057iRN10#,110,13#,VZN10#,110,13#198808-199511

43421JBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90116-08325iRN13#,VZN13#198808-199511

43421KBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90116-08325iRN10#,110,13#,VZN10#,110,13#198808-199511

43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH

main43422-60010iRN13#,VZN13#199506-199511

main43422-60020iRN10#,110,13#,VZN10#,110,13#198808-199506

sub43422-60010

43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH

main43422-60010iRN13#,VZN13#199506-199511

main43422-60020iRN10#,110,13#,VZN10#,110,13#198808-199506

sub43422-60010

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43503-29015iVZN13#199308-199511

W(*66)

sub43503-29085

main43511-35100iRN131..4FC;RN10#,110,130,VZN10#,110,13#199108-199308

sub43511-35905

main43511-35905iRN10#,110,13#,VZN10#,110,13#198808-199108

sub43511-39015

main43511-39015iRN10#,110,13#,VZN100,110,13#199308-199511

sub43502-29095

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iRN10#,110,13#,VZN10#,110,13#198808-199511

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-66001iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA199108-199406

INNER

sub90311-66003

main90311-66001iRN10#,110,13#,VZN10#,110,13#198808-199509

sub90311-66003

main90311-66001iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA199108-199406

W(*A.D.D) & W/O(FREEWHEEL HUB),INNER

sub90311-66003

main90311-66003iRN13#,VZN13#199509-199511

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-42030iRN10#,110,13#,VZN10#,110,13#198808-199511

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36064iRN10#,110,13#,VZN100,110,13#199308-199511

sub90368-49084

main90368-49084iRN10#,110,13#,VZN10#,110,13#198808-199308

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90080-36067iRN10#,110,13#,VZN100,110,13#199308-199511

sub90368-45087

main90368-45087iRN10#,110,13#,VZN10#,110,13#198808-199308

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43503-29015iVZN13#199308-199511

W(*66)

sub43503-29085

main43511-35100iRN10#,110,13#,VZN10#,110,13#199108-199308

sub43511-35905

main43511-35905iRN10#,110,13#,VZN10#,110,13#198808-199108

sub43511-39015

main43511-39015iRN10#,110,13#,VZN100,110,13#199308-199511

sub43502-29095

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iRN10#,110,13#,VZN10#,110,13#198808-199511

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-66001iRN10#,110,13#,VZN10#,110,13#198808-199509

sub90311-66003

main90311-66003iRN13#,VZN13#199509-199511

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-42030iRN10#,110,13#,VZN10#,110,13#198808-199511

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36064iRN10#,110,13#,VZN100,110,13#199308-199511

TIMKEN

sub90368-49084

main90368-49084iRN10#,110,13#,VZN10#,110,13#198808-199106

KOYO

main90368-49084iRN10#,110..G;RN101,110..4FC;RN13#,VZN10#,110,13#199106-199308

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90080-36067iRN10#,110,13#,VZN100,110,13#199308-199511

TIMKEN

sub90368-45087

main90368-45087iRN10#,110..G;RN101,110..4FC;RN13#,VZN10#,110,13#199106-199108

main90368-45087iRN10#,110,13#,VZN10#,110,13#198808-199308

KOYO

43508BBODY SUB-ASSY, FREE WHEEL HUB, RH

main43508-35010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

sub43508-35050

43508CBODY SUB-ASSY, FREE WHEEL HUB, LH

main43508-35010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

sub43508-35050

43509ACOVER SUB-ASSY, FREE WHEEL HUB, RH

main43509-35030iVZN110..4FC..DLX198808-199511

43509BCOVER SUB-ASSY, FREE WHEEL HUB, LH

main43509-35030iRN101,110,13#..4FC198808-199511

43512DISC, FRONT

main43512-35190iRN10#,110,13#,VZN10#,110,13#198808-199501

main43512-35200iRN13#,VZN13#199106-199511

main43512-35200iVZN13#199308-199511

W(*66)

43514BCAP, FRONT AXLE HUB GREASE, RH

main43423-35010iRN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5198808-199511

43514CCAP, FRONT AXLE HUB GREASE, LH

main43423-35010iRN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5198808-199511

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-60011iRN10#,110,13#,VZN10#,110,13#198808-199511

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-60011iRN10#,110,13#,VZN10#,110,13#198808-199511

43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH

main90215-42025iRN10#,110,13#,VZN10#,110,13#198808-199511

43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH

main90215-42025iRN10#,110,13#,VZN10#,110,13#198808-199511

43531AGASKET, FREE WHEEL HUB, RH

main43531-60010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

43531BGASKET, FREE WHEEL HUB, LH

main43531-60010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

43532ARING, FREE WHEEL HUB, RH

main43532-60010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

43532BRING, FREE WHEEL HUB, LH

main43532-60010iRN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX198808-199511

9011906024

main90119-06024

9011908466

main90119-08466

9011910396

main90119-10396

9017008204

main90170-08204

9017608035

main90176-08035

9020108042

main90201-08042

47 parts on this diagram · 1 diagram in section
