Toyota 4-RUNNER TRUCK (JPP) — EXHAUST PIPE

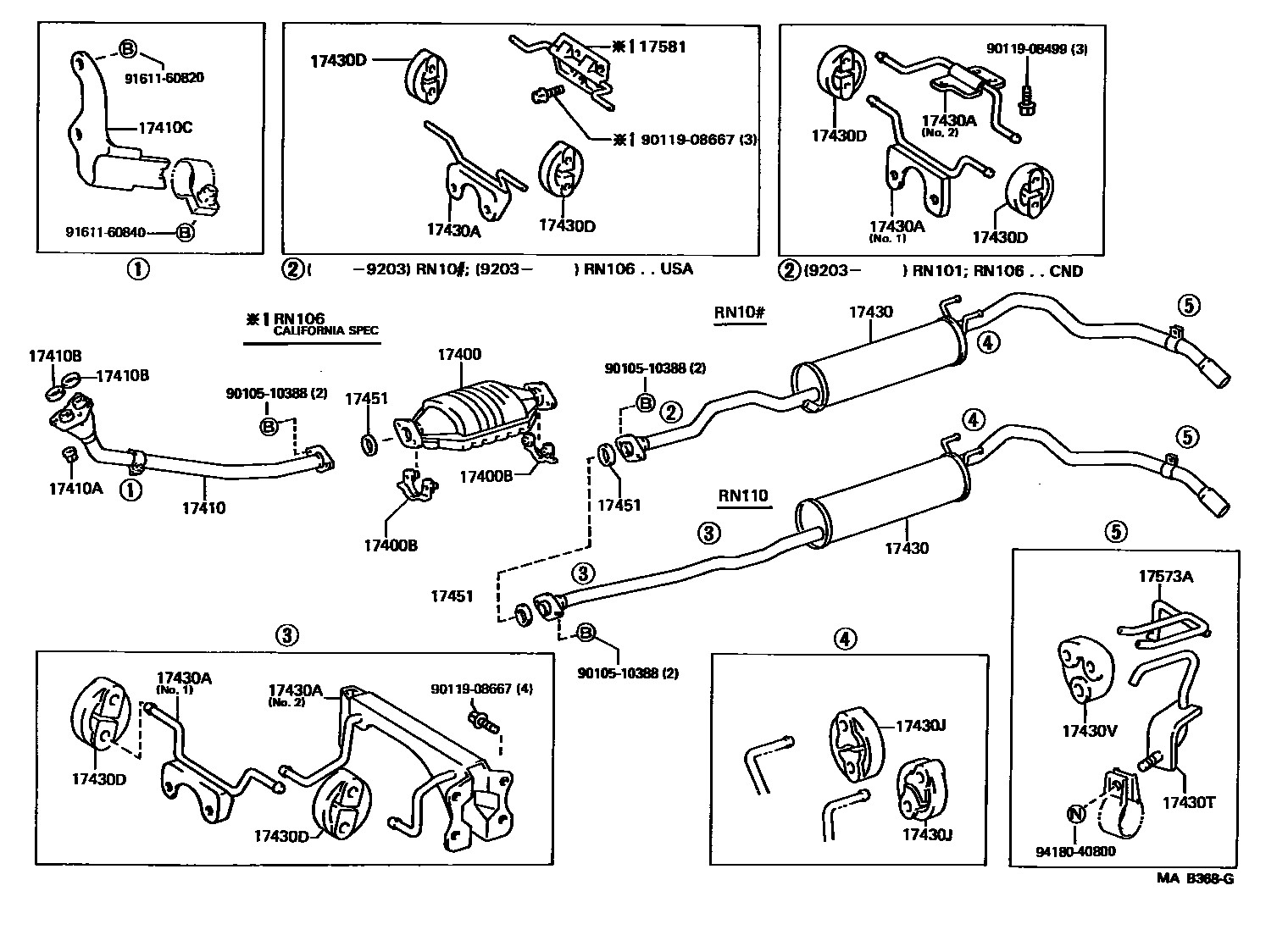

Parts diagram
17400CONVERTER ASSY, W/CATALYST
main18450-08010i199108-199208
(L)
main18450-08040i199208-199511
(L)
main18450-35130i199108-199208
main18450-35130i198808-199108
(J)
main18450-35150i199208-199511
(J)
main18450-35160i199208-199511
CALIFORNIA SPEC
main18450-65020i198808-199208
CALIFORNIA SPEC
main18450-65020i198808-199008
main18450-65030i199008-199511
main18450-65080i199308-199511
CALIFORNIA SPEC
17400BRETAINER, EXHAUST PIPE
main18495-35060i199108-199502
RR
sub18495-35061
main18495-35060i199108-199502
FR
sub18495-35061
main18495-35061i199502-199511
main18495-38020i198808-199108
FR
main18495-38020i198808-199108
RR
17410PIPE ASSY, EXHAUST, FRONT
main17410-08020i199301-199511
(L)
main17410-35310i198808-199511
(J)
sub17410-35320
main17410-35320i198808-199511
main17410-35470i198808-198903
CALIFORNIA SPEC
sub17410-35471
main17410-35471i198903-199208
CALIFORNIA SPEC
sub17410-35481
main17410-35480i198808-198903
CALIFORNIA SPEC
sub17410-35481
main17410-35481i198903-199208
CALIFORNIA SPEC
main17410-35530i199208-199511
CALIFORNIA SPEC
main17410-35540i199208-199501
CALIFORNIA SPEC
main17410-65050i198808-198903
sub17410-65051
main17410-65051i198903-199511
sub17410-65061
main17410-65060i198808-198903
sub17410-65061
main17410-65061i198903-199511
main17410-65080i199308-199511
CALIFORNIA SPEC
sub17410-65090
main17410-65090i199308-199511
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
main90179-10070i198808-199511
17410BGASKET, EXHAUST PIPE
main90917-06038i198808-199505
main90917-06041i198808-199505
main90917-06064i199505-199511
main90917-06066i199505-199511
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
main17571-08020i199301-199511
(L)
main17571-35040i198808-199412
(J)
sub17571-35041
main17571-35041i199412-199511
main17571-65030i198808-199511
17430PIPE ASSY, EXHAUST, TAIL
main17430-35800i198808-199001
CALIFORNIA SPEC
sub17430-35801
main17430-35801i199001-199208
CALIFORNIA SPEC
main17430-35810i198808-199001
CALIFORNIA SPEC
sub17430-35811
main17430-35811i199001-199208
CALIFORNIA SPEC
main17430-35830i198808-199001
sub17430-35831
main17430-35831i199001-199501
sub17430-35832
main17430-35840i198808-199001
CALIFORNIA SPEC
sub17430-35841
main17430-35841i199001-199208
CALIFORNIA SPEC
main17430-35870i198808-199001
sub17430-35871
main17430-35871i199001-199410
main17430-35890i198808-199001
sub17430-35891
main17430-35891i199001-199501
main17430-3D050i198904-199001
sub17430-3D051
main17430-3D051i199001-199501
sub17430-3D052
main17430-3D052i199501-199511
main17430-3D060i198904-199001
sub17430-3D061
main17430-3D061i199001-199108
main17430-3D330i199108-199111
sub17430-3D331
main17430-3D331i199111-199211
sub17430-3D332
main17430-3D332i199211-199501
sub17430-3D333
main17430-3D333i199501-199511
main17430-3D400i199208-199501
CALIFORNIA SPEC
main17430-3D410i199208-199501
CALIFORNIA SPEC
main17430-3D420i199208-199501
CALIFORNIA SPEC
sub17430-3D421
main17430-3D421i199501-199511
CALIFORNIA SPEC
main17430-65080i198808-199001
sub17430-65081
main17430-65081i199001-199108
main17430-65090i198808-199001
sub17430-65091
main17430-65091i199001-199108
main17430-65100i198808-199001
sub17430-65101
main17430-65101i199001-199108
main17430-65110i199108-199111
sub17430-65111
main17430-65111i199111-199211
sub17430-65112
main17430-65112i199211-199501
main17430-65130i199108-199111
sub17430-65131
main17430-65131i199111-199208
sub17430-65132
main17430-65140i199108-199111
sub17430-65141
main17430-65141i199111-199211
sub17430-65142
main17430-65142i199211-199501
main17430-65220i199308-199501
CALIFORNIA SPEC
sub17430-65221
main17430-65221i199501-199511
CALIFORNIA SPEC
main17430-65230i199308-199501
CALIFORNIA SPEC
main17430-65240i199308-199501
CALIFORNIA SPEC
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
main17503-35130i198808-199501
NO.1
main17503-35170i199208-199501
CALIFORNIA SPEC,NO.1
main17503-35180i199208-199502
CALIFORNIA SPEC
sub17503-35181
main17503-35181i199502-199511
CALIFORNIA SPEC
main17503-65010i198808-199208
CALIFORNIA SPEC
main17503-65010i198808-199501
NO.1
main17503-65010i198808-199208
CALIFORNIA SPEC,NO.1
main17504-35090i198808-199501
NO.2
main17564-35140i198904-199502
sub17564-35141
main17564-35141i199502-199511
main17564-35150i198904-199502
sub17564-35151
main17564-35151i199502-199511
main17564-35190i199203-199501
NO.2
main17564-65010i199308-199502
CALIFORNIA SPEC
sub17564-65011
main17564-65011i199502-199511
CALIFORNIA SPEC
main17564-65020i199308-199501
CALIFORNIA SPEC,NO.1
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
main17563-08010i199208-199511
(L)
main17563-35020i198808-199511
(J)
17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)
main17565-08010i199208-199501
(L)
main17565-35010i199108-199511
(J)
main17565-35010i198808-199108
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
main17585-35040i198808-199511
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
main17566-35030i198808-199511
17451GASKET, EXHAUST PIPE
main90917-06041i198808-199511
FR
main90917-06041i199308-199505
CALIFORNIA SPEC,FR
main90917-06045i198808-199511
RR
main90917-06047i198809-199104
RR
sub90917-06045
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
main17575-35040i198808-199501
17581BRACKET, EXHAUST PIPE NO.1 INSULATOR SUPPORT
main17581-35020i198808-199208
9010510388
main90105-10388
9011908499
main90119-08499
9011908667
main90119-08667
9161160820
main91611-60820
9161160840
main91611-60840
9418040800
main94180-40800

21 parts on this diagram · 4 diagrams in section
