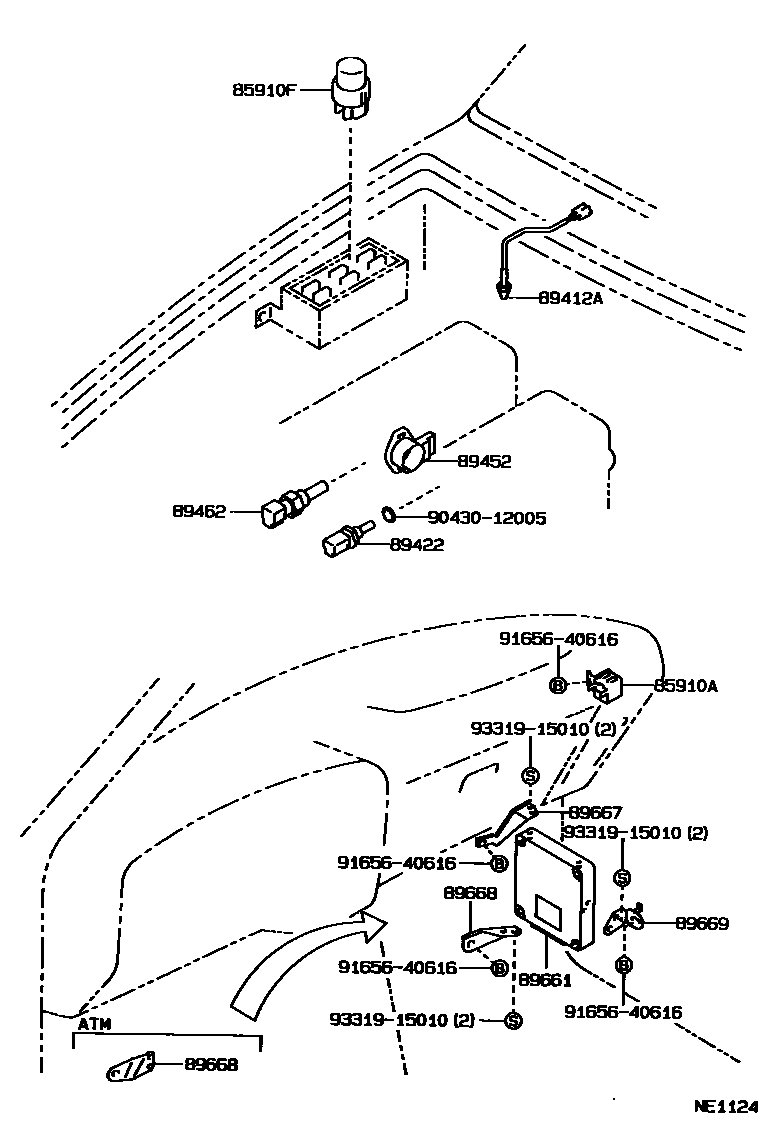

Toyota 4-RUNNER TRUCK (JPP) — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-35010iRN10#,110,13#,VZN10#,110,13#198808-199511

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iRN10#,110,13#,VZN10#,110,13#198808-199108

main90987-02009iRN10#,110,13#,VZN10#,110,13#199108-199511

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iRN10#,110,130,VZN10#,110,130..USA198808-199108

main89412-34010iRN10#,110,13#199310-199511

NIPPONDENSO

main89412-50010iVZN100,110,13#199108-199511

main89412-50010iRN10#,110,13#199308-199401

MATUSITA

main89412-50010iRN10#,110,13#199401-199511

MATSUSHITA

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRN10#,110,13#199108-199401

ENGINE BLOCK

main89422-20010iRN10#,110,13#198808-199511

main89422-35010iVZN10#,110,13#199108-199308

ENGINE BLOCK

main89422-35010iVZN10#,110,13#199008-199511

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iVZN10#,110,13#198908-199511

main89452-14050iRN10#,110,13#,VZN10#,110,13#198903-199008

main89452-22090iRN10#,110,13#199308-199511

main89452-28030iRN10#,110,VZN10#,110198808-198903

sub89452-20050

89462SWITCH, START INJECTOR TIME

main89462-20040iRN10#,110,13#,VZN10#,110,13#198808-199511

89661COMPUTER, ENGINE CONTROL

main89661-35150iRN10#,110,13#..5F198808-199008

main89661-35160iRN10#,110..5F..USA198808-199008

CALIFORNIA SPEC

main89661-35170iRN106,110,13#..4FC198808-198908

main89661-35180iRN106,110..4FC..USA198808-198908

CALIFORNIA SPEC

main89661-35190iVZN10#,110..R198808-198812

sub89661-35191

main89661-35191iVZN10#,110,13#..R198812-198908

sub89661-35192

main89661-35230iVZN105,110..4FC198808-198812

sub89661-35231

main89661-35231iVZN105,110..4FC198812-198908

main89661-35290iRN130..5F198904-199008

CALIFORNIA SPEC

main89661-35300iRN130..4FC198904-198908

CALIFORNIA SPEC

main89661-35320iVZN13#..4FC198904-198908

main89661-35330iRN10#,110,13#..4FC198908-199008

main89661-35340iRN10#,110..4FC..USA198908-199008

CALIFORNIA SPEC

main89661-35350iVZN10#,110,13#..R198908-198911

sub89661-35351

main89661-35351iVZN10#,110,13#..R198911-199008

sub89661-35352

main89661-35440iVZN105,110,13#..4FC198908-198911

sub89661-35441

main89661-35441iVZN105,110,13#..4FC198911-199008

main89661-35460iRN130..4FC198908-199008

CALIFORNIA SPEC

main89661-35510iVZN10#,110,13#..R199008-199108

sub89661-35511

main89661-35570iVZN110,13#..4FC199008-199108

main89661-35630iRN10#,110,13#..5F199008-199208

main89661-35640iRN101,110,13#..4FC199008-199208

main89661-35650iRN10#,110..5F..USA199008-199208

CALIFORNIA SPEC

main89661-35660iRN101,110..4FC199008-199208

CALIFORNIA SPEC

main89661-35670iRN130..5F199008-199208

CALIFORNIA SPEC

main89661-35680iRN130..4FC199008-199208

CALIFORNIA SPEC

main89661-35710iVZN10#,110,13#..R199108-199308

main89661-35770iVZN110,13#..4FC199108-199308

main89661-35830iRN10#,110,13#..5F199208-199308

sub89661-3D120

main89661-35840iRN101,110,13#..4FC199208-199308

main89661-35850iRN101,110,130..5F..USA199208-199511

CALIFORNIA SPEC

main89661-35860iRN101,110,130..4FC199208-199501

CALIFORNIA SPEC

main89661-35870iVZN100,110,13#..R199308-199511

main89661-35890iVZN100,110,130..R..USA199308-199511

CALIFORNIA SPEC

main89661-3D020iVZN110,13#..4FC199308-199511

main89661-3D030iVZN110,130..4FC..USA199308-199511

CALIFORNIA SPEC

main89661-3D070iRN10#,110,13#..5F199308-199511

main89661-3D080iRN101,110,131..4FC199308-199511

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35030iRN10#,110,13#..5F198808-199208

main89668-35040iVZN10#,110,13#;RN10#,110,13#..4FC198808-199511

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

9043012005

main90430-12005

9165640616

main91656-40616

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
