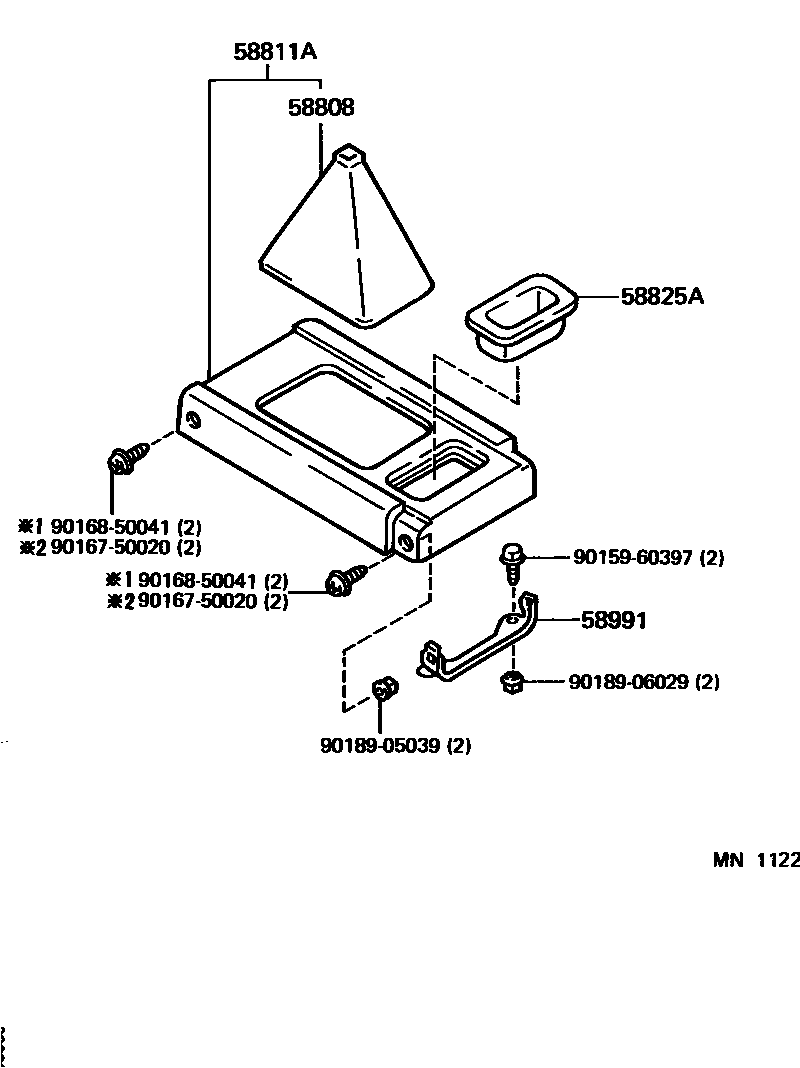

Toyota 4-RUNNER TRUCK (JPP) — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1W(REAR HEATER)

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-89114-02iRN121,85,90,VZN90..5F..SR5198808-199108

RED,TRIM3#

sub58808-89114

main58808-89114-03iRN121,85,90,VZN90..5F..SR5198808-199010

GRAY,TRIM1#

sub58808-89114

main58808-89114-04iRN121,85,90,VZN90..5F..SR5198808-199010

BLUE,TRIM8#

sub58808-89114

main58808-89114-06iRN121,85,90,VZN90..5F..SR5198808-199010

BROWN,TRIM4#

sub58808-89114

main58808-89114-B0iRN121,VZN90..5F..SR5199010-199501

MEDIUM GRAY,TRIM1#

sub58808-89114

main58808-89114-E0iRN121,VZN90..5F..SR5199010-199108

BROWN,TRIM4#

sub58808-89114

main58808-89114-J0iRN121,VZN90..5F..SR5199010-199501

MEDIUM BLUE,TRIM8#

sub58808-89114

58811ABOX, CONSOLE, FRONT

main58802-89114-02iRN121,85,90,VZN90..5F..SR5198808-199108

RED,TRIM3#

sub58802-89114

main58802-89114-03iRN121,85,90,VZN90..5F..SR5198808-199010

GRAY,TRIM1#

sub58802-89114

main58802-89114-04iRN85,90,VZN90..5F..SR5198808-199010

BLUE,TRIM8#

sub58802-89114

main58802-89114-06iRN85,90,VZN90..5F..SR5198808-199010

BROWN,TRIM4#

sub58802-89114

main58802-89114-B0iRN121,VZN90..5F..SR5199010-199501

MEDIUM GRAY,TRIM1#

sub58802-89114

main58802-89114-E0iRN121,VZN90..5F..SR5199010-199108

BROWN,TRIM4#

sub58802-89114

main58802-89114-J0iRN121,VZN90..5F..SR5199010-199501

MEDIUM BLUE,TRIM8#

sub58802-89114

main58811-89120-02iRN12#,VZN120,90..4FC198808-199108

RED,TRIM3#

main58811-89120-03iRN12#,VZN120,90..4FC198808-199511

GRAY,TRIM1#

main58811-89120-04iRN12#,VZN120,90..4FC198808-199511

BLUE,TRIM8#

main58811-89120-06iRN12#,VZN120,90..4FC198808-199108

BROWN,TRIM4#

main58811-89120-E0iVZN120199108-199308

TAN,TRIM4#

main58811-89120-E1iVZN120199308-199511

OAK,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-89111-02iRN121,85,90,VZN90..5F..SR5198808-199108

RED,TRIM3#

sub58825-89111

main58825-89111-03iRN121,85,90,VZN90..5F..SR5198808-199010

GRAY,TRIM1#

sub58825-89111

main58825-89111-04iRN121,85,90,VZN90..5F..SR5198808-199010

BLUE,TRIM8#

sub58825-89111

main58825-89111-06iRN121,85,90,VZN90..5F..SR5198808-199010

BROWN,TRIM4#

sub58825-89111

main58825-89111-B0iRN121,VZN90..5F..SR5199010-199501

MEDIUM GRAY,TRIM1#

sub58825-89111

main58825-89111-E0iRN121,VZN90..5F..SR5199010-199108

BROWN,TRIM4#

sub58825-89111

main58825-89111-J0iRN121,VZN90..5F..SR5199010-199501

MEDIUM BLUE,TRIM8#

sub58825-89111

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-89103iRN12#,85,90,VZN120,90..(4FC,5F)..SR5198808-199511

9015960397

main90159-60397

9016750020

main90167-50020

9016850041

main90168-50041

9018905039

main90189-05039

9018906029

main90189-06029

9 parts on this diagram · 5 diagrams in section
