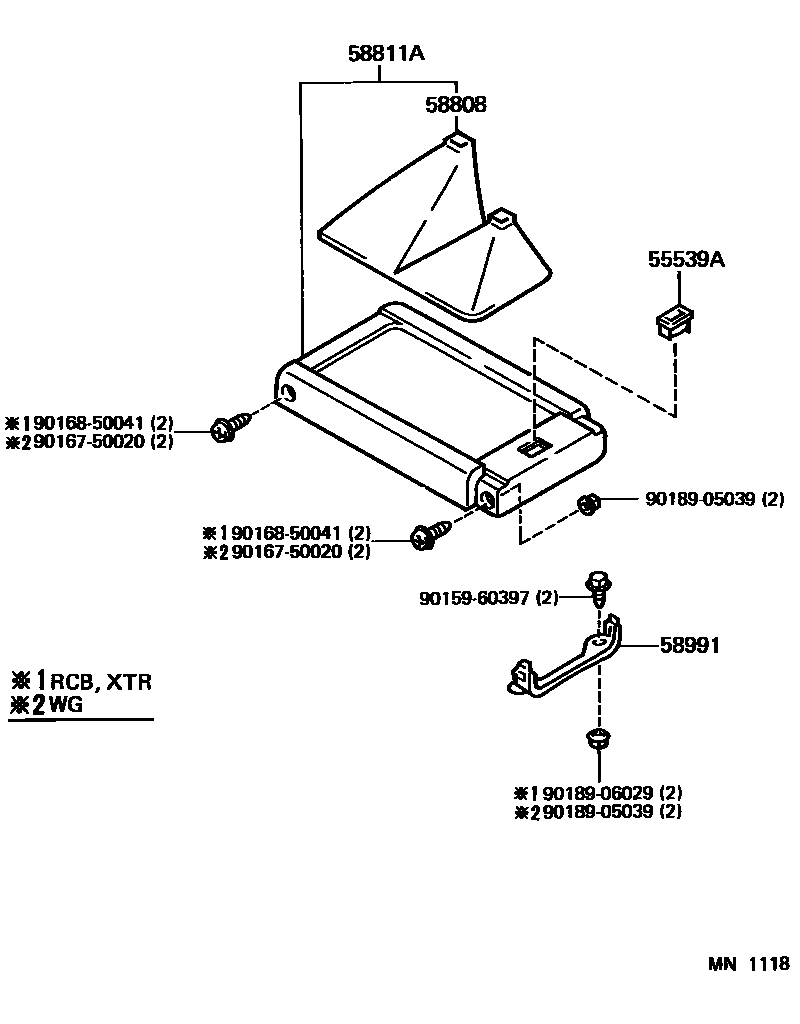

Toyota 4-RUNNER TRUCK (JPP) — CONSOLE BOX & BRACKET

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-12iRN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5198808-199108

RED,TRIM3#

sub55539-20020

main55539-20020-24iRN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5198808-199511

BLUE,TRIM8#

sub55539-20020

main55539-20020-B0iRN13#,VZN13#..5F198808-199511

MEDIUM GRAY,TRIM1#

sub55539-20020

main55539-20020-E0iRN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5198811-199108

BROWN,TRIM4#

sub55539-20020

main55539-20020-E1iRN13#,VZN13#..5F199108-199308

TAN,TRIM4#

sub55539-20020

main55539-20020-E2iRN131,VZN13#..4FC199308-199511

OAK,TRIM4#

sub55539-20020

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-34010-B0iRN13#,VZN110,13#..5F..SR5199208-199304

GRAY,TRIM1#

sub58808-34011

main58808-34010-E1iRN13#,VZN13#..5F199208-199304

TAN,TRIM4#

sub58808-34011

main58808-34010-J0iRN13#,VZN110,13#..5F..SR5199208-199304

BLUE,TRIM8#

sub58808-34011

main58808-34011-B0iRN13#,VZN110,13#..5F..SR5199304-199503

GRAY,TRIM1#

sub58808-34012

main58808-34011-E0iRN13#,VZN13#..5F199308-199503

OAK,TRIM4#

sub58808-34012

main58808-34011-E1iRN13#,VZN13#..5F199304-199308

TAN,TRIM4#

sub58808-34012

main58808-34011-J0iRN13#,VZN110,13#..5F..SR5199304-199503

BLUE,TRIM8#

sub58808-34012

main58808-34012-B0iRN13#,VZN13#..5F199503-199511

GRAY,TRIM1#

sub58808-34012

main58808-34012-E0iRN13#,VZN13#..5F199503-199511

OAK,TRIM4#

sub58808-34012

main58808-34012-J0iRN13#,VZN13#..5F199503-199511

BLUE,TRIM8#

sub58808-34012

main58808-35030-B0iRN101,110,13#..4FC199305-199503

GRAY,TRIM1#

sub58808-35031

main58808-35030-E0iRN13#..4FC199305-199308

TAN,TRIM4#

sub58808-35031

main58808-35030-E1iRN131..4FC199308-199503

OAK,TRIM4#

sub58808-35031

main58808-35030-J0iRN101,110,13#..4FC199305-199503

BLUE,TRIM8#

sub58808-35031

main58808-35031-B0iRN131..4FC199503-199511

GRAY,TRIM1#

sub58808-35031

main58808-35031-E1iRN131..4FC199503-199511

OAK,TRIM4#

sub58808-35031

main58808-35031-J0iRN131..4FC199503-199511

BLUE,TRIM8#

sub58808-35031

main58808-89115-02iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199108

RED,TRIM3#

sub58808-34012

sub58808-34010

main58808-89115-03iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199208

GRAY,TRIM1#

sub58808-34012

sub58808-34010

main58808-89115-04iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199208

BLUE,TRIM8#

sub58808-34012

sub58808-34010

main58808-89115-06iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199108

BROWN,TRIM4#

sub58808-34012

sub58808-34010

main58808-89115-E1iRN13#,VZN13#..5F199108-199208

TAN,TRIM4#

sub58808-34012

sub58808-34010

main58808-89118-02iRN10#,110,13#..4FC198908-199108

RED,TRIM3#

sub58808-89118

sub58808-35030

main58808-89118-03iRN10#,110,13#..4FC198908-199202

GRAY,TRIM1#

sub58808-89118

sub58808-35030

main58808-89118-04iRN10#,110,13#..4FC198908-199202

BLUE,TRIM8#

sub58808-89118

sub58808-35030

main58808-89118-06iRN10#,110,13#..4FC198908-199108

BROWN,TRIM4#

sub58808-89118

sub58808-35030

main58808-89118-B0iRN101,110,13#..4FC199202-199305

MEDIUM GRAY,TRIM1#

sub58808-89118

sub58808-35030

main58808-89118-E1iRN13#..4FC199108-199305

TAN,TRIM4#

sub58808-89118

sub58808-35030

main58808-89118-J0iRN101,110,13#..4FC199202-199305

MEDIUM BLUE,TRIM8#

sub58808-89118

sub58808-35030

58811ABOX, CONSOLE, FRONT

main58802-34010-B0iRN13#,VZN110,13#..5F..SR5199208-199304

GRAY,TRIM1#

sub58802-34011

main58802-34010-E1iRN13#,VZN13#..5F199208-199304

TAN,TRIM4#

sub58802-34011

main58802-34010-J0iRN13#,VZN110,13#..5F..SR5199208-199304

BLUE,TRIM8#

sub58802-34011

main58802-34011-B0iRN13#,VZN110,13#..5F..SR5199304-199503

GRAY,TRIM1#

sub58802-34012

main58802-34011-E0iRN13#,VZN13#..5F199308-199503

OAK,TRIM4#

sub58802-34012

main58802-34011-E1iRN13#,VZN13#..5F199304-199308

TAN,TRIM4#

sub58802-34012

main58802-34011-J0iRN13#,VZN110,13#..5F..SR5199304-199503

BLUE,TRIM8#

sub58802-34012

main58802-34012-B0iRN13#,VZN13#..5F199503-199511

GRAY,TRIM1#

sub58802-34012

main58802-34012-E0iRN13#,VZN13#..5F199503-199511

OAK,TRIM4#

sub58802-34012

main58802-34012-J0iRN13#,VZN13#..5F199503-199511

BLUE,TRIM8#

sub58802-34012

main58802-35030-B0iRN101,110,13#..4FC199202-199503

GRAY,TRIM1#

sub58802-35031

main58802-35030-E0iRN13#..4FC199305-199308

TAN,TRIM4#

sub58802-35031

main58802-35030-E1iRN131..4FC199308-199503

OAK,TRIM4#

sub58802-35031

main58802-35030-J0iRN101,110,13#..4FC199202-199503

BLUE,TRIM8#

sub58802-35031

main58802-35031-B0iRN131..4FC199503-199511

GRAY,TRIM1#

sub58802-35031

main58802-35031-E1iRN131..4FC199503-199511

OAK,TRIM4#

sub58802-35031

main58802-35031-J0iRN131..4FC199503-199511

BLUE,TRIM8#

sub58802-35031

main58802-89115-02iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199108

RED,TRIM3#

sub58802-34010

sub58802-34012

main58802-89115-03iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199208

GRAY,TRIM1#

sub58802-34010

sub58802-34012

main58802-89115-04iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199208

BLUE,TRIM8#

sub58802-34010

sub58802-34012

main58802-89115-06iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199108

BROWN,TRIM4#

sub58802-34010

sub58802-34012

main58802-89115-E1iRN13#,VZN13#..5F199108-199208

TAN,TRIM4#

sub58802-34010

sub58802-34012

main58802-89118-02iRN10#,110,13#..4FC198908-199108

RED,TRIM3#

sub58802-89118

sub58802-35030

main58802-89118-03iRN10#,110,13#..4FC198908-199202

GRAY,TRIM1#

sub58802-89118

sub58802-35030

main58802-89118-04iRN10#,110,13#..4FC198908-199202

BLUE,TRIM8#

sub58802-89118

sub58802-35030

main58802-89118-06iRN10#,110,13#..4FC198908-199108

BROWN,TRIM4#

sub58802-89118

sub58802-35030

main58802-89118-E1iRN13#..4FC199108-199305

TAN,TRIM4#

sub58802-89118

sub58802-35030

main58811-89121-02iVZN105,110,13#..4FC198808-199108

RED,TRIM3#

sub58811-89121

main58811-89121-03iRN106,110,13#,VZN105,110,13#..4FC198808-199303

GRAY,TRIM1#

sub58811-89121

main58811-89121-04iRN106,110,13#,VZN105,110,13#..4FC198808-199303

BLUE,TRIM8#

sub58811-89121

main58811-89121-06iRN106,110,13#,VZN105,110,13#..4FC198808-199108

BROWN,TRIM4#

sub58811-89121

main58811-89121-E0iVZN13#..4FC199108-199308

TAN,TRIM4#

sub58811-89121

main58811-89121-E1iVZN13#..4FC199308-199511

OAK,TRIM4#

sub58811-89121

main58811-89121-R9iVZN110,13#..4FC199303-199511

BLUE,TRIM8#

sub58811-89121

main58811-89121-S4iVZN110,13#..4FC199303-199511

GRAY,TRIM1#

sub58811-89121

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-89103iRN101,110,13#,VZN100,110,13#..5F..SR5198808-199511

9015960397

main90159-60397

9016750020

main90167-50020

9016850041

main90168-50041

9018905039

main90189-05039

9018906029

main90189-06029

9 parts on this diagram · 6 diagrams in section
