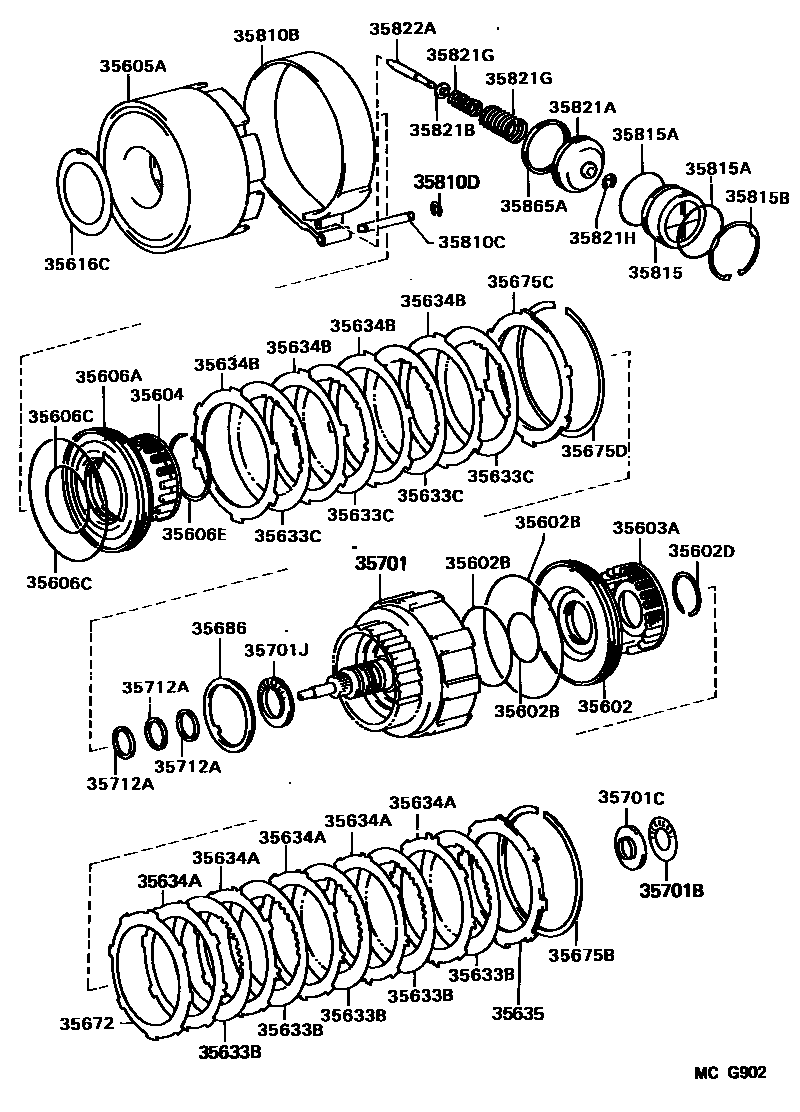

Toyota 4-RUNNER TRUCK (JPP) — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-30061iRN10#,110,13#,VZN105,110,13#..4FC198808-199108

main35602-30062iRN101,110,13#,VZN110,13#..4FC199108-199511

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-39002iRN106,110,VZN105,110..4FC198808-198810

INNER

sub90301-39005

main90301-39005iRN131,VZN13#..4FC198810-199511

INNER

main90301-72002iRN106,110,VZN105,110..4FC198808-198810

CTR

sub90301-72003

main90301-72003iRN10#,110,13#,VZN105,110,13#..4FC198810-199511

CTR

main90301-99016iRN106,110,VZN105,110..4FC198808-198810

OUTER

main90301-99058iRN10#,110,13#,VZN105,110,13#..4FC198810-199511

OUTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35001iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-30011iRN131,VZN13#..4FC198808-199511

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-22030iVZN13#..4FC199108-199511

main35605-30031iVZN105,110,13#..4FC198808-199108

main35605-35011iRN101,110,131..4FC198808-199511

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-22030iVZN110,13#..4FC199108-199511

main35606-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-65005iRN131,VZN13#..4FC198808-199511

INNER

sub90301-65006

main90301-99016iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

OUTER

main90301-99065iVZN110,13#..4FC199108-199511

OUTER

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-58001iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-30050iRN101,110,131,VZN110,13#..4FC198808-199511

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35677-30090iRN101,110,131..4FC198808-199511

main35677-30170iVZN13#..4FC199505-199511

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35667-30012iVZN105,110,13#..4FC198808-199511

sub35667-22010

main35667-40010iVZN13#..4FC199108-199511

sub35667-22010

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-30100iVZN105,110,13#..4FC198808-199108

main35634-30110iVZN13#..4FC199108-199511

T=2.3

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-14010iVZN110,13#..4FC199108-199511

T=3.0

main35647-30011iRN10#,110,13#..4FC198808-199511

T=2.3

35635FLANGE, FORWARD CLUTCH

main35635-30010iRN10#,110,13#,VZN105,110,13#..4FC198808-199004

T=3.60

sub35635-50030

main35635-30020iRN101,110,131,VZN110,13#..4FC199108-199511

T=4.20,MARK 63

sub35635-30100

main35635-30030iRN101,110,13#,VZN110,13#..4FC199108-199511

T=4.40,MARK 64

sub35635-30110

main35635-50010iRN101,110,13#,VZN110,13#..4FC199108-199511

T=4.00,MARK 42

sub35635-30040

main35635-50020iRN101,110,13#,VZN110,13#..4FC199108-199511

T=3.80,MARK 44

sub35635-30050

main35635-50030iRN10#,110,13#,VZN105,110,13#..4FC199004-199511

T=3.60,MARK 62

sub35635-30060

main35635-50040iRN101,110,131,VZN110,13#..4FC199108-199511

T=3.40,MARK 45

sub35635-30070

main35635-50050iRN101,110,13#,VZN110,13#..4FC199108-199511

T=3.20,MARK 60

sub35635-30080

main35635-50060iRN101,110,131,VZN110,13#..4FC199108-199511

T=3.00,MARK 61

sub35635-30090

35672PLATE, CLUTCH CUSHION

main35672-30010iRN101,110,131,VZN110,13#..4FC198808-199511

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90521-99001iRN101,110,131,VZN110,13#..4FC198808-199511

35675CFLANGE, DIRECT CLUTCH

main35675-30051iRN101,110,131,VZN110,13#..4FC198808-199511

T=3.6

main35675-30061iRN131,VZN13#..4FC198808-199511

T=3.5

main35675-30071iRN101,110,131,VZN110,13#..4FC198808-199511

T=3.4

main35675-30081iRN131,VZN13#..4FC198808-199511

T=3.3

main35675-30091iRN131,VZN13#..4FC198808-199511

T=3.2

main35675-30101iRN131,VZN13#..4FC198808-199511

T=3.1

main35675-30111iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

T=3.0

main35675-30120iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

T=3.7

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90521-99032iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)

main35686-30010iRN101,110,131,VZN110,13#..4FC198808-199511

35701SHAFT SUB-ASSY, INPUT

main35701-22050iVZN105,110,13#..4FC198810-199511

main35701-22060iRN10#,110,13#..4FC198810-199511

main35701-30062iVZN105,110..4FC198808-198810

sub35701-22050

main35701-35012iRN106,110..4FC198808-198810

sub35701-22060

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-25005iRN101,110,131,VZN110,13#..4FC198808-199511

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-30110iRN101,110,131,VZN110,13#..4FC198808-199511

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-33001iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35712ARING, INPUT SHAFT OIL SEAL

main35712-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35810BBAND ASSY, 2ND COAST BRAKE

main35810-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90249-07011iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)

main96160-00500iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35815COVER, 2ND COAST BRAKE

main35815-30010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-48001iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-60002iRN101,110,131,VZN110,13#..4FC198808-199511

sub90521-60003

35821APISTON, 2ND COAST BRAKE

main35821-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-26024iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

OUTER

main90501-27009iRN101,110,131,VZN110,13#..4FC198808-199511

INNER

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35822AROD, 2ND COAST BRAKE PISTON

main35822-32010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

L=70.9

main35822-32020iRN101,110,131,VZN110,13#..4FC198808-199511

L=72.4

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-30010iRN131,VZN13#..4FC198808-199511

37 parts on this diagram · 1 diagram in section
