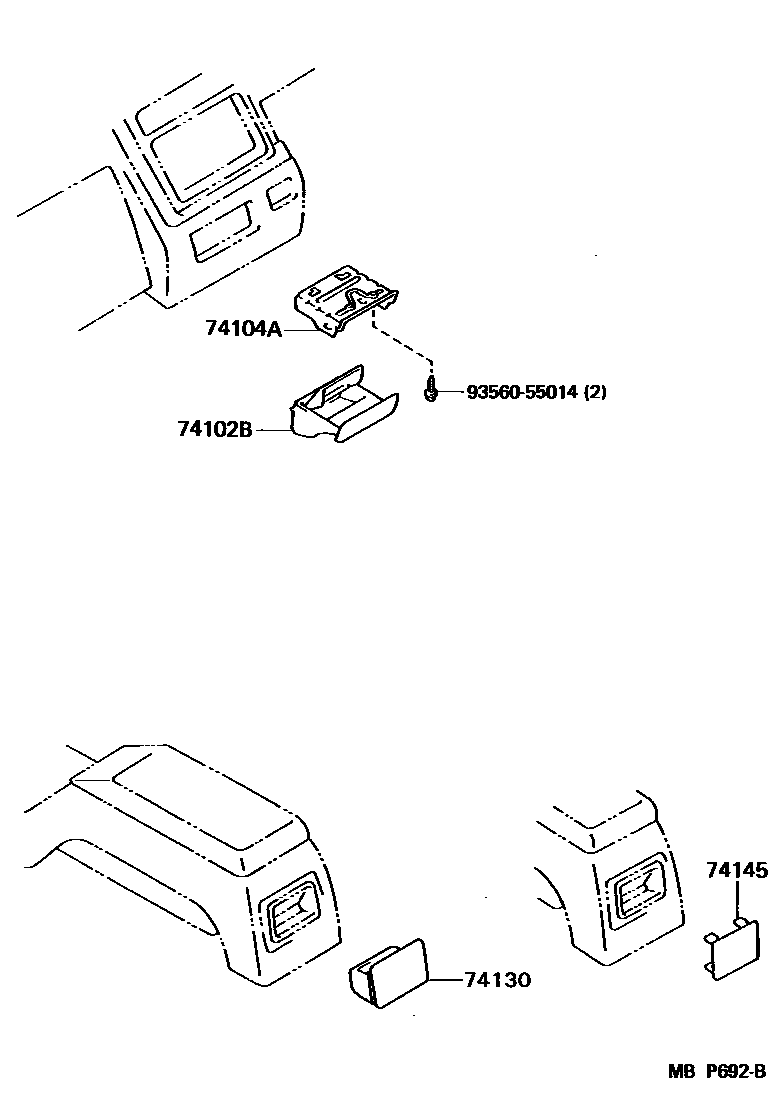

Toyota 4-RUNNER TRUCK (JPP) — ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-89105-02iRN10#,110,13#,VZN10#,110,13#198808-198906

RED,TRIM3#

sub74102-89107

sub74102-89105

main74102-89105-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub74102-89107

sub74102-89105

main74102-89105-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub74102-89107

sub74102-89105

main74102-89105-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub74102-89107

sub74102-89105

main74102-89105-B0iRN10#,110,13#,VZN10#,110,13#198901-198906

MEDIUM GRAY,TRIM1#

sub74102-89107

sub74102-89105

main74102-89105-E0iRN10#,110,13#,VZN10#,110,13#198901-198906

BROWN,TRIM4#

sub74102-89107

sub74102-89105

main74102-89105-J0iRN10#,110,13#,VZN10#,110,13#198901-198906

MEDIUM BLUE,TRIM8#

sub74102-89107

sub74102-89105

main74102-89107-02iRN10#,110,13#,VZN10#,110,13#198906-199108

RED,TRIM3#

sub74102-89107

sub74102-89108

main74102-89107-B0iRN10#,110,13#,VZN10#,110,13#198906-199511

MEDIUM GRAY,TRIM1#

sub74102-89107

sub74102-89108

main74102-89107-E0iRN10#,110,13#,VZN10#,110,13#198906-199108

BROWN,TRIM4#

sub74102-89107

sub74102-89108

main74102-89107-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub74102-89107

sub74102-89108

main74102-89107-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub74102-89107

sub74102-89108

main74102-89107-J0iRN10#,110,13#,VZN10#,110,13#198906-199511

MEDIUM BLUE,TRIM8#

sub74102-89107

sub74102-89108

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89107iRN10#,110,VZN10#,110..DLX198808-199501

sub74104-89108

main74104-89108iRN101,110,13#,VZN100,110,13#..SR5198808-199511

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-22iRN13#,VZN13#198904-199108

RED,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-34iRN13#,VZN13#198904-199511

BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-B0iRN13#,VZN13#198904-199511

MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-E0iRN13#,VZN13#198904-199108

BROWN,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-E3iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-E4iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub74109-20080

sub74109-32010

74145PLATE, REAR ASH RECEPTACLE

main74145-12020-02iRN110,VZN110..SR5199005-199108

RED,TRIM3#

sub74145-12020

main74145-12020-13iRN110,VZN110..SR5198808-199501

GRAY,TRIM1#

sub74145-12020

main74145-12020-14iRN110,VZN110..SR5198808-199501

BLUE,TRIM8#

sub74145-12020

main74145-12020-16iRN110,VZN110..SR5198808-199108

BROWN,TRIM4#

sub74145-12020

9356055014

main93560-55014

5 parts on this diagram · 1 diagram in section
