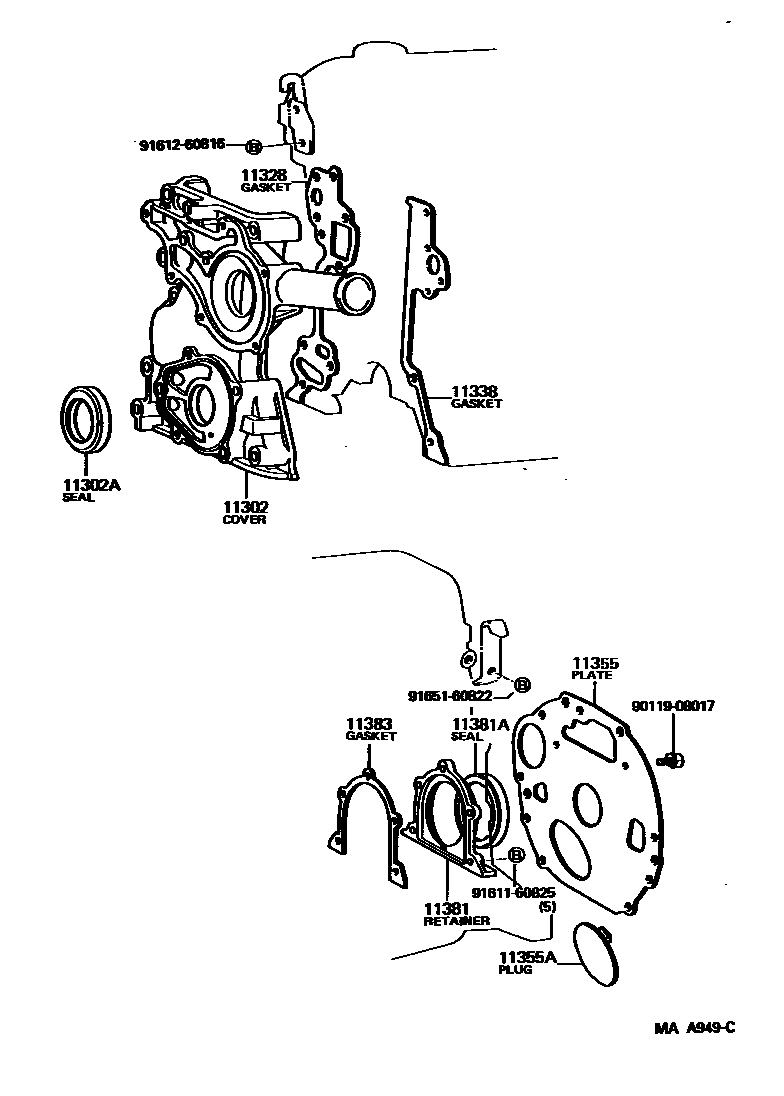

Toyota 4-RUNNER TRUCK (JPP) — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R#..RN12#,8#,90198808-199501

main11302-65010i3VZE..VZN120,85,9#198808-199511

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45006i22R#..RN12#,8#,90198808-199006

sub90311-45011

main90311-45011i22R#..RN12#,8#,90199006-199311

sub90311-45014

main90311-45014i22RE..RN8#,90199311-199501

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35020i22R#..RN12#,8#,90198808-199003

sub11328-35030

main11328-35030i22R#..RN12#,8#,90199003-199501

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-35020i22R#..RN12#,8#,90198808-199003

sub11329-35030

main11329-35030i22R#..RN12#,8#,90199003-199501

11355PLATE, REAR END

main11355-35010i22R#..RN121,8#,90..MTM198808-199501

main11355-35030i22RE..RN12#,8#,90..ATM198808-199501

main11355-65010i3VZE..VZN120,85,9#198808-199405

sub11355-65011

main11355-65011i3VZE..VZN120,90199405-199511

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01458i22RE..RN12#,8#,90..ATM198808-199501

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R#..RN12#,8#,90198808-199501

main11381-62010i3VZE..VZN120,85,9#198808-199511

11381ASEAL, ENGINE REAR OIL

main90311-80004i22R#..RN12#,8#,90198808-199006

sub90311-80010

main90311-80010i22R#..RN12#,8#,90199006-199501

main90311-92003i3VZE..VZN120,85,9#198808-198911

sub90311-92004

main90311-92004i3VZE..VZN120,85,9#198911-199104

sub90311-92006

main90311-92006i3VZE..VZN120,85,9#199104-199511

sub90311-92009

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-35020i22R#..RN12#,8#,90198808-199501

9011908017

main90119-08017

9161160825

main91611-60825

9161260816

main91612-60816

9165160822

main91651-60822

13 parts on this diagram · 3 diagrams in section
