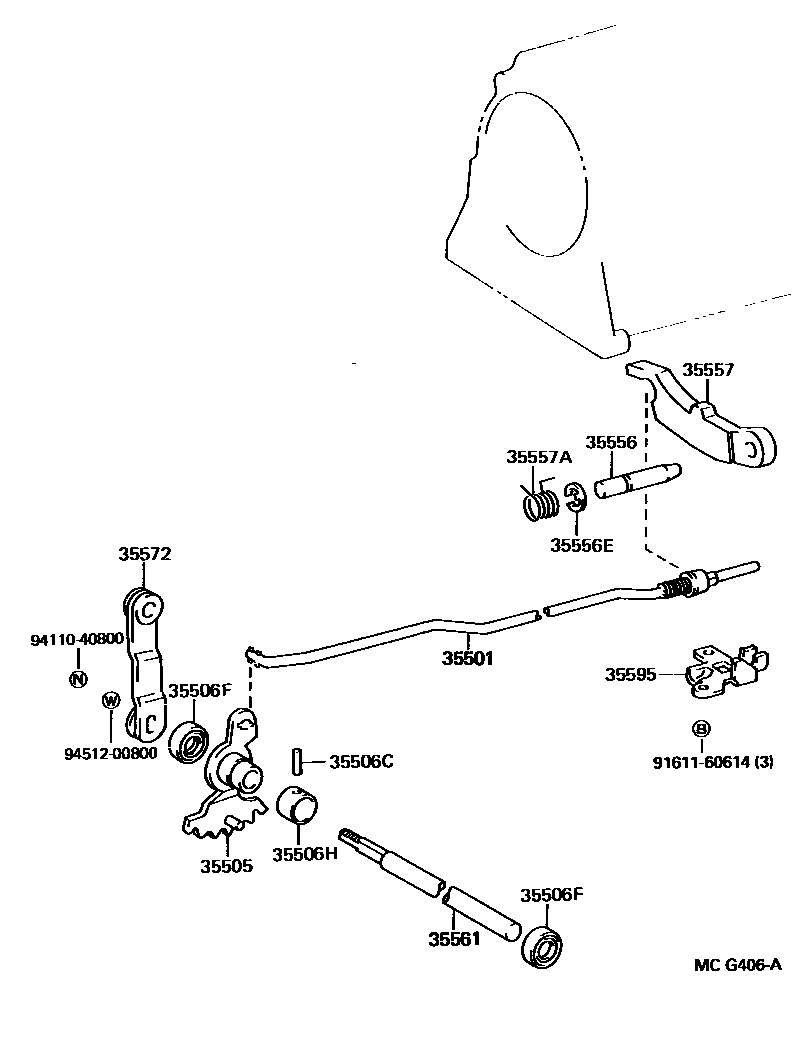

Toyota 4-RUNNER TRUCK (JPP) — THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iRN10#,110,13#..4FC198908-199511

main35501-35010iVZN105,110,13#..4FC198808-199511

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30020iRN131,VZN13#..4FC198808-199511

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35556SHAFT, PARKING LOCK PAWL

main35556-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRN101,110,131,VZN110,13#..4FC198808-199511

35557PAWL, PARKING LOCK

main35557-30020iRN10#,110,13#..4FC198908-199511

main35557-35030iRN106,110,13#,VZN105,110,13#..4FC198808-199511

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iRN101,110,131,VZN110,13#..4FC198808-199511

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iRN101,110,131,VZN110,13#..4FC198808-199511

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iRN101,110,131..4FC198808-199511

main35572-35020iVZN110,13#..4FC199008-199511

35595BRACKET, PARKING LOCK PAWL

main35595-30010iRN10#,110,13#..4FC198908-199511

main35595-35010iVZN105,110,13#..4FC198808-199511

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
