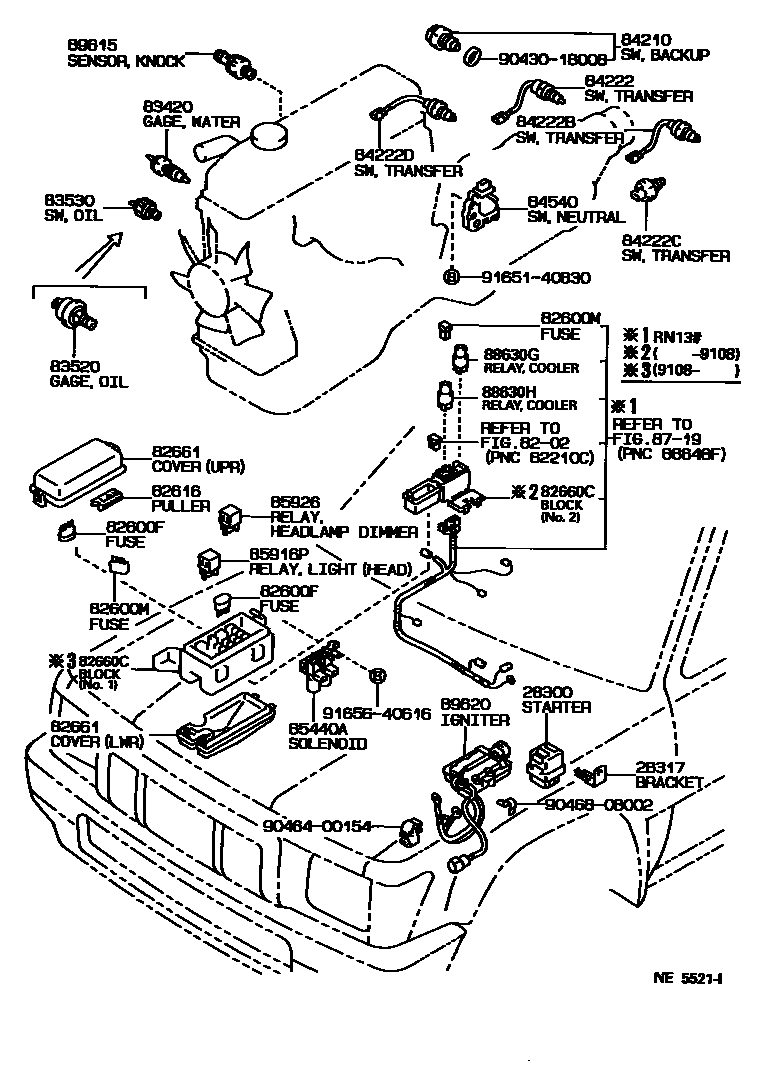

Toyota 4-RUNNER TRUCK (JPP) — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28300RELAY ASSY, STARTER

main28300-10020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199202-199511

main28300-16010i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#..5F198808-199108

main28341-11010i3VZE..VZN100,110..CND199208-199501

sub28300-10020

main90987-02009i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199108-199202

28317BRACKET, STARTER RELAY

main28317-54020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199108-199308

8202

82600FFUSE, FUSE BLOCK

main90982-09002iRN10#,110,13#,VZN10#,110,13#198808-199511

10A

main90982-09003iRN10#,110,13#,VZN10#,110,13#198808-199501

15A

main90982-09004iRN10#,110,13#,VZN10#,110,13#198808-199501

20A,YELLOW

main90982-09005iRN10#,110,13#,VZN10#,110,13#198808-199511

7.5A

82600MFUSE, MEDIUM CURRENT

main90982-10001iRN10#,110,130,VZN10#,110,130..USA199108-199511

30A,PINK

main90982-10002iRN130,VZN130199108-199511

40A,GREEN

82616PULLER, FUSE

main82616-89102iRN130199401-199511

BRAZIL SPEC

main82616-89102iRN10#,110,13#,VZN10#,110,13#198808-199511

82660CBLOCK ASSY, RELAY

main82660-35030iRN10#,110,13#,VZN10#,110,13#199108-199112

main82660-35090iRN10#,110,13#,VZN10#,110,13#199112-199511

main82660-89131iRN13#,VZN13#198904-199108

82661COVER, RELAY BLOCK, NO.1

main82662-35010iRN101,110,VZN100,110..USA199108-199501

UPR

main82662-35090iRN130..4FC199108-199308

UPR

main82662-35120iRN131..4FC199108-199511

UPR

main82662-35170iRN130..5F;RN10#,110,VZN10#,110,130..USA199102-199108

UPR

main82662-35200iVZN110,131..CND;RN10#,110,131,VZN100..5F..CND199102-199108

UPR

main82662-35210iRN130..4FC199102-199108

UPR

main82662-35240iRN131..4FC199102-199108

UPR

main82662-35260iVZN130199308-199511

W(*66),UPR

main82662-35270iVZN131199308-199511

W(*66),UPR

main82662-35280iVZN130199308-199511

UPR

main82662-35290iVZN131199308-199511

UPR

main82662-35320iVZN110,131..CND;RN131,VZN100..5F..CND199108-199511

UPR

main82662-35380iRN130199408-199511

UPR

main82662-89101iRN130..5F;RN10#,110,VZN10#,110,130..USA198808-199102

UPR

sub82662-35170

main82662-89108iRN131..5F;RN10#,110,VZN10#,110,131..CND198908-199102

UPR

sub82662-35200

main82662-89109iRN130..4FC198904-199102

UPR

sub82662-35210

main82662-89112iRN131..4FC198908-199102

UPR

sub82662-35240

main82663-35010iRN10#,110199108-199511

LWR

main82663-35030iVZN13#199308-199511

LWR

main82663-89101iRN10#,110,13#,VZN10#,110,13#198808-199108

LWR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN10#,110,13#199108-199511

main83420-16040iRN10#,110,13#199208-199511

main83420-20020iRN10#,110,13#,VZN10#,110,13#198808-199208

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iRN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5198808-199208

NIPPONDENSO

sub83520-35030

main83520-34010iRN13#,VZN110,13#..SR5;RN10#,110,VZN100,110..5F..DLX199208-199511

main83520-55011iRN10#,VZN10#..5F;RN110,VZN110..5F..DLX;RN110,13#,VZN110,13#..SR5198808-199208

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRN10#,110,VZN10#,110..DLX198808-199208

sub83530-28030

main83530-14070iRN10#,110199208-199501

sub83530-28010

main83530-30080iVZN10#,110..DLX199108-199208

sub83530-60040

main83530-30090iVZN100,110..DLX199208-199501

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35050iRN10#,110,13#..W198808-199501

main84222-35060iRN10#,110,13#..4FC;RN10#,110,13#,VZN10#,110,13#..G,R198808-199511

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iRN10#,110,13#..4FC198908-199511

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iRN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5198808-199511

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iRN101,110,13#..4FC199108-199511

84540SWITCH ASSY, NEUTRAL START

main84540-30270iRN101,110,131,VZN110,13#..4FC199308-199511

main84540-35040iRN10#,110,13#,VZN105,110,13#..4FC198808-199108

sub84540-50010

main84540-50010iRN101,110,13#,VZN110,13#..4FC199108-199308

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-35010iRN10#,110,130..G;RN101,110,130..4FC;RN131,VZN10#,110,13#198808-199511

85916PRELAY, HEADLAMP

main90987-02006iRN10#,110,13#,VZN10#,110,13#198808-199511

85926RELAY, HEADLAMP DIMMER

main85926-30020iRN10#,110,131,VZN10#,110,131..CND198908-199511

8719

88630GRELAY ASSY, COOLER

main90987-02004iRN13#,VZN13#198904-199108

main90987-02009iRN130,VZN130199108-199511

88630HRELAY ASSY, COOLER

main90987-03001iRN130,VZN130198904-199108

main90987-03003iRN130,VZN130199108-199511

89615SENSOR, KNOCK CONTROL

main89615-20010iVZN10#,110,13#198808-199108

main89615-22040iRN10#,110,13#199108-199511

main89615-35040iRN10#,110,13#198808-199108

main89615-50010iVZN10#,110,13#199108-199511

89620IGNITER ASSY

main89620-35210iRN10#,110,13#198808-199008

main89620-35280iRN10#,110,13#199008-199208

main89620-35310iRN10#,110,13#199208-199511

main89621-12050iVZN10#,110,13#199108-199511

main89621-30010iVZN10#,110,13#198808-199108

sub89621-12010

9043018008

main90430-18008

9046400154

main90464-00154

9046808002

main90468-08002

9165140830

main91651-40830

9165640616

main91656-40616

30 parts on this diagram · 6 diagrams in section
