Toyota 4-RUNNER TRUCK (JPP) — SEAT BELT

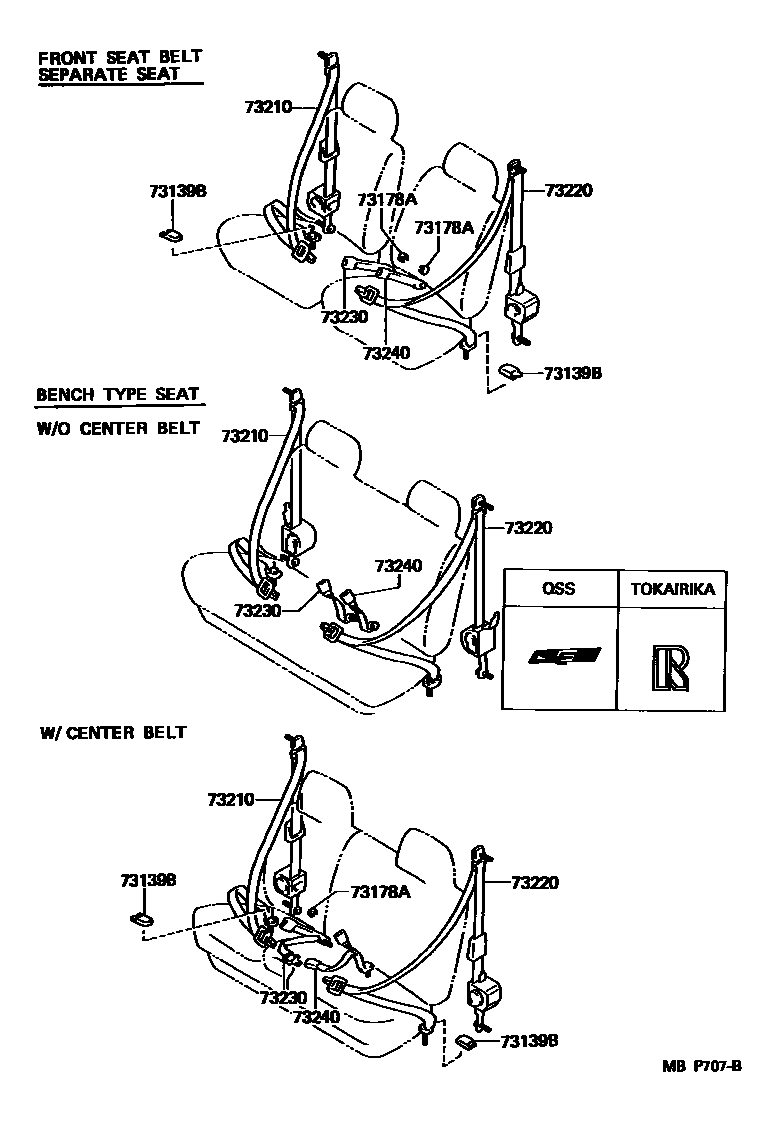

Parts diagram
73139BCOVER, SEAT BELT ANCHOR
main73139-89101-02i198908-199108
RED,TRIM3#
sub73139-89101
main73139-89101-03i198908-199303
GRAY,TRIM1#
sub73139-89101
main73139-89101-04i198908-199303
BLUE,TRIM8#
sub73139-89101
main73139-89101-06i198908-199108
BROWN,TRIM4#
sub73139-89101
main73139-89101-E1i199108-199308
TAN,TRIM4#
sub73139-89101
main73139-89101-E2i199308-199511
OAK,TRIM4#
sub73139-89101
main73139-89101-R9i199303-199511
BLUE,TRIM8#
sub73139-89101
main73139-89101-S4i199303-199511
GRAY,TRIM1#
sub73139-89101
73178ACAP, SEAT BELT ANCHOR COVER
main73178-89101-02i198808-199108
W(SPLIT SEAT),RED,TRIM3#
sub73178-89101
main73178-89101-02i198808-199108
RED,TRIM3#
sub73178-89101
main73178-89101-02i198808-199108
W(SPORT SEAT),RED,TRIM3#
sub73178-89101
main73178-89101-03i198808-199303
W(SPORT SEAT),GRAY,TRIM1#
sub73178-89101
main73178-89101-03i198808-199303
GRAY,TRIM1#
sub73178-89101
main73178-89101-03i198808-199303
W(SPLIT SEAT),GRAY,TRIM1#
sub73178-89101
main73178-89101-04i198808-199303
BLUE,TRIM8#
sub73178-89101
main73178-89101-04i198808-199303
W(SPLIT SEAT),BLUE,TRIM8#
sub73178-89101
main73178-89101-04i198808-199303
W(SPORT SEAT),BLUE,TRIM8#
sub73178-89101
main73178-89101-06i198808-199108
BROWN,TRIM4#
sub73178-89101
main73178-89101-06i198808-199108
W(SPLIT SEAT),BROWN,TRIM4#
sub73178-89101
main73178-89101-06i198808-199108
W(SPORT SEAT),BROWN,TRIM4#
sub73178-89101
main73178-89101-E0i199108-199308
TAN,TRIM4#
sub73178-89101
main73178-89101-E1i199308-199311
OAK,TRIM4#
sub73178-89101
main73178-89101-R9i199303-199311
W(SPORT SEAT),BLUE,TRIM8#
sub73178-89101
main73178-89101-R9i199303-199311
BLUE,TRIM8#
sub73178-89101
main73178-89101-R9i199303-199311
W(SPLIT SEAT),BLUE,TRIM8#
sub73178-89101
main73178-89101-S4i199303-199311
GRAY,TRIM1#
sub73178-89101
main73178-89101-S4i199303-199311
W(SPLIT SEAT),GRAY,TRIM1#
sub73178-89101
main73178-89101-S4i199303-199311
W(SPORT SEAT),GRAY,TRIM1#
sub73178-89101
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0W030-B0i199408-199412
GRAY,TRIM1#,QSS
sub73210-0W030
main73210-0W030-J0i199408-199412
BLUE,TRIM8#,QSS
sub73210-0W030
main73210-35010-B0i199108-199208
MEDUAM GRAY,TRIM1#
sub73210-35010
main73210-35010-J0i199108-199208
MEDIUM BLUE,TRIM8#
sub73210-35010
main73210-35020-B0i199108-199208
GRAY,TRIM1#
sub73210-35021
main73210-35020-E0i199108-199208
TAN,TRIM4#
sub73210-35021
main73210-35020-J0i199108-199208
BLUE,TRIM8#
sub73210-35021
main73210-35021-B0i199208-199308
GRAY,TRIM1#
main73210-35021-E0i199208-199308
TAN,TRIM4#
main73210-35021-J0i199208-199308
BLUE,TRIM8#
main73210-35090-B1i199108-199208
GRAY,TRIM1#
sub73210-35090
main73210-35090-J1i199108-199208
BLUE,TRIM8#
sub73210-35090
main73210-35100-B1i199108-199208
GRAY,TRIM1#
sub73210-35101
main73210-35100-E1i199108-199208
TAN,TRIM4#
sub73210-35101
main73210-35100-J1i199108-199208
BLUE,TRIM8#
sub73210-35101
main73210-35101-B1i199208-199308
GRAY,TRIM1#
sub73210-35101
main73210-35101-E1i199208-199308
TAN,TRIM4#
sub73210-35101
main73210-35101-J1i199208-199308
BLUE,TRIM8#
sub73210-35101
main73210-35120-B0i199208-199308
GRAY,TRIM1#
sub73210-35180
sub73210-35120
main73210-35120-J0i199208-199308
BLUE,TRIM8#
sub73210-35180
sub73210-35120
main73210-35130-B0i199208-199303
GRAY,TRIM1#
sub73210-35130
main73210-35130-B1i199303-199308
GRAY,TRIM1#
sub73210-35130
main73210-35130-J0i199208-199303
BLUE,TRIM8#
sub73210-35130
main73210-35130-J1i199303-199308
BLUE,TRIM8#
sub73210-35130
main73210-35180-B0i199308-199501
MEDIUM GRAY,TRIM1#
sub73210-35180
main73210-35180-B0i199408-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub73210-35180
main73210-35180-B0i199408-199501
MEDIUM GRAY,TRIM1#,TOKAIRIKA
sub73210-35180
main73210-35180-J0i199408-199501
MEDIUM BLUE,TRIM8#,TOKAIRIKA
sub73210-35180
main73210-35180-J0i199308-199501
MEDIUM BLUE,TRIM8#
sub73210-35180
main73210-35180-J0i199408-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub73210-35180
main73210-35190-B0i199308-199501
MEDIUM GRAY,TRIM1#
sub73210-35190
main73210-35190-J0i199308-199501
MEDIUM BLUE,TRIM8#
sub73210-35190
main73210-35200-B0i199308-199312
GRAY,TRIM1#
sub73210-35201
main73210-35200-E1i199308-199312
OAK,TRIM4#
sub73210-35201
main73210-35200-J0i199308-199312
BLUE,TRIM8#
sub73210-35201
main73210-35201-B0i199312-199410
GRAY,TRIM1#
main73210-35201-E1i199312-199410
OAK,TRIM4#
main73210-35201-J0i199312-199410
BLUE,TRIM8#
main73210-35280-B0i199410-199511
GRAY,TRIM1#
main73210-35280-E0i199410-199511
OAK,TRIM4#
main73210-35280-J0i199410-199511
BLUE,TRIM8#
main73210-89190-02i198808-198908
RED,TRIM3#
sub73210-89190
sub73210-89201
main73210-89190-03i198808-198908
GRAY,TRIM1#
sub73210-89190
sub73210-89201
main73210-89190-04i198808-198908
BLUE,TRIM8#
sub73210-89190
sub73210-89201
main73210-89190-06i198808-198908
BROWN,TRIM4#
sub73210-89190
sub73210-89201
main73210-89195-02i198808-199108
RED,TRIM3#
sub73210-89195
main73210-89195-03i198808-199108
GRAY,TRIM1#
sub73210-89195
main73210-89195-04i198808-199108
BLUE,TRIM8#
sub73210-89195
main73210-89195-06i198808-199108
BROWN,TRIM4#
sub73210-89195
main73210-89196-02i198904-198908
RED,TRIM3#
sub73210-89196
main73210-89196-03i198904-198908
GRAY,TRIM1#
sub73210-89196
main73210-89196-04i198904-198908
BLUE,TRIM8#
sub73210-89196
main73210-89196-06i198904-198908
BROWN,TRIM4#
sub73210-89196
main73210-89199-02i198904-198908
RED,TRIM3#
sub73210-89199
sub73210-89204
main73210-89199-03i198904-198908
GRAY,TRIM1#
sub73210-89199
sub73210-89204
main73210-89199-04i198904-198908
BLUE,TRIM8#
sub73210-89199
sub73210-89204
main73210-89199-06i198904-198908
BROWN,TRIM4#
sub73210-89199
sub73210-89204
main73210-89201-02i198908-199108
RED,TRIM3#
sub73210-89201
main73210-89201-03i198908-199108
GRAY,TRIM1#
sub73210-89201
main73210-89201-04i198908-199108
BLUE,TRIM8#
sub73210-89201
main73210-89201-06i198908-199108
BROWN,TRIM4#
sub73210-89201
main73210-89204-02i198908-199108
RED,TRIM3#
sub73210-89204
main73210-89204-03i198908-199108
GRAY,TRIM1#
sub73210-89204
main73210-89204-04i198908-199108
BLUE,TRIM8#
sub73210-89204
main73210-89204-06i198908-199108
BROWN,TRIM4#
sub73210-89204
main73210-89207-02i198908-199108
RED,TRIM3#
sub73210-89207
main73210-89207-03i198908-199108
GRAY,TRIM1#
sub73210-89207
main73210-89207-04i198908-199108
BLUE,TRIM8#
sub73210-89207
main73210-89207-06i198908-199108
BROWN,TRIM4#
sub73210-89207
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0W020-B0i199408-199412
GRAY,TRIM1#,QSS
sub73220-0W020
main73220-0W020-J0i199408-199412
BLUE,TRIM8#,QSS
sub73220-0W020
main73220-35010-B0i199108-199208
MEDIUM GRAY,TRIM1#
sub73220-35010
main73220-35010-J0i199108-199208
MEDIUM BLUE,TRIM8#
sub73220-35010
main73220-35020-B0i199108-199208
GRAY,TRIM1#
sub73220-35021
main73220-35020-E0i199108-199208
TAN,TRIM4#
sub73220-35021
main73220-35020-J0i199108-199208
BLUE,TRIM8#
sub73220-35021
main73220-35021-B0i199208-199312
GRAY,TRIM1#
sub73220-35022
main73220-35021-E0i199208-199308
TAN,TRIM4#
sub73220-35022
main73220-35021-E1i199308-199312
OAK,TRIM4#
sub73220-35022
main73220-35021-J0i199208-199312
BLUE,TRIM8#
sub73220-35022
main73220-35022-B0i199312-199410
GRAY,TRIM1#
main73220-35022-E1i199312-199410
OAK,TRIM4#
main73220-35022-J0i199312-199410
BLUE,TRIM8#
main73220-35080-B1i199108-199208
GRAY,TRIM1#
sub73220-35080
main73220-35080-J1i199108-199208
BLUE,TRIM8#
sub73220-35080
main73220-35090-B1i199108-199208
GRAY,TRIM1#
sub73220-35091
main73220-35090-E2i199108-199208
TAN,TRIM4#
sub73220-35091
main73220-35090-J1i199108-199208
BLUE,TRIM8#
sub73220-35091
main73220-35091-B1i199208-199308
GRAY,TRIM1#
sub73220-35091
main73220-35091-E2i199208-199308
TAN,TRIM4#
sub73220-35091
main73220-35091-J1i199208-199308
BLUE,TRIM8#
sub73220-35091
main73220-35100-B0i199408-199501
GRAY,TRIM1#,TOKAIRIKA
sub73220-35100
main73220-35100-B0i199208-199501
GRAY,TRIM1#
sub73220-35100
main73220-35100-B0i199408-199501
W(SEPARATE SEAT),GRAY,TRIM1#
sub73220-35100
main73220-35100-J0i199408-199501
BLUE,TRIM8#,TOKAIRIKA
sub73220-35100
main73220-35100-J0i199208-199501
BLUE,TRIM8#
sub73220-35100
main73220-35100-J0i199408-199501
W(SEPARATE SEAT),BLUE,TRIM8#
sub73220-35100
main73220-35110-B0i199208-199303
GRAY,TRIM1#
sub73220-35110
main73220-35110-B1i199303-199501
GRAY,TRIM1#
sub73220-35110
main73220-35110-J0i199208-199303
BLUE,TRIM8#
sub73220-35110
main73220-35110-J1i199303-199501
BLUE,TRIM8#
sub73220-35110
main73220-35210-B0i199410-199511
GRAY,TRIM1#
main73220-35210-E0i199410-199511
OAK,TRIM4#
main73220-35210-J0i199410-199511
BLUE,TRIM8#
main73220-89138-02i198808-198908
RED,TRIM3#
sub73220-89138
sub73220-89150
main73220-89138-03i198808-198908
GRAY,TRIM1#
sub73220-89138
sub73220-89150
main73220-89138-04i198808-198908
BLUE,TRIM8#
sub73220-89138
sub73220-89150
main73220-89138-06i198808-198908
BROWN,TRIM4#
sub73220-89138
sub73220-89150
main73220-89144-02i198808-199108
RED,TRIM3#
sub73220-89144
main73220-89144-03i198808-199108
GRAY,TRIM1#
sub73220-89144
main73220-89144-04i198808-199108
BLUE,TRIM8#
sub73220-89144
main73220-89144-06i198808-199108
BROWN,TRIM4#
sub73220-89144
main73220-89145-02i198904-198908
RED,TRIM3#
sub73220-89145
main73220-89145-03i198904-198908
GRAY,TRIM1#
sub73220-89145
main73220-89145-04i198904-198908
BLUE,TRIM8#
sub73220-89145
main73220-89145-06i198904-198908
BROWN,TRIM4#
sub73220-89145
main73220-89148-02i198904-198908
RED,TRIM3#
sub73220-89148
sub73220-89153
main73220-89148-03i198904-198908
GRAY,TRIM1#
sub73220-89148
sub73220-89153
main73220-89148-04i198904-198908
BLUE,TRIM8#
sub73220-89148
sub73220-89153
main73220-89148-06i198904-198908
BROWN,TRIM4#
sub73220-89148
sub73220-89153
main73220-89150-02i198908-199108
RED,TRIM3#
sub73220-89150
main73220-89150-03i198908-199108
GRAY,TRIM1#
sub73220-89150
main73220-89150-04i198908-199108
BLUE,TRIM8#
sub73220-89150
main73220-89150-06i198908-199108
BROWN,TRIM4#
sub73220-89150
main73220-89153-02i198908-199108
RED,TRIM3#
sub73220-89153
main73220-89153-03i198908-199108
GRAEY,TRIM1#
sub73220-89153
main73220-89153-04i198908-199108
BLUE,TRIM8#
sub73220-89153
main73220-89153-06i198908-199108
BROWN,TRIM4#
sub73220-89153
main73220-89156-02i198908-199108
RED,TRIM3#
sub73220-89156
main73220-89156-03i198908-199108
GRAY,TRIM1#
sub73220-89156
main73220-89156-04i198908-199108
BLUE,TRIM8#
sub73220-89156
main73220-89156-06i198908-199108
BROWN,TRIM4#
sub73220-89156
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0W020-B0i199408-199412
GRAY,TRIM1#,QSS
sub73230-0W020
main73230-0W020-J0i199408-199412
BLUE,TRIM8#,QSS
sub73230-0W020
main73230-35070-03i199008-199311
W(SPORT SEAT),GRAY,TRIM1#
sub73230-35070
main73230-35070-03i199008-199311
GRAY,TRIM1#
sub73230-35070
main73230-35070-03i199008-199311
W(SEPARATE SEAT),GRAY,TRIM1#
sub73230-35070
main73230-35070-04i199008-199311
BLUE,TRIM8#
sub73230-35070
main73230-35070-04i199008-199311
W(SEPARATE SEAT),BLUE,TRIM8#
sub73230-35070
main73230-35070-04i199008-199311
W(SPORT SEAT),BLUE,TRIM8#
sub73230-35070
main73230-35070-06i199008-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub73230-35070
main73230-35070-06i199008-199108
BROWN,TRIM4#
sub73230-35070
main73230-35070-06i199008-199108
W(SPORT SEAT),BROWN,TRIM4#
sub73230-35070
main73230-35110-B1i199108-199311
GRAY,TRIM1#
main73230-35110-E1i199108-199308
TAN,TRIM4#
main73230-35110-E2i199308-199311
OAK,TRIM4#
main73230-35110-J1i199108-199311
BLUE,TRIM8#
main73230-35111-B1i199311-199410
GRAY,TRIM1#
main73230-35111-E2i199311-199410
OAK,TRIM4#
main73230-35111-J1i199311-199410
BLUE,TRIM8#
main73230-35350-B1i199311-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub73230-35350
main73230-35350-B1i199311-199501
MEDIUM GRAY,TRIM1#
sub73230-35350
main73230-35350-B1i199311-199501
W(SPORT SEAT),MEDIUM GRAY,TRIM1#
sub73230-35350
main73230-35350-J1i199311-199501
MEDIUM BLUE,TRIM8#
sub73230-35350
main73230-35350-J1i199311-199501
W(SPORT SEAT),MEDIUM BLUE,TRIM8#
sub73230-35350
main73230-35350-J1i199311-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub73230-35350
main73230-35360-B1i199303-199501
MEDIUM GRAY,TRIM1#
sub73230-35360
main73230-35360-B1i199303-199501
W(CENTER BELT),MEDIUM GRAY,TRIM1#
sub73230-35360
main73230-35360-J1i199303-199501
MEDIUM BLUE,TRIM8#
sub73230-35360
main73230-35360-J1i199303-199501
W(CENTER BELT),MEDIUM BLUE,TRIM8#
sub73230-35360
main73230-35510-B0i199410-199511
GRAY,TRIM1#
main73230-35510-E0i199410-199511
OAK,TRIM4#
main73230-35510-J0i199410-199511
BLUE,TRIM8#
main73230-89161-02i198808-199108
RED,TRIM3#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-02i198808-199108
W(SPORT SEAT),RED,TRIM3#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-02i198808-199108
W(SEPARATE SEAT),RED,TRIM3#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-03i198808-199008
W(SEPARATE SEAT),GRAY,TRIM1#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-03i198808-199008
GRAY,TRIM1#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-03i198808-199008
W(SPORT SEAT),GRAY,TRIM1#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-04i198808-199008
W(SPORT SEAT),BLUE,TRIM8#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-04i198808-199008
BLUE,TRIM8#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-04i198808-199008
W(SEPARATE SEAT),BLUE,TRIM8#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-06i198808-199008
BROWN,TRIM4#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-06i198808-199008
W(SPORT SEAT),BROWN,TRIM4#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-06i198808-199008
W(SEPARATE SEAT),BROWN,TRIM4#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89161-E1i199108-199308
TAN,TRIM4#
sub73230-89161
sub73230-35070
sub73230-35350
main73230-89168-02i198808-199108
RED,TRIM3#
sub73230-35360
sub73230-89168
main73230-89168-02i198808-199108
W(CENTER BELT),RED,TRIM3#
sub73230-35360
sub73230-89168
main73230-89168-03i198808-199303
GRAY,TRIM1#
sub73230-35360
sub73230-89168
main73230-89168-03i198808-199303
W(CENTER BELT),GRAY,TRIM1#
sub73230-35360
sub73230-89168
main73230-89168-04i198808-199303
W(CENTER BELT),BLUE,TRIM8#
sub73230-35360
sub73230-89168
main73230-89168-04i198808-199303
BLUE,TRIM8#
sub73230-35360
sub73230-89168
main73230-89168-06i198808-199108
W(CENTER BELT),BROWN,TRIM4#
sub73230-35360
sub73230-89168
main73230-89168-06i198808-199108
BROWN,TRIM4#
sub73230-35360
sub73230-89168
main73230-89168-B0i199303-199311
GRAY,TRIM1#
sub73230-35360
sub73230-89168
main73230-89168-J0i199303-199311
BLUE,TRIM8#
sub73230-35360
sub73230-89168
main73230-89170-02i198808-199108
RED,TRIM3#
sub73230-89170
main73230-89170-03i198808-199109
GRAY,TRIM1#
sub73230-89170
main73230-89170-04i198808-199109
BLUE,TRIM8#
sub73230-89170
main73230-89170-06i198808-199108
BROWN,TRIM4#
sub73230-89170
main73230-89170-B0i199109-199408
MEDIUM GRAY,TRIM1#
sub73230-89170
main73230-89170-B0i199408-199501
MEDIUM GRAY,TRIM1#,TOKAIRIKA
sub73230-89170
main73230-89170-J0i199109-199408
MEDIUM BLUE,TRIM8#
sub73230-89170
main73230-89170-J0i199408-199501
MEDIUM BLUE,TRIM8#,TOKAIRIKA
sub73230-89170
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-0W020-B0i199408-199412
GRAY,TRIM1#,QSS
sub73240-0W020
main73240-0W020-J0i199408-199412
BLUE,TRIM8#,QSS
sub73240-0W020
main73240-35040-03i199008-199108
W(SPORT SEAT),GRAY,TRIM1#
sub73240-35040
main73240-35040-03i199008-199108
W(SEPARATE SEAT),GRAY,TRIM1#
sub73240-35040
main73240-35040-03i199008-199108
GRAY,TRIM1#
sub73240-35040
main73240-35040-04i199008-199108
W(SPORT SEAT),BLUE,TRIM8#
sub73240-35040
main73240-35040-04i199008-199108
W(SEPARATE SEAT),BLUE,TRIM8#
sub73240-35040
main73240-35040-04i199008-199108
BLUE,TRIM8#
sub73240-35040
main73240-35040-06i199008-199108
BROWN,TRIM4#
sub73240-35040
main73240-35040-06i199008-199108
W(SPORT SEAT),BROWN,TRIM4#
sub73240-35040
main73240-35040-06i199008-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub73240-35040
main73240-35070-B1i199108-199308
GRAY,TRIM1#
main73240-35070-E1i199108-199308
TAN,TRIM4#
main73240-35070-J1i199108-199308
BLUE,TRIM8#
main73240-35160-B1i199308-199311
W(SPORT SEAT),MEDIUM GRAY,TRIM1#
sub73240-35161
main73240-35160-B1i199308-199311
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub73240-35161
main73240-35160-B1i199308-199311
MEDIUM GRAY,TRIM1#
sub73240-35161
main73240-35160-J1i199308-199311
MEDIUM BLUE,TRIM8#
sub73240-35161
main73240-35160-J1i199308-199311
W(SPORT SEAT),MEDIUM BLUE,TRIM8#
sub73240-35161
main73240-35160-J1i199308-199311
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub73240-35161
main73240-35161-B1i199311-199501
W(SPORT SEAT),MEDIUM GRAY,TRIM1#
sub73240-35161
main73240-35161-B1i199311-199501
MEDIUM GRAY,TRIM1#
sub73240-35161
main73240-35161-B1i199311-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub73240-35161
main73240-35161-J1i199311-199501
MEDIUM BLUE,TRIM8#
sub73240-35161
main73240-35161-J1i199311-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub73240-35161
main73240-35161-J1i199311-199501
W(SPORT SEAT),MEDIUM BLUE,TRIM8#
sub73240-35161
main73240-35170-B0i199408-199501
MEDIUM GRAY,TRIM1#,TOKAIRIKA
sub73240-35170
main73240-35170-B0i199308-199501
MEDIUM GRAY,TRIM1#
sub73240-35170
main73240-35170-B0i199308-199501
W(CENTER BELT),MEDIUM GRAY,TRIM1#
sub73240-35170
main73240-35170-J0i199408-199501
MEDIUM BLUE,TRIM8#,TOKAIRIKA
sub73240-35170
main73240-35170-J0i199308-199501
W(CENTER BELT),MEDIUM BLUE,TRIM8#
sub73240-35170
main73240-35170-J0i199308-199501
MEDIUM BLUE,TRIM8#
sub73240-35170
main73240-35180-B0i199308-199311
GRAY,TRIM1#
sub73240-35181
main73240-35180-E1i199308-199311
OAK,TRIM4#
sub73240-35181
main73240-35180-J0i199308-199311
BLUE,TRIM8#
sub73240-35181
main73240-35181-B0i199311-199410
GRAY,TRIM1#
main73240-35181-E1i199311-199410
OAK,TRIM4#
main73240-35181-J0i199311-199410
BLUE,TRIM8#
main73240-35370-B0i199410-199511
GRAY,TRIM1#
main73240-35370-E0i199410-199511
OAK,TRIM4#
main73240-35370-J0i199410-199511
BLUE,TRIM8#
main73240-89153-02i198808-199108
W(SEPARATE SEAT),RED,TRIM3#
sub73240-89153
main73240-89153-02i198808-199108
RED,TRIM3#
sub73240-89153
main73240-89153-02i198808-199108
W(SPORT SEAT),RED,TRIM3#
sub73240-89153
main73240-89153-03i198808-199008
W(SEPARATE SEAT),GRAY,TRIM1#
sub73240-89153
main73240-89153-03i198808-199008
GRAY,TRIM1#
sub73240-89153
main73240-89153-03i198808-199008
W(SPORT SEAT),GRAY,TRIM1#
sub73240-89153
main73240-89153-04i198808-199008
W(SPORT SEAT),BLUE,TRIM8#
sub73240-89153
main73240-89153-04i198808-199008
BLUE,TRIM8#
sub73240-89153
main73240-89153-04i198808-199008
W(SEPARATE SEAT),BLUE,TRIM8#
sub73240-89153
main73240-89153-06i198808-199008
W(SEPARATE SEAT),BROWN,TRIM4#
sub73240-89153
main73240-89153-06i198808-199008
W(SPORT SEAT),BROWN,TRIM4#
sub73240-89153
main73240-89153-06i198808-199008
BROWN,TRIM4#
sub73240-89153
main73240-89153-B1i199108-199308
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub73240-89153
main73240-89153-B1i199108-199308
MEDIUM GRAY,TRIM1#
sub73240-89153
main73240-89153-B1i199108-199308
W(SPORT SEAT),MEDIUM GRAY,TRIM1#
sub73240-89153
main73240-89153-E1i199108-199308
TAN,TRIM4#
sub73240-89153
main73240-89153-J1i199108-199308
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub73240-89153
main73240-89153-J1i199108-199308
MEDIUM BLUE,TRIM8#
sub73240-89153
main73240-89153-J1i199108-199308
W(SPORT SEAT),MEDIUM BLUE,TRIM8#
sub73240-89153
main73240-89155-02i199101-199108
W(CENTER BELT),RED,TRIM3#
sub73240-89155
main73240-89155-02i198808-199108
RED,TRIM3#
sub73240-89155
main73240-89155-03i199101-199109
W(CENTER BELT),GRAY,TRIM1#
sub73240-89155
main73240-89155-03i198808-199109
GRAY,TRIM1#
sub73240-89155
main73240-89155-04i199101-199109
W(CENTER BELT),BLUE,TRIM8#
sub73240-89155
main73240-89155-04i198808-199109
BLUE,TRIM8#
sub73240-89155
main73240-89155-06i198808-199108
BROWN,TRIM4#
sub73240-89155
main73240-89155-06i199101-199108
W(CENTER BELT),BROWN,TRIM4#
sub73240-89155
main73240-89155-B0i199109-199308
W(CENTER BELT),MEDIUM GRAY,TRIM1#
sub73240-89155
main73240-89155-B0i199109-199308
MEDIUM GRAY,TRIM1#
sub73240-89155
main73240-89155-J0i199109-199308
W(CENTER BELT),MEDIUM BLUE,TRIM8#
sub73240-89155
main73240-89155-J0i199109-199308
MEDIUM BLUE,TRIM8#
sub73240-89155
main73240-89163-02i198808-199101
W(CENTER BELT),RED,TRIM3#
sub73240-89163
main73240-89163-02i198808-199101
RED,TRIM3#
sub73240-89163
main73240-89163-03i198808-199101
W(CENTER BELT),GRAY,TRIM1#
sub73240-89163
main73240-89163-03i198808-199101
GRAY,TRIM1#
sub73240-89163
main73240-89163-04i198808-199101
W(CENTER BELT),BLUE,TRIM8#
sub73240-89163
main73240-89163-04i198808-199101
BLUE,TRIM8#
sub73240-89163
main73240-89163-06i198808-199101
W(CENTER BELT),BROWN,TRIM4#
sub73240-89163
main73240-89163-06i198808-199101
BROWN,TRIM4#
sub73240-89163

6 parts on this diagram · 3 diagrams in section

Toyota 4-RUNNER TRUCK (JPP) SEAT BELT — Parts Diagram | EPC Data
