Toyota 4-RUNNER TRUCK (JPP) — ROOF HEADLINING & SILENCER PAD

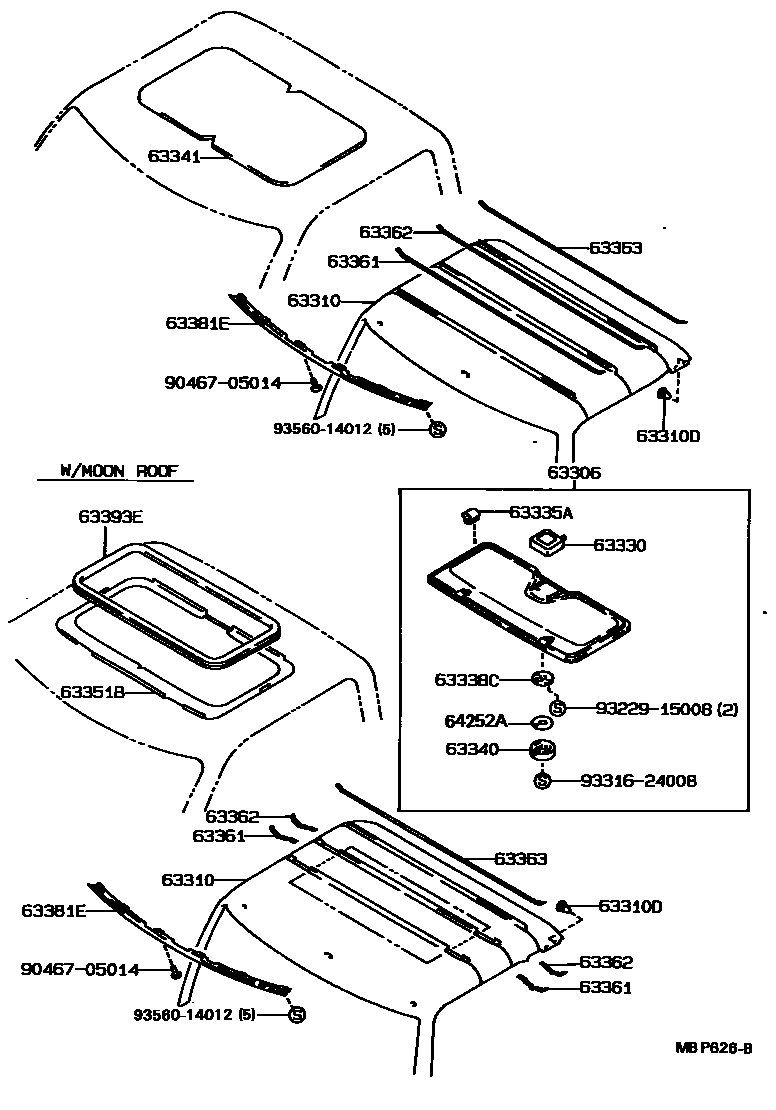

Parts diagram
63306TRIM SUB-ASSY, SUNSHADE
main63306-35010-B0i199108-199408
GRAY,TRIM1#
main63306-35010-J0i199108-199408
BLUE,TRIM8#
main63306-35030-B0i199408-199501
GRAY,TRIM1#
main63306-35030-J0i199408-199501
BLUE,TRIM8#
main63306-89102-02i198808-199108
RED,TRIM3#
sub63306-35010
main63306-89102-03i198808-199108
GRAY,TRIM1#
sub63306-35010
main63306-89102-04i198808-199108
BLUE,TRIM8#
sub63306-35010
main63306-89102-06i198808-199108
BROWN,TRIM4#
sub63306-35010
63310HEADLINING ASSY, ROOF
main63311-35060-B1i199408-199511
GRAY,TRIM1#
main63311-35060-E1i199408-199511
OAK,TRIM4#
main63311-35060-J1i199408-199511
BLUE,TRIM8#
main63311-35070-B1i199408-199511
GRAY,TRIM1#
main63311-35070-B1i199408-199511
W(MAP LAMP),GRAY,TRIM1#
main63311-35070-E1i199408-199511
W(MAP LAMP),OAK,TRIM4#
main63311-35070-E1i199408-199511
OAK,TRIM4#
main63311-35070-J1i199408-199511
BLUE,TRIM8#
main63311-35070-J1i199408-199511
W(MAP LAMP),BLUE,TRIM8#
main63311-35090-B1i199408-199511
W(MOON ROOF),GRAY,TRIM1#
main63311-35090-B1i199408-199511
W(MOON ROOF & MAP LAMP),GRAY,TRIM1#
main63311-35090-E1i199408-199511
W(MOON ROOF),OAK,TRIM4#
main63311-35090-E1i199408-199511
W(MOON ROOF & MAP LAMP),OAK,TRIM4#
main63311-35090-J1i199408-199511
W(MOON ROOF),BLUE,TRIM8#
main63311-35090-J1i199408-199511
W(MOON ROOF & MAP LAMP),BLUE,TRIM8#
main63311-89123-02i198808-199108
RED,TRIM3#
sub63311-89123
main63311-89123-03i198808-199109
GRAY,TRIM1#
sub63311-89123
main63311-89123-04i198808-199108
BLUE,TRIM8#
sub63311-89123
main63311-89123-06i198808-199108
BROWN,TRIM4#
sub63311-89123
main63311-89123-B0i199109-199501
SLATE GRAY,TRIM1#
sub63311-89123
main63311-89123-J1i199108-199501
LIGHT BLUE,TRIM8#
sub63311-89123
main63311-89125-02i198808-199008
W(MOON ROOF),RED,TRIM3#
main63311-89125-03i198808-199008
W(MOON ROOF),GRAY,TRIM1#
main63311-89125-04i198808-199008
W(MOON ROOF),BLUE,TRIM8#
main63311-89125-06i198808-199008
W(MOON ROOF),BROWN,TRIM4#
main63311-89128-02i198808-199108
RED,TRIM3#
sub63311-89128
main63311-89128-03i198808-199303
GRAY,TRIM1#
sub63311-89128
main63311-89128-04i198808-199108
BLUE,TRIM8#
sub63311-89128
main63311-89128-06i198808-199108
BROWN,TRIM4#
sub63311-89128
main63311-89128-B0i199303-199501
GRAY,TRIM1#
sub63311-89128
main63311-89128-J1i199108-199501
BLUE,TRIM8#
sub63311-89128
main63311-89129-02i198808-199108
W(MOON ROOF),RED,TRIM3#
sub63311-89129
main63311-89129-03i198808-199501
W(MOON ROOF),GRAY,TRIM1#
sub63311-89129
main63311-89129-04i198808-199108
W(MOON ROOF),BLUE,TRIM8#
sub63311-89129
main63311-89129-06i198808-199108
W(MOON ROOF),BROWN,TRIM4#
sub63311-89129
main63311-89129-J1i199108-199501
W(MOON ROOF),BLUE,TRIM8#
sub63311-89129
main63311-89132-02i198904-199108
RED,TRIM3#
main63311-89132-03i198904-199408
GRAY,TRIM1#
main63311-89132-04i198904-199108
BLUE,TRIM8#
main63311-89132-06i198904-199108
BROWN,TRIM4#
main63311-89132-E0i199108-199308
TAN,TRIM4#
main63311-89132-E1i199308-199408
OAK,TRIM4#
main63311-89132-J0i199108-199408
BLUE,TRIM8#
main63311-89133-02i198904-199108
RED,TRIM3#
main63311-89133-02i198904-199108
W(MAP LAMP),RED,TRIM3#
main63311-89133-03i198904-199408
GRAY,TRIM1#
main63311-89133-03i198904-199408
W(MAP LAMP),GRAY,TRIM1#
main63311-89133-04i198904-199108
W(MAP LAMP),BLUE,TRIM8#
main63311-89133-04i198904-199108
BLUE,TRIM8#
main63311-89133-06i198904-199108
BROWN,TRIM4#
main63311-89133-06i198904-199108
W(MAP LAMP),BROWN,TRIM4#
main63311-89133-E0i199108-199308
W(MAP LAMP),TAN,TRIM4#
main63311-89133-E0i199108-199308
TAN,TRIM4#
main63311-89133-E1i199308-199408
W(MAP LAMP),OAK,TRIM4#
main63311-89133-E1i199308-199408
OAK,TRIM4#
main63311-89133-J0i199108-199408
BLUE,TRIM8#
main63311-89133-J0i199108-199408
W(MAP LAMP),BLUE,TRIM8#
main63311-89135-02i198904-199108
W(MOON ROOF & MAP LAMP),RED,TRIM3#
sub63311-89134
main63311-89135-02i198904-199108
W(MOON ROOF),RED,TRIM3#
sub63311-89134
main63311-89135-03i198904-199408
W(MOON ROOF),GRAY,TRIM1#
sub63311-89134
main63311-89135-03i198904-199408
W(MOON ROOF & MAP LAMP),GRAY,TRIM1#
sub63311-89134
main63311-89135-04i198904-199108
W(MOON ROOF & MAP LAMP),BLUE,TRIM8#
sub63311-89134
main63311-89135-04i198904-199108
W(MOON ROOF),BLUE,TRIM8#
sub63311-89134
main63311-89135-06i198904-199108
W(MOON ROOF),BROWN,TRIM4#
sub63311-89134
main63311-89135-06i198904-199108
W(MOON ROOF & MAP LAMP),BROWN,TRIM4#
sub63311-89134
main63311-89135-E0i199108-199308
W(MOON ROOF & MAP LAMP),TAN,TRIM4#
sub63311-89134
main63311-89135-E0i199108-199308
W(MOON ROOF),TAN,TRIM4#
sub63311-89134
main63311-89135-E1i199308-199408
W(MOON ROOF & MAP LAMP),OAK,TRIM4#
sub63311-89134
main63311-89135-E1i199308-199408
W(MOON ROOF),OAK,TRIM4#
sub63311-89134
main63311-89135-J0i199108-199408
W(MOON ROOF & MAP LAMP),BLUE,TRIM8#
sub63311-89134
main63311-89135-J0i199108-199408
W(MOON ROOF),BLUE,TRIM8#
sub63311-89134
63310DCLIP, ROOF HEADLINING
main90467-09110-02i198904-199108
RED,TRIM3#
sub90467-09110
main90467-09110-03i198904-199511
GRAY,TRIM1#
sub90467-09110
main90467-09110-04i198904-199108
BLUE,TRIM8#
sub90467-09110
main90467-09110-06i198904-199108
BROWN,TRIM4#
sub90467-09110
main90467-09110-E0i199108-199308
TAN,TRIM4#
sub90467-09110
main90467-09110-E1i199308-199511
OAK,TRIM4#
sub90467-09110
main90467-09110-J0i199108-199511
BLUE,TRIM8#
sub90467-09110
main90467-10044-02i198808-199108
RED,TRIM3#
sub90467-10044
main90467-10044-14i198808-198901
BLUE,TRIM8#
sub90467-10044
main90467-10044-16i198808-198901
BROWN,TRIM4#
sub90467-10044
main90467-10044-33i198808-198901
GRAY,TRIM1#
sub90467-10044
main90467-10044-B0i198901-199501
SLATE GRAY,TRIM1#
sub90467-10044
main90467-10044-E0i198901-199108
LIGHT BROWN,TRIM4#
sub90467-10044
main90467-10044-J0i198901-199108
LIGHT BLUE,TRIM8#
sub90467-10044
main90467-10044-J1i199108-199501
LIGHT BLUE,TRIM8#
sub90467-10044
63330LOCK ASSY, SUNSHADE TRIM
main63330-16010i199408-199501
main63330-89101i198808-199408
63335ACUSHION, SUNSHADE TRIM, NO.1
main63335-35010i199108-199501
FRONT
main63335-35020i199108-199501
REAR
main63335-89102i198809-199108
63338CSTOPPER, SUNSHADE LOCK, NO.2
main63338-12010i198808-199501
63340HANDLE ASSY, SUNSHADE TRIM LOCK
main63340-12010-02i198808-199108
RED,TRIM3#
sub63340-12010
main63340-12010-04i198808-199108
BLUE,TRIM8#
sub63340-12010
main63340-12010-06i198808-199108
BROWN,TRIM4#
sub63340-12010
main63340-12010-23i198808-199408
GRAY,TRIM1#
sub63340-12010
main63340-12010-J0i199108-199408
BLUE,TRIM8#
sub63340-12010
main64251-16010-B1i199408-199501
GRAY,TRIM1#
sub64251-16010
main64251-16010-J0i199408-199501
BLUE,TRIM8#
sub64251-16010
63341PAD, ROOF SILENCER, NO.1
main63341-35050i199411-199511
sub63341-22H92
main63341-89116i198808-199408
sub63341-22H92
main63341-89121i198808-199501
main63341-89122i198904-199411
sub63341-22H92
63351BPAD, ROOF HEADLINING
main63351-89107i198808-199501
63361SUPPORT, ROOF HEADLINING, NO.1
main63361-89113i198808-199501
W(MOON ROOF)
main63361-89115i198808-198812
main63361-89116i198808-199501
63362SUPPORT, ROOF HEADLINING, NO.2
main63361-89113i198808-199501
W(MOON ROOF)
main63361-89115i198808-199501
main63361-89123i198808-199501
63363SUPPORT, ROOF HEADLINING, NO.3
main63361-89115i198808-199501
main63361-89123i198808-199501
63381ERETAINER, ROOF HEADLINING TRIM, FRONT
main63381-89104i198808-199501
63393ETRIM, ROOF HEADLINING
main63393-89104-02i198808-199108
RED,TRIM3#
sub63393-89104
sub63393-89106
main63393-89104-04i198808-199108
BLUE,TRIM8#
sub63393-89104
sub63393-89106
main63393-89104-06i198808-199108
BROWN,TRIM4#
sub63393-89104
sub63393-89106
main63393-89104-23i198808-199501
GRAY,TRIM1#
sub63393-89104
sub63393-89106
main63393-89104-J0i199108-199501
BLUE,TRIM8#
sub63393-89104
sub63393-89106
64252ASPACER, SUNSHADE TRIM LOCK
main64252-17010i198808-199408
9046705014
main90467-05014
9322915008
main93229-15008
9331624008
main93316-24008
9356014012
main93560-14012

19 parts on this diagram · 3 diagrams in section
