Toyota 4-RUNNER TRUCK (JPP) — POWER STEERING TUBE

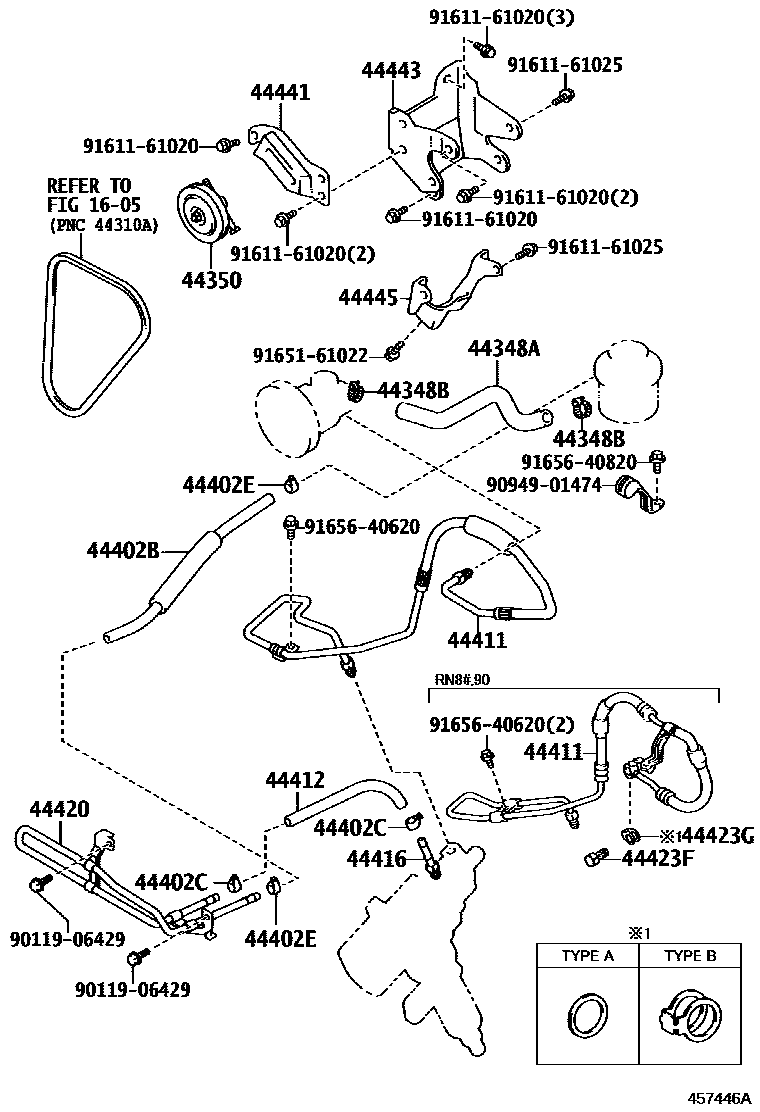

Parts diagram
1605
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
main44348-35100i198808-199501
sub44348-35101
44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
main90460-26001i198808-199404
main90467-21005i199404-199501
sub90467-21010
44350PULLEY ASSY, POWER STEERING IDLE
main44350-35010i198808-199501
44402BHOSE, POWER STEERING OIL COOLER OUTLET
main90447-18039i198808-199501
44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE
main90460-01001i198808-199404
main90467-16008i199404-199501
sub90467-16019
44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE
main90460-01001i198808-199404
main90467-16008i199404-199511
sub90467-16019
44411HOSE, PRESSURE FEED
main44411-35240i198808-199008
main44411-35250i198808-199501
main44411-35290i198904-199108
main44411-35340i198908-199511
main44411-35350i198908-199501
44412HOSE, RETURN
main44412-35090i198904-199511
sub44412-35091
main44412-35130i198908-199108
W(*66)
main44412-35140i199108-199501
W(*66)
main44412-35150i199108-199501
W(*66)
main90445-18079i198808-199501
sub90445-18137
main90445-18138i198808-199501
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
main44416-35020i198904-199511
main44416-35070i198808-199501
main44416-35080i198808-199501
44420COOLER ASSY, OIL
main44420-35040i198808-199501
44423FBOLT, UNION
main90401-16008i198908-199404
main90401-16008i198808-199308
*16-1.5PX26-12
main90401-16008i199108-199308
*16-1.5PX31.5-17
main90401-16008i199108-199404
NO.1
main90401-16008i199304-199404
W(*66)
main90401-16009i198908-199404
main90401-16009i199108-199308
*17-1.5PX26-12
main90401-16009i199108-199404
NO.2
main90401-16009i198908-199308
*16-1.5PX31.5-17
main90401-16009i199008-199308
W(*66),*16-1.5PX31.5-17
main90401-16009i199308-199404
W(*66),NO.2
main90401-16015i199404-199511
NO.2
main90401-16015i199404-199501
W(*66),NO.2
main90401-17001i199108-199308
*16-1.5PX31.5-17
main90401-17001i198808-199308
*17-1.5PX26-12
main90401-17001i199108-199308
W(*66),*17-1.5PX26-12
main90401-17001i199308-199501
NO.2
main90401-17001i199308-199501
NO.3
main90401-17001i199308-199501
W(*66),NO.3
main96341-41603i199404-199511
W(*66)
main96341-41603i199404-199511
NO.1
44423GGASKET, UNION BOLT
main44327-12010i199404-199511
TYPE B:REFER ILLUST.
main44327-12010i199404-199511
W(*66),TYPE B:REFER ILLUST.
main90430-16242i199008-199404
W(*66),TYPE A:REFER ILLUST.
main90430-16242i198808-199404
TYPE A:REFER ILLUST.
main90430-17005i199308-199501
NO.2
main90430-17005i198808-199308
OD=22,ID=17
44441BRACKET, PUMP, FRONT
main44441-20010i198808-199501
main44441-35020i198808-199511
44443BRACKET, PUMP
main44443-35020i198808-199501
44445BRACKET, PUMP, LOWER
main44445-35010i198808-199501
9011906429
main90119-06429
9094901474
main90949-01474
9161161020
main91611-61020
9161161025
main91611-61025
9165161022
main91651-61022
9165640620
main91656-40620
9165640820
main91656-40820

23 parts on this diagram · 4 diagrams in section
