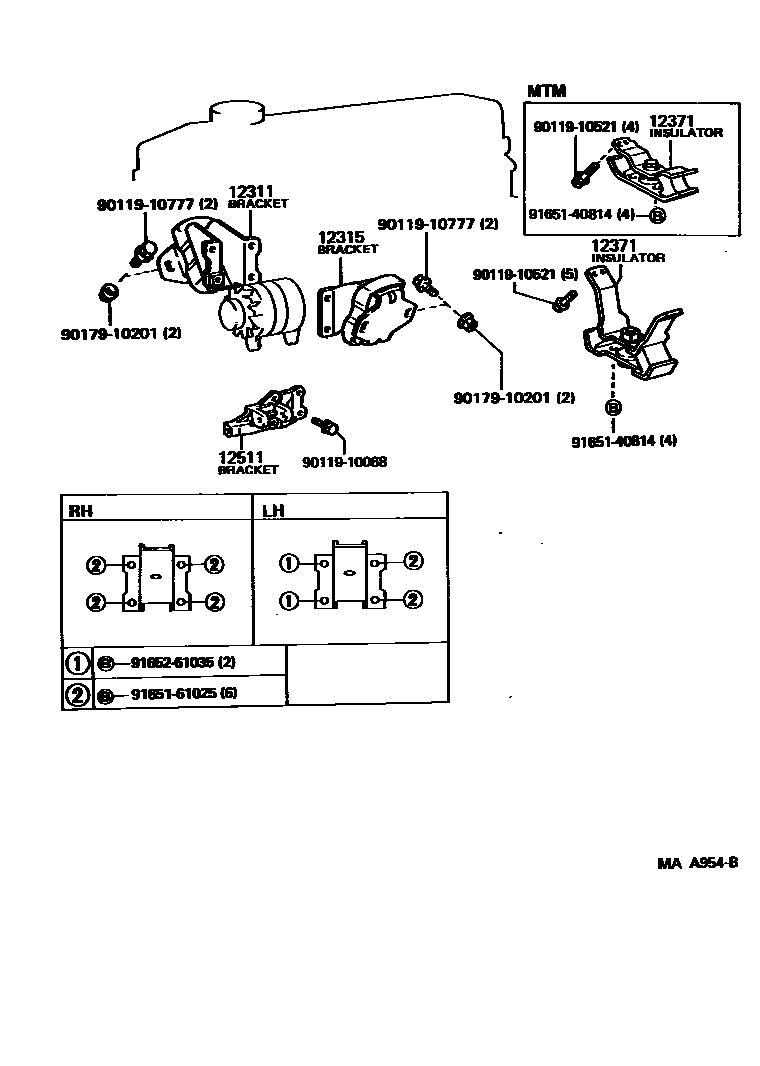

Toyota 4-RUNNER TRUCK (JPP) — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35190i22RE..RN10#,110,13#198808-199002

sub12301-35210

main12301-35210i22RE..RN10#,110,13#199002-199511

main12311-65020i3VZE..VZN10#,110,13#198808-199511

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35070i22RE..RN10#,110,13#198808-199002

sub12302-35120

main12302-35120i22RE..RN10#,110,13#199002-199511

main12315-65020i3VZE..VZN10#,110,13#198808-199511

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-35050i22RE..RN10#,110,13#..W198808-199501

main12371-35060i22RE..RN106,110,130..4FC..USA..CBU198904-199511

main12371-65010i22RE..RN10#,110,13#..G198808-199511

main12371-65020i3VZE..VZN105,110..4FC198808-198908

sub12371-65130

main12371-65050i3VZE..VZN105,110,13#..4FC198904-199112

sub12371-65130

main12371-65100i3VZE..VZN10#,110,13#..R199201-199511

main12371-65130i3VZE..VZN110,13#..4FC199112-199511

12511BRACKET, ALTERNATOR, NO.1

main12511-35030i22RE..RN10#,110,13#198808-199511

main12511-65010i3VZE..VZN10#,110,13#198808-199208

sub12511-65011

main12511-65011i3VZE..VZN100,110,13#199208-199511

9011910068

main90119-10068

9011910521

main90119-10521

9011910777

main90119-10777

9017910201

main90179-10201

9165140814

main91651-40814

9165161025

main91651-61025

9165261035

main91652-61035

11 parts on this diagram · 2 diagrams in section
