E
EPC Data

Toyota 4-RUNNER TRUCK (JPP) — FRONT DOOR VENTILATOR WINDOW

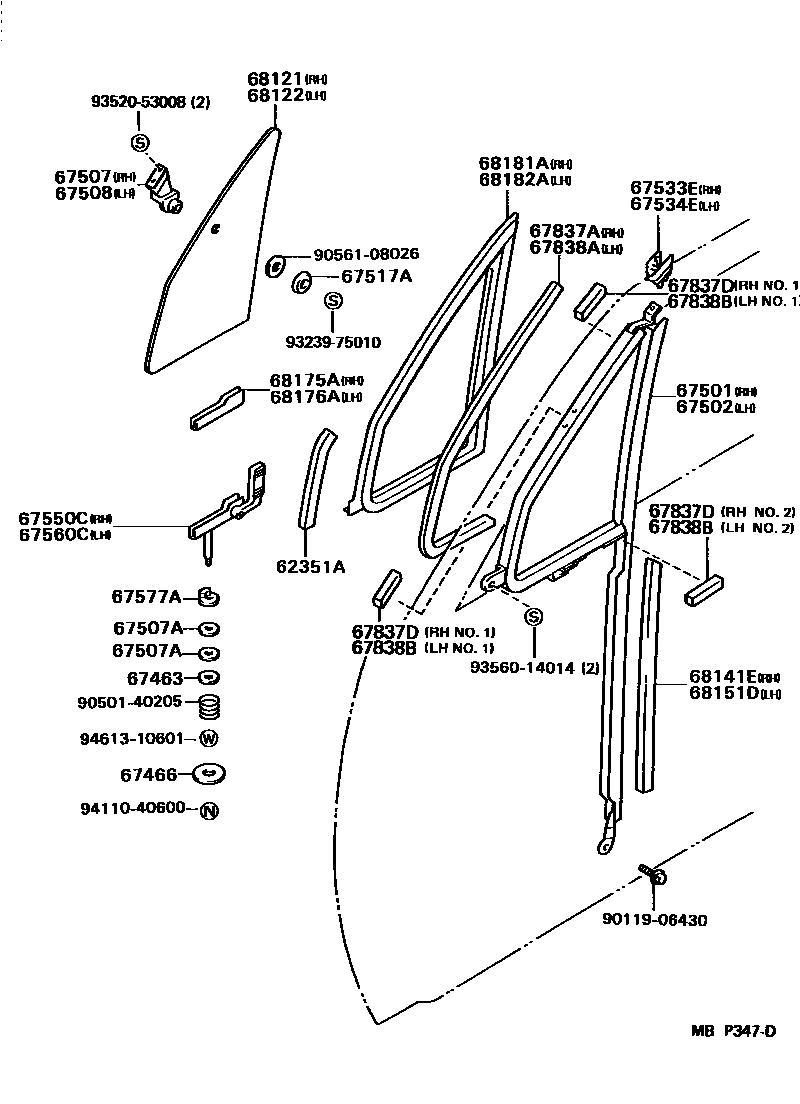

Parts diagram
62351ASEAL, FRONT DOOR WINDOW, WATER PROOF
main62351-89101i198808-199501
67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT
main67463-20011i198808-199501
67466WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)
main67466-89101i198808-199501
67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH
main67501-89106i198808-199501
main67501-89107i198904-199108
67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH
main67502-89106i198808-199501
main67502-89107i198904-199108
67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH
main67507-89104i198808-199501
67507AGASKET, VENT WINDOW PIVOT, UPPER NO.1
main90202-08003i198808-199501
67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH
main67508-89104i198808-199501
67517ARETAINER, VENT WINDOW UPPER PIVOT HINGE
main67517-89101i198808-199501
67533ESEAL, FRONT DOOR DIVISION BAR, RH
main67533-89106i198808-199501
main67533-89107i198904-199108
67534ESEAL, FRONT DOOR DIVISION BAR, LH
main67534-89102i198808-199501
main67534-89103i198904-199108
67550CFRAME ASSY, FRONT DOOR VENT WINDOW, RH
main67550-89104i198808-199501
main67550-89105i198904-199108
67560CFRAME ASSY, FRONT DOOR VENT WINDOW, LH
main67560-89104i198808-199501
main67560-89105i198904-199108
67577ASTOPER, FRONT DOOR BENT WINDOW OPENING, RH
main67577-89101i198808-199501
67837ASEAL, FRONT DOOR VENT, RH
main67837-89103i198808-199501
main67837-89104i198904-199108
67837DSEAL, FRONT DOOR VENT, RH
main67837-35010i199008-199501
NO.1
main67837-35020i199008-199501
NO.2
67838ASEAL, FRONT DOOR VENT, LH
main67837-89103i198808-199501
main67837-89104i198904-199108
67838BSEAL, FRONT DOOR VENT, LH
main67837-35010i199008-199501
NO.1
main67837-35020i199008-199501
NO.2
68121GLASS, VENT WINDOW, RH
main68121-89112i198808-199208
*TEM,T=4.0
sub68121-89113
main68121-89113i198808-199501
*TT,T=4.0,BLUE
main68121-89114i198808-199108
*TT,T=4.0,BRONZE
main68121-89115i198904-199108
*TEM,T=4.0
sub68121-89116
main68121-89116i198904-199108
*TT,T=4.0,BLUE
main68121-89117i198904-199108
*TT,T=4.0,BRONZE
68122GLASS, VENT WINDOW, LH
main68122-89110i198808-199208
*TEM,T=4.0
sub68122-89111
main68122-89111i198808-199501
*TT,T=4.0,BLUE
main68122-89112i198808-199108
*TT,T=4.0,BRONZE
main68122-89113i198904-199108
*TEM,T=4.0
sub68122-89114
main68122-89114i198904-199108
*TT,T=4.0,BLUE
main68122-89115i198904-199108
*TT,T=4.0,BRONZE
68141ERUN, FRONT DOOR GLASS, RH
main68141-89111i198808-199501
68151DRUN, FRONT DOOR GLASS, LH
main68141-89111i198810-199501
main68151-89103i198808-198810
sub68141-89111
68175AWEATHERSTRIP, FRONT DOOR VENT WINDOW GLASS, RH
main68175-89110i198808-199501
main68175-89111i198904-199108
68176AWEATHERSTRIP, DOOR VENT WINDOW GLASS, LH
main68176-89103i198808-199501
main68176-89104i198904-199108
68181AWEATHERSTRIP, FRONT DOOR VENT WINDOW, RH
main68181-89106i198808-198905
sub68181-89108
main68181-89107i198904-199108
main68181-89108i198905-199501
68182AWEATHERSTRIP, DOOR VENT WINDOW, LH
main68182-89106i198808-198905
sub68182-89108
main68182-89107i198904-199108
main68182-89108i198905-199501
9011906430
main90119-06430
9050140205
main90501-40205
9056108026
main90561-08026
9323975010
main93239-75010
9352053008
main93520-53008
9356014014
main93560-14014
9411040600
main94110-40600
9461310601
main94613-10601

34 parts on this diagram · 1 diagram in section
