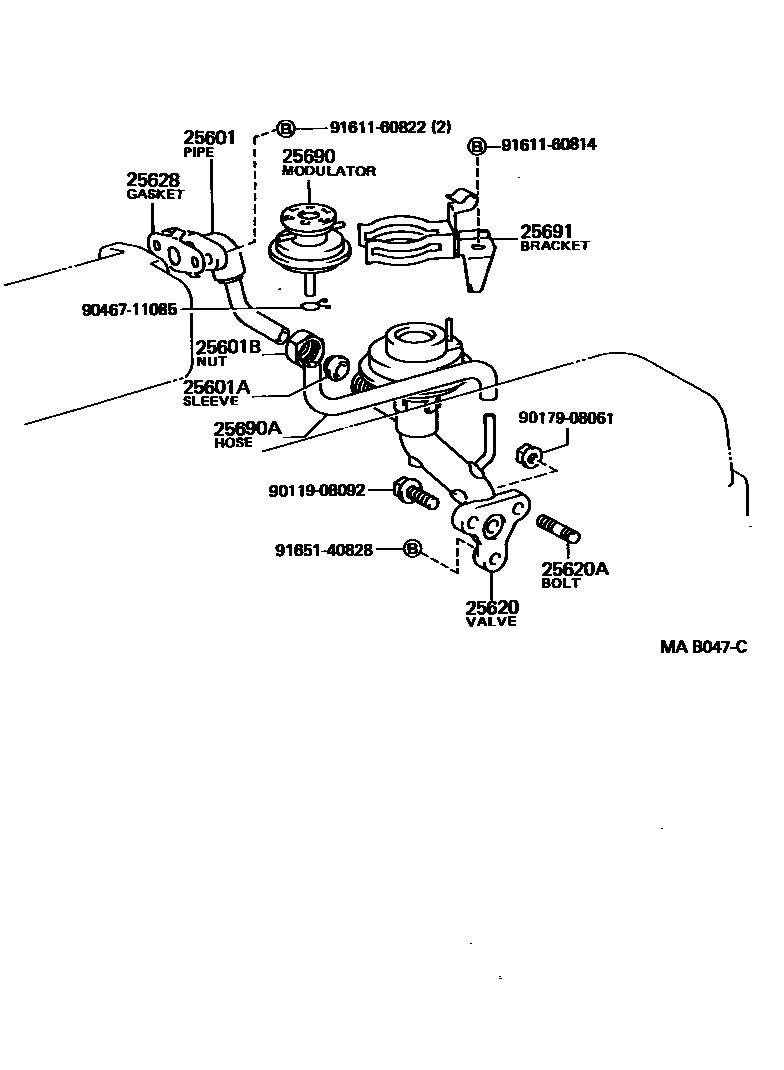

Toyota 4-RUNNER TRUCK (JPP) — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-35050i22RE..RN10#,110,13#198808-199308

main25601-35060i22RE..RN101..5F..USA;22RE..RN106,110,130..USA198808-199308

CALIFORNIA SPEC

main25601-35060i22RE..RN10#,110,13#199308-199511

main25611-65010i3VZE..VZN10#,110,13#198808-199511

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i3VZE..VZN10#,110,13#198808-199511

main90410-16044i22RE..RN10#,110,13#198808-199511

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22005i3VZE..VZN10#,110,13#198808-199511

main90402-22081i22RE..RN10#,110,13#198808-199511

25620VALVE ASSY, EGR

main25620-35100i22RE..RN130..G199208-199511

CALIFORNIA SPEC

main25620-35100i22RE..RN10#,110..5F198808-199501

main25620-35130i22RE..RN13#;22RE..RN10#,110..4FC198808-199511

main25620-65011i3VZE..VZN10#,110,13#198808-199511

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08207i22RE..RN10#,110,13#198808-199511

25628GASKET, EGR INLET

main25628-35020i22RE..RN10#,110,13#198808-199511

main25628-65010i3VZE..VZN10#,110,13#198808-199511

25690MODULATOR ASSY, EGR VACUUM

main25870-35120i22RE..RN10#,110..USA198808-199511

CALIFORNIA SPEC

main25870-35130i22RE..RN10#,110,13#198808-199511

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-35020i22RE..RN10#,110,13#198808-199511

25691BRACKET, EGR VACUUM MODULATOR

main25691-35030i22RE..RN10#,110,13#198808-199511

main25691-65010i3VZE..VZN10#,110,13#198808-199511

9011908092

main90119-08092

9017908061

main90179-08061

9046711085

main90467-11085

9161160814

main91611-60814

9161160822

main91611-60822

9165140828

main91651-40828

15 parts on this diagram · 2 diagrams in section
